• Model NO.：CY-HT-LA510
• Test Principle：Ion Current (Liming Current )
• Display Mode：4 Bits LED Display
• Power Supply：AC85 ~ 264V 50,60Hz
• Sampling Mode：Sample Gas Pass-in
• Install Mode：Frame Mount
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：110mmx190mmx235mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LA510 Test Principle Ion Current (Liming Current ) Display Mode 4 Bits LED Display Power Supply AC85 ~ 264V 50/60Hz Sampling Mode Sample Gas Pass-in Install Mode Frame Mount Warranty One Year Transport Package Wooden Case Specification 110mmx190mmx235mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

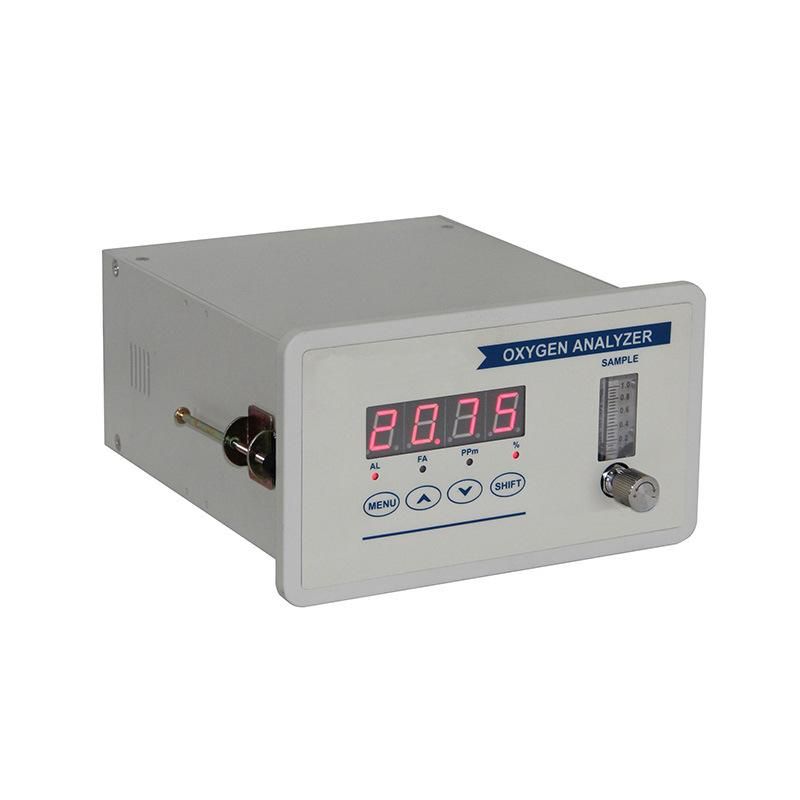

Hot sale Purity Oxygen Analyzer for oxygenerator
Application of Oxygen Analyzer:
It can be widely applied in the purity oxygen real-time analysis in the industries like large-scale air separation for purity oxygen, medical or industrial oxygenerator, smelting industry, medical treatment, petrochemical engineering, environment protection and electronic power, etc.

Instrument features of Oxygen Analyzer:
• No reference gas is needed and analyzer will not be influenced by oxygen purity in atmosphere;
• Imported limiting current sensor is adopted with a rapid response speed, high accuracy and long calibration cycle for features, etc;
• With the functions of compensation and sensor protection built in, the analyzer can be on power under 99.99% occasion without affecting the sensor's serving life.
• The frame mount installation mode makes it simple and convenient to install;
• With the function of temperature compensation, the amount of sample gas flow wouldn't bring any error to the sensor's measured results;
• Altitude measurement module can be expanded to avoid the influence from atmospheric pressure change on the measured accuracy;
• The measured accuracy of the whole range can be met by a random point calibrated, making the operation simple and convenient.

Technical parameters of Oxygen Analyzer:

Test principle	ion current (liming current )
Display mode	4 bits LED display
Test range	10.00% ~ 99.99% O2
Resolution	0.01%
Accuracy	≤±1%FS
Repeatability	≤±1%
Response time	T90≤30S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm)  0~5V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default)  or RS485
Power supply	AC85 ~ 264V 50/60Hz
Sampling mode	sample gas pass-in
Sample gas temperature	-10 ~ +50ºC
Sample gas flow	300 ~ 600ml/min
Sample gas pressure	0.05Mpa≤entrance displayed pressure≤0.35Mpa,steady pressure environment
Background gas	N2 and inactive gas
Appearance Size	110mm×190mm×235mm(H×W×D)
Install Hole Cut	90mm×170mm (H×W)
Serving life	type C>5 years,type D>3 years(under normal use)
Gas circuit port	Φ6 plastic pipe junction(sensor built-in)
Install mode	frame mount

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
