• Model NO.：CY-JY-EC200
• Test Principle：Micro-Fuel Cell
• Display Mode：128X64 Matrix DOT LCD
• Power Supply：AC100~240V 50,60Hz
• Sampling Mode：Sample Gas Pass-in
• Install Mode：Portable Mode
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：215mmx283mmx131mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-JY-EC200 Test Principle Micro-Fuel Cell Display Mode 128X64 Matrix DOT LCD Power Supply AC100~240V 50/60Hz Sampling Mode Sample Gas Pass-in Install Mode Portable Mode Warranty One Year Transport Package Wooden Case Specification 215mmx283mmx131mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

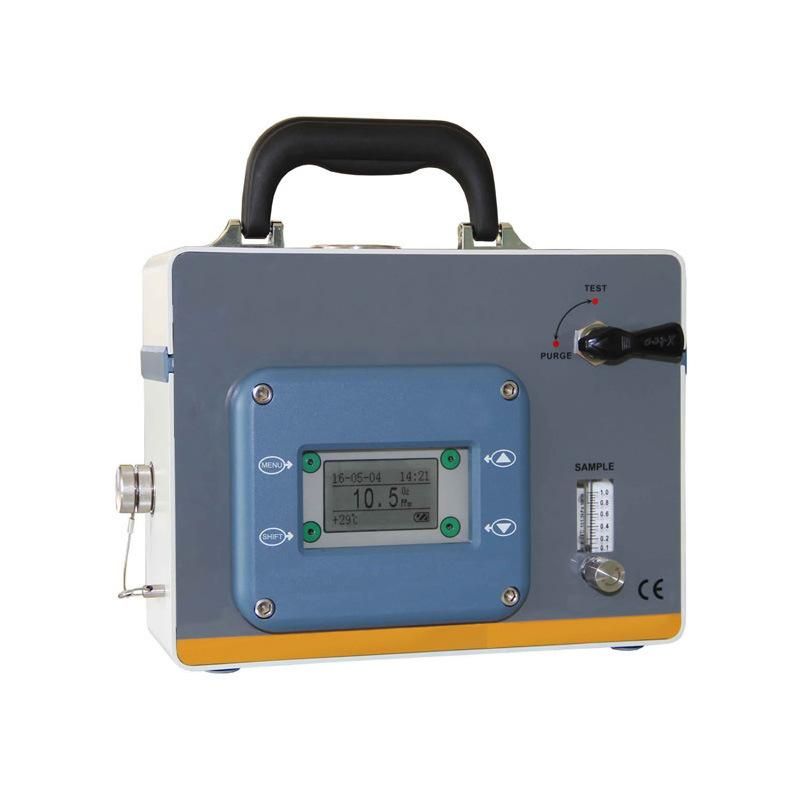

Portable Intrinsically-safe Explosion-proof Oxygen Analyzer
Application of Oxygen Analyzer:
It can be applied in the oxygen analysis in petrochemical industry, air separation, protection gas measurement in semiconductor industry, gas measurement in food production process, oxygen concentration measurement in hydrocarbon gas explosion-proof occasion, etc.

Instrument features of Oxygen Analyzer:
• The LCD display mode makes the display visual and the operation simple and convenient;
• Since the intrinsically-safe explosion-proof technology is a kind of weak-current technology, the use of intrinsically safe gauge could protect field engineers from electric shock;
• The imported micro-fuel cell oxygen sensor is with a rapid response speed, high accuracy, excellent linearity, long calibration cycle, weak-acid resistance and weak-alkali resistance for features;
• The auto-compensation function for temperature could reduce the error from temperature change on the measurement;
• Only one random point needs to be calibrated among the whole range, making the calibration simple and convenient;
• It is with simple operation, long serving life and easy to maintain for features;
• It can be continuously used for more than 20 days at one full charge.

Technical parameters of Oxygen Analyzer:

Test principle	micro-fuel cell
Display mode	128×64 matrix dot LCD
Test range	0 ~ 10/100/1000ppm, 0 ~ 25.00% O2  (different range optional: ordinary or trace)
Accuracy	0 ~ 1000ppm /1.00%/10.00% /25.00% ≤±1% FS 0 ~ 100ppm ≤±2% FS 0 ~ 10ppm ≤±5%FS
Repeatability	≤±1%
Response time	T90≤60S
Output port	charging port, USB port
Sample gas temperature	0 ~ 50ºC
Environment humidity	<80%RH
Sampling mode	sample gas pass-in
Sample gas flow	600 ~ 800ml/min
Sample gas pressure	0.05Mpa≤entrance displayed pressure≤0.35Mpa, steady pressure environment
Background gas	N2 or inactive gas, reducing gas and hydrocarbon mixed gas, etc
Serving life	>24 months (under normal use)
Explosion-proof level	Exib IIC T4
Weight of the analyzer	3.6Kg
Gas circuit port	NPT1/8 internal thread
Battery capacity	7.4V/4400mA
Charging source	AC100~240V 50/60Hz
Install mode	portable mode

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
