• Model NO.：CY-HJY-350-EX
• Display Mode：4-Digit High-Brightness LED Display
• Sampling Mode：Plug-in
• Test Principle：Capacitive , Ceramic Wet
• Computer Interfaces：RS232 (Default) or RS485
• Sample Gas Component：No Flammable Gas, No Strong Corrosive Gas
• Install Mode：Plug-in
• Transport Package：Wooden Case
• Specification：155mmx155mmx290mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HJY-350-EX Display Mode 4-Digit High-Brightness LED Display Sampling Mode Plug-in Test Principle Capacitive / Ceramic Wet Computer Interfaces RS232 (Default) or RS485 Sample Gas Component No Flammable Gas, No Strong Corrosive Gas Install Mode Plug-in Transport Package Wooden Case Specification 155mmx155mmx290mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

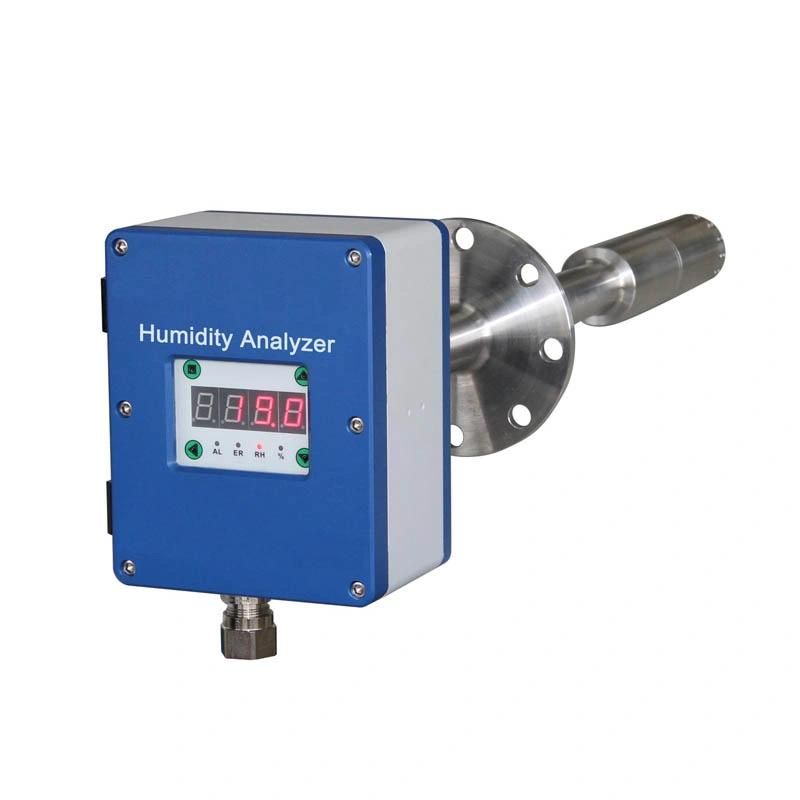

Integrated design Explosion-proof humidity analyzer for flue gas humidity measurement
Application of Explosion-proof humidity analyzer:
It is applicable to the measurement of the desulfurization and denitration flue gas humidity in the continuous continuous monitoring system of flue gas in the Exd IIB T6 environment of explosion-proof grade. It can also be used in medical research, tobacco companies, environmental testing, sewage treatment, petroleum and petrochemical, chemical plants, iron smelting. Humidity testing of factories, coal plants, garbage treatment plants, food processing, and safety protection of hazardous areas.
Remarks: If you encounter low temperature, high humidity and high dust environment, our company will provide you with reasonable flue gas humidity solution.

Instrument features of Explosion-proof humidity analyzer:
a. Integrated design, easy to install, reduce the impact of external interference on the measured value;
b. Original imported sensor can effectively guarantee the accuracy and service life of the instrument;
c. High-precision temperature automatic compensation to eliminate the influence of ambient temperature;
d. The extended function can be added to accurately measure the high temperature dew point value;
e. Two-stage filtration design to effectively filter dust and acidic liquids;
f. Probe 316F material, strong corrosion resistance;
g. Instrument housing protection class IP65;
h. Simple operation, long service life and easy maintenance;
i. Available in both absolute or relative humidity (please specify when ordering).

Technical parameters of Explosion-proof humidity analyzer:

Test principle	capacitive / ceramic wet
Display mode	4-digit high-brightness LED display
Measuring range	Absolute humidity: 0 ~ 40.0% VOL Relative humidity: 0 ~ 100% RH (You can only display one mode at the same time, please explain when ordering)
Resolution	0.1%
Measurement accuracy	<±1.5% FS
Repeatability	<±1%
Response time	T90<15S
Working temperature	Instrument: -10 ~ +50 °C, probe 0 ~ 170 °C
Sampling mode	plug-in
Analog output	4-20mA.DC (non-isolated output, load resistance less than 500 ohms) 2-way programmable dry contact passive alarm output, contact maximum capacity 220VAC/2A
Other interfaces	RS232 (default) or RS485
Power supply	AC220V±10% 50/60Hz, power consumption <15VA
Protection	316L probe, instrument housing protection class IP65
Explosion-proof grade	Exd IIB T6
Service life	instrument > 36 months, sensor > 24 months (under normal use conditions)
Sample gas component	no flammable gas, no strong corrosive gas
Probe length	regular 0.5m, 1.0m, 1.5m, other lengths can be customized (<1.8m)
Installation method	Plug-in, DN65 standard flange
