• Model NO.：(CL-6850)
• Range 2：Hypochlorous Acid (Hocl) :0-10.00 Mg,L(Ppm)
• Range 3：pH Value: 0-14pH, Temperature: 0-60c
• Accuracy 1：Free Chlorine: +-1% or +- 0.01 Mg,L
• Accuracy 2：Hypochlorous Acid (Hocl): +-1%+-0.01 Mg,L
• Accuracy 3：pH Value: +0.02pH, Temperature: +- 0.5c
• Temp. Comp. 1：Manual,Automatic pH Compensation Feature (0-14)
• Temp. Comp. 2：Temperature Compensation (0~60c)
• Electrode：Free Chlorine Sensor, pH Sensor
• Operation Temp.：0~60c
• Current Output：Isolation 4~20mA, (RS485 Optional)
• Control Output：on,off High Limit, Low Limit Relay
• Power：AC 110,220V+-10% 50,60Hz, DC 24V, DC 12V
• Working Environment：Ambient Temp. 0~50c, Relative Humidity<=90%
• Protection Grade：IP 65
• Transport Package：Carton
• Specification：96*96*115mm
• Trademark：JIRS
• Origin：China
• HS Code：9028901000
• Production Capacity：100sets,Week

Basic Info.

Model NO. (CL-6850) Range 2 Hypochlorous Acid (Hocl) :0-10.00 Mg/L(Ppm) Range 3 pH Value: 0-14pH, Temperature: 0-60c Accuracy 1 Free Chlorine: +-1% or +- 0.01 Mg/L Accuracy 2 Hypochlorous Acid (Hocl): +-1%+-0.01 Mg/L Accuracy 3 pH Value: +0.02pH, Temperature: +- 0.5c Temp. Comp. 1 Manual/Automatic pH Compensation Feature (0-14) Temp. Comp. 2 Temperature Compensation (0~60c) Electrode Free Chlorine Sensor, pH Sensor Operation Temp. 0~60c Current Output Isolation 4~20mA, (RS485 Optional) Control Output on/off High Limit, Low Limit Relay Power AC 110/220V+-10% 50/60Hz, DC 24V, DC 12V Working Environment Ambient Temp. 0~50c, Relative Humidity<=90% Protection Grade IP 65 Transport Package Carton Specification 96*96*115mm Trademark JIRS Origin China HS Code 9028901000 Production Capacity 100sets/Week

Product Description

Industrial online free chlorine, PH, HOCL and Temperature analyzer
CL-6850

Character & Application:1. Industrial online Free chlorine and HOCL, PH monitoring and controlling analyzer.2. Measure Free chlorine, Hypochlorous acid (HOCl), PH and Temperature value.3. Widely used in drinking water, bottling water, electricity, medicine, chemical, food, pulp &paper, swimming pool, water treatment industry.

Main Technique Specifications:

Model Function	CL-6850
Range	Free chlorine :0-20.00 mg/L(ppm) Hypochlorous acid (HOCl) :0-10.00 mg/L(ppm) PH value :0-14pH, Temperature: 0-60 ºC
Accuracy	Free chlorine: ±1% or ±0.01 mg/L, Hypochlorous acid (HOCl) : ±1% o ±0.01 mg/L, PH value: ±0.02pH, Temperature: ±0.5ºC
Temp. Comp.	Manual/automatic pH compensation feature(0-14) and temperature compensation(0~60ºC)
Electrode	Free chlorine Sensor, PH sensor
Display	LCD display
Operation Temp.	0~60ºC
Current output	isolation 4~20mA, (RS485 optional)
Control output	ON/OFF High limit, low limit relay
Power	AC 110/220V±10% 50/60Hz, DC 24V, DC 12v
Working environment	Ambient Temp. 0~50ºC, Relative Humidity ≤90%
Overall dimensions	96×96×115mm(H×W×D)
Hole size	91×91mm(H×W)
Installation Mode	Panel mounted(embedded)
Protection grade:	IP 65

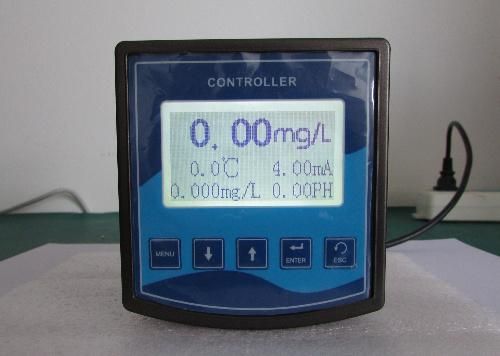

Controller picture:

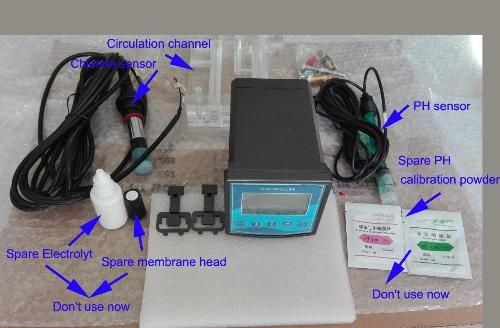

Full set picture:

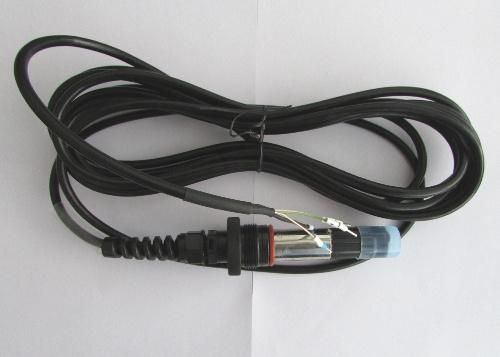

Free chlorine Sensor:

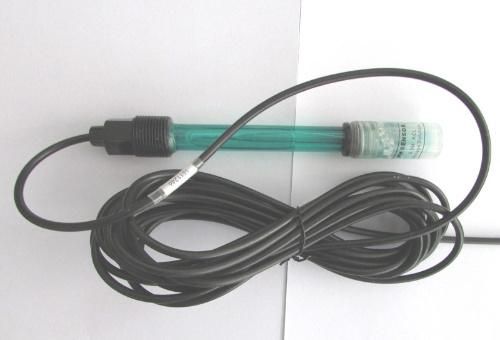

PH Sensor:

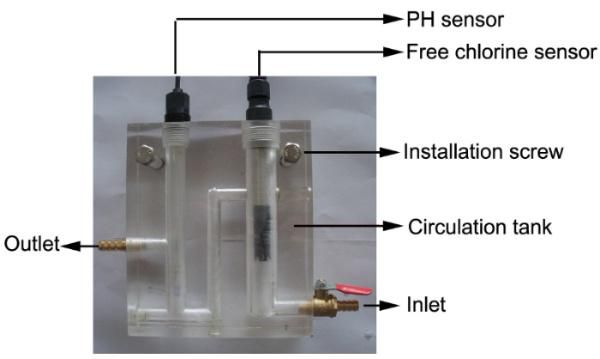

Free chlorine and PH Sensor installation drawing:
