• Model NO.：CY-HT-LH301
• Power Supply：12~32VDC ,100mA
• Test Principle：Capacitive , Ceramic Wet
• Sample Gas Temperature：0 ~ 170ºC
• Sampling Mode：Sample Gas Pass-in
• Install Mode：Rear Panel Mount(Gauge)
• Transport Package：Wooden Case
• Specification：155mmx155mmx290mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LH301 Power Supply 12~32VDC /100mA Test Principle Capacitive / Ceramic Wet Sample Gas Temperature 0 ~ 170ºC Sampling Mode Sample Gas Pass-in Install Mode Rear Panel Mount(Gauge) Transport Package Wooden Case Specification 155mmx155mmx290mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

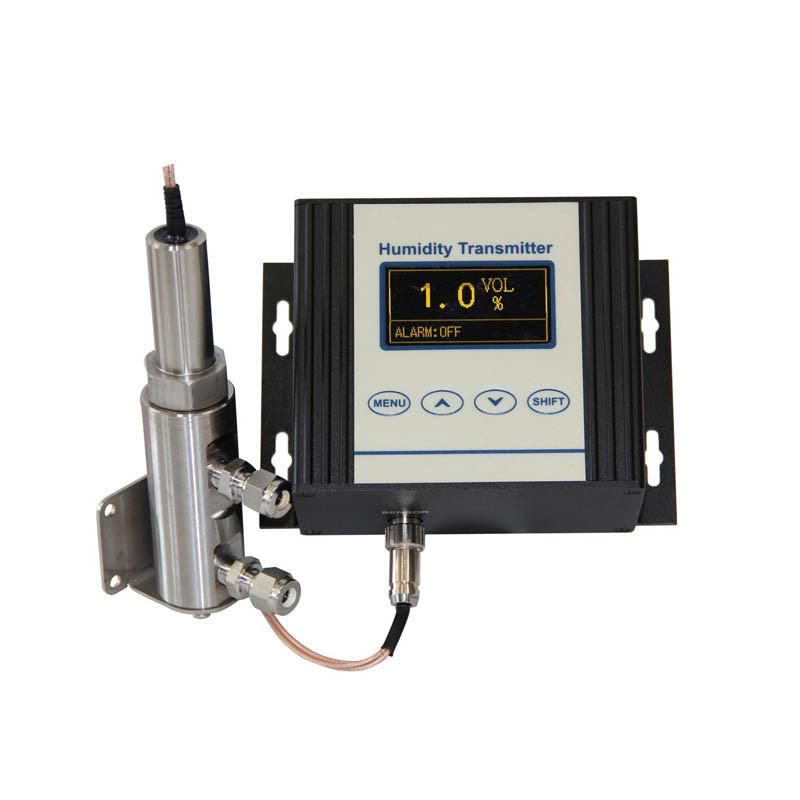

Capacity-resistance Flue Gas Humidity Transmitter
Application of Flue Gas Humidity Transmitter:
It can be widely applied in the humidity and dew point measurement and analysis in CEMS desulfurization and denitrification devices and power plant, etc.

Instrument features of Flue Gas Humidity Transmitter:
• The display modes of absolute humidity, relative humidity, high-temperature dew point and %Vol can be shifted freely;
• OLED auto-glowing display makes the display visual and the operation easy and convenient;
• The imported sensor chip could guarantee the accuracy and serving life of the transmitter;
• The function of built-in temperature compensation could reduce the influence from temperature change on the measured accuracy of humidity.

Technical parameters of Flue Gas Humidity Transmitter:

Test principle	capacity-resistance principle
Display mode	128×64 matrix dot OLED
Measurement range	high-temperature dew point: -20 ~ +100ºC  absolute humidity: 0 ~ 400g/m³  absolute humidity: 0 ~ 40.0%Vol relative humidity: 0 ~ 100%RH (only one mode can be displayed, so please indicate the message when ordering)
Accuracy	≤±1.5%FS
Resolution	high-temperature dew point :0.1ºC,Relative humidity and absolute humidity:0.1%
Repeatability	≤±1%
Response time	T90≤15S
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500  Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default)or RS485
Power supply	12~32VDC /100mA
Sample gas temperature	0 ~ 170ºC
Environment humidity	<80%RH
Sampling mode	sample gas pass-in
Sample gas composition	no flammable gas, no strongly corrosive gas, the dust amount less than 1mg/Nm3
Sampling port	Φ6 stainless steel cutting ferrule(316L)
Appearance Size	Gauge: 62mm×150mm×105mm(H×W×D)
Install size	133mm×48mm(W×D)
Serving life	>24 months(under normal use)
Install mode	rear panel mount(gauge)

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
