• Model NO.：CY-HT-LH311
• Display Mode：4 Bits LED Display
• Power Supply：AC100 ~ 240V 50,60Hz
• Test Principle：Resistance-Capacitive Principle
• Sample Gas Temperature：0 ~ 170ºC
• Sampling Mode：Sample Gas Pass-in
• Install Mode：Wall Mount
• Transport Package：Wooden Case
• Specification：110mmx220mmx250mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LH311 Display Mode 4 Bits LED Display Power Supply AC100 ~ 240V 50/60Hz Test Principle Resistance-Capacitive Principle Sample Gas Temperature 0 ~ 170ºC Sampling Mode Sample Gas Pass-in Install Mode Wall Mount Transport Package Wooden Case Specification 110mmx220mmx250mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

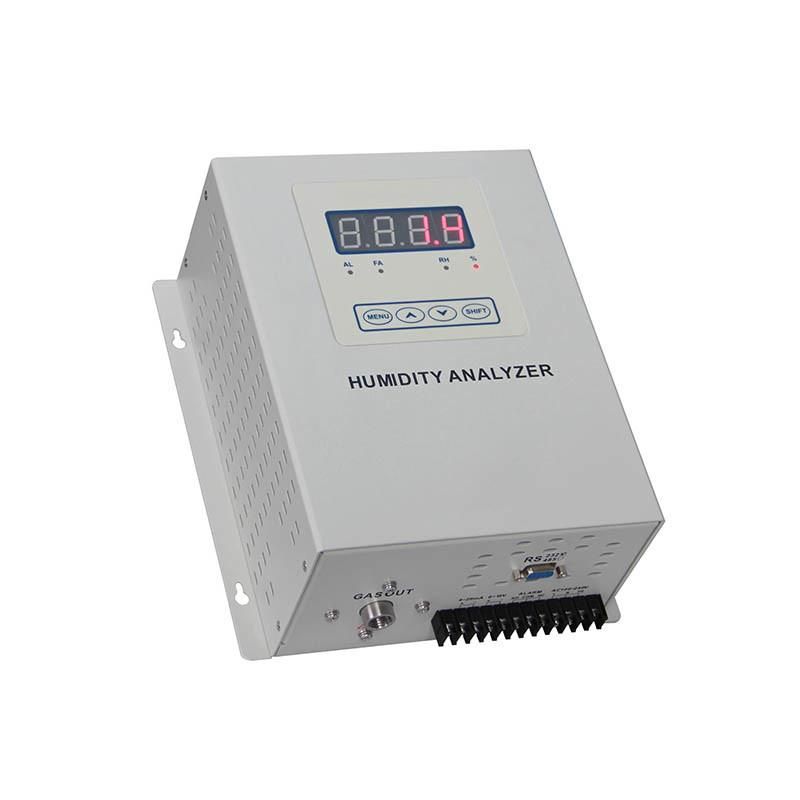

Wall mount Capacity-resistance Flue Gas Humidity Transmitter
Application of Flue Gas Humidity Transmitter:
It can be widely applied in the measurement and analysis of water vapor concentration in the flue gas before and after desulfurization and denitrification from heat-engine plant, chemical plant and iron and steel plant, etc.

Instrument features of Flue Gas Humidity Transmitter:
• The unique heat tracing design could efficiently prevent the sulfide from curdling;
• The internal cavity adopts 316F material with strong corrosive-resistance;
• Display modes of absolute humidity, relative humidity or high-temperature dew point can be provided (please indicate the mode when ordering);
• The imported sensor chip could efficiently guarantee the accuracy and serving life of the transmitter;
• Expanded function can be added to do an accurate measurement to the high-temperature dew point;
Wall mount mode is convenient for installation;
• It is with simple operation, long serving life and easy to maintain for features.

Technical parameters of Flue Gas Humidity Transmitter:

Test principle	resistance-capacitive principle
Display mode	4 bits LED display
Test range	absolute humidity :0 ~ 40%VOL  Relative humidity:0 ~ 100%RH  High-temperature dew point:-20 ~ +100ºC (only one mode can be displayed, so please indicate the message when ordering)
Accuracy	≤±1.5%FS
Repeatability	≤±1%
Response time	T90≤15S
• Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm)  0-10V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default) or RS485
Power supply	AC100 ~ 240V 50/60Hz
Sample gas temperature	0 ~ 170ºC
Sampling mode	sample gas pass-in
Gas circuit port	NPT 1/4 internal thread
Sample gas composition	no flammable gas, no strongly corrosive gas, the dust amount less than 1mg/Nm3
Appearance size	110mm×220mm×250mm(H×W×D)
Serving life	>24 months (under normal use)
Install mode	wall mount

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
