• Model NO.：CY-HT-LD200
• Display Mode：128X64 Matrix DOT LCD
• Repeatability：≤±1.5ºC
• Sampling Mode：Sample Gas Pass-in or Extraction
• Sample Gas Temperature：-10 ~ +50ºC
• Sample Gas Flow：2 ~ 4L,Min
• Install Mode：Wall Mount
• Transport Package：Wooden Case
• Specification：400mmx300mmx200mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LD200 Display Mode 128X64 Matrix DOT LCD Repeatability ≤±1.5ºC Sampling Mode Sample Gas Pass-in or Extraction Sample Gas Temperature -10 ~ +50ºC Sample Gas Flow 2 ~ 4L/Min Install Mode Wall Mount Transport Package Wooden Case Specification 400mmx300mmx200mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

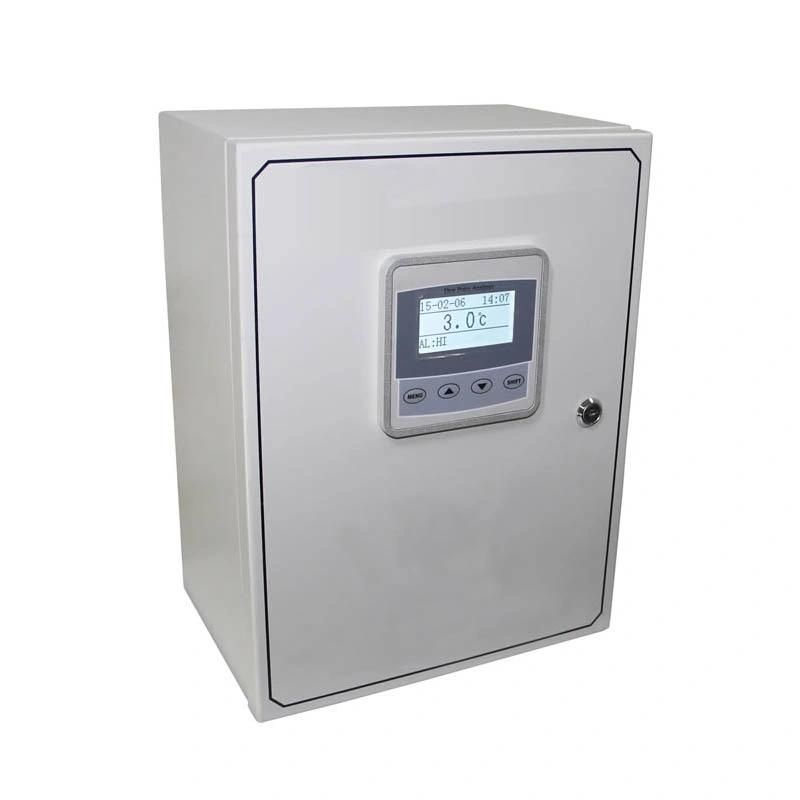

Advanced and Intelligent Wall-mount Dew Point Analyzer
Application of Dew Point Analyzer:
It can be widely applied in the online measurement of water concentration in the industries like petrochemical industry, natural gas, industrial gas industry, semiconductor industry, drying industry, food industry, electronic power industry, machine manufacturing industry, air separation industry, pharmacy, etc.

Instrument features of Dew Point Analyzer:
• It adopts imported capacitive dew point sensor, which has the characteristics of quick response, high sensitivity and good repeatability;
• With the function of data auto-storing, the interval of recording time can be set freely among the range of 1min~24h and the alarm point can be set freely, too;
• It can do one-way or two-way communication with the computer;
• It has a long calibration cycle, 2 years in usual.
• The wall mount mode makes it convenient to operate at scene and easy to maintain;
• Reverse blow function (optional) can be expanded to prevent the filter from being polluted for too long to influence the measurement of the oxygen concentration;
• The imported extraction pump is built in.

Technical parameters of Dew Point Analyzer:

Test principle	thin-film capacitor
Display mode	128×64 matrix dot LCD
Test range	basic type,-60 ~ +20ºC standard type,-80 ~ +20ºC expansive type,-100 ~ +20ºC
Accuracy	≤±1ºC(0 ~ -60ºC)   ≤±2ºC(below -60ºC)
Resolution	0.1ºC
Response time	-40→-10ºC5s(10s)     -10→-40ºC15s(240s)
Repeatability	≤±1.5ºC
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm)  0-5V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default)or RS485
Power supply	AC170 ~ 265V 50/60Hz
Working temperature	-10 ~ +50ºC
Sampling mode	sample gas pass-in or extraction
Sample gas flow	2 ~ 4L/min
Sample gas pressure	(without pump) 0.05MPa≤entrance displayed pressure≤ 0.35MPa
Sample gas pressure	(with pump) micro-positive pressure, micro-negative pressure or ordinary pressure
Background gas	H2, He, inactive gas and hydrocarbon, etc
Appearance Size	400mm×300mm×200mm(H×W×D)
Serving life	>4 years(under normal use)
Gas circuit port	NPT 1/8 internal thread
Install mode	wall mount
