• Model NO.：CY-HT-LC300
• Test Range：0 ~ 1000ppm,10.00% Co
• Communication Interface：RS232 (Default) or RS485
• Sampling Mode：Sample Gas Pass-in
• Sample Gas Temperature：0 ~ 50ºC
• Sample Gas Flow：400 ~ 800ml,Min
• Install Mode：Frame Mount
• Transport Package：Wooden Case
• Specification：133mmx268mmx300mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LC300 Test Range 0 ~ 1000ppm/10.00% Co Communication Interface RS232 (Default) or RS485 Sampling Mode Sample Gas Pass-in Sample Gas Temperature 0 ~ 50ºC Sample Gas Flow 400 ~ 800ml/Min Install Mode Frame Mount Transport Package Wooden Case Specification 133mmx268mmx300mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

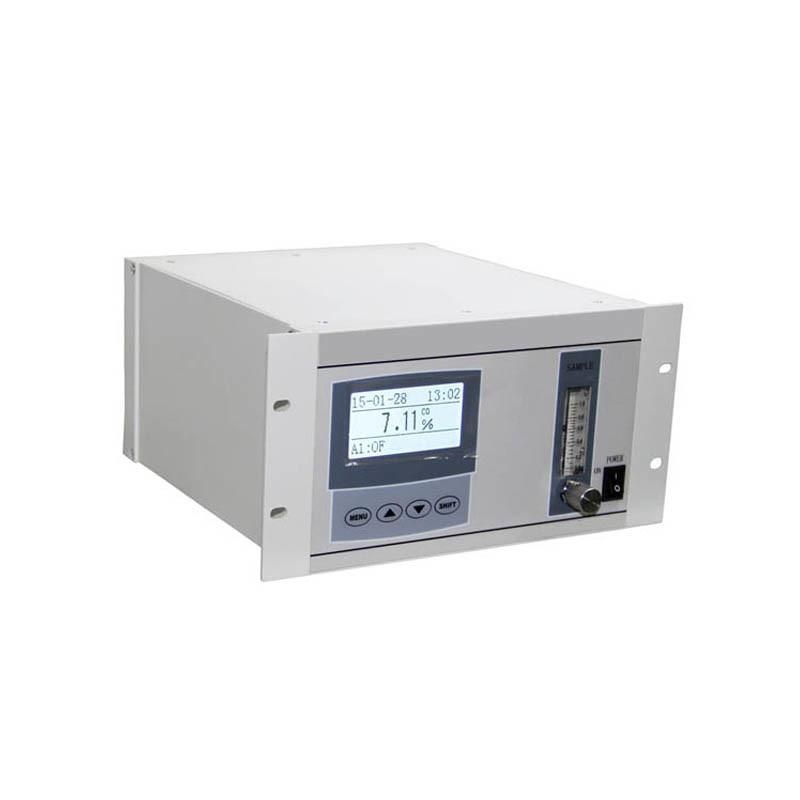

High measurement accuracy infrared Carbon Monoxide CO Analyzer
The instrument is designed based on the principle that the gas has a selective absorption of infrared light. It has the characteristics of small size, fast response, high accuracy and easy to carry. It can continuously measure the concentration of CO gas in indoor and outdoor ambient air.

Application of infrared Carbon Monoxide CO Analyzer:
The monitoring on carbon monoxide allowance under combustion condition.

Instrument features of infrared Carbon Monoxide CO Analyzer:
1. Friendly communication menu makes the operation visual and simple;
2. Long calibration interval cycle, high accuracy and reliable stability;
3.It is of good selectivity to the tested gas;
4.The imported electrochemistry sensor is with relatively rare error, a rapid response speed,  high accuracy and long calibration cycle for features;
5.The compensation system for temperature can eliminate the influence from environment temperature;
6.With the standard RS232(default)or RS485 communication port carried by it,the analyzer can do bidirectional communication with the computer;

Technical parameters of infrared Carbon Monoxide CO Analyzer:

Test principle	Infrared principle
Display mode	128×64 matrix dot LCD
Test range	0 ~ 1000ppm/10.00% CO
Accuracy	≤±1.2%FS
Repeatability	≤±1%
Error	<±1.2%FS
Response time	T90≤60S
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm).  0-10V.DC(non-isolated output, loaded resistance higher than 10k Ohm). 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)  .
Communication port	RS232(default)or RS485
Power supply	AC170 ~ 264V  50/60Hz
Environment temperature	-10ºC ~ +40ºC
Environment humidity	<80%RH
Sampling mode	sample gas pass-in
Sample gas temperature	0 ~ 50ºC
Sample gas flow	400 ~ 800ml/min
Sample gas pressure	0.05Mpa≤entrance displayed pressure≤0.35Mpa, steady pressure environment
Appearance Size	133mm×268mm×300mm(H×W×D)
Install Hole Cut	135mm×228mm(H×W)
Serving life	>24 months (under normal use)
Gas circuit port	NPT 1/8 internal thread
Install mode	frame mount

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
