Analysis Instrument

Pid Control Proportional Valve Oxygen Concentration Controller

Zhengzhou CY Scientific Instrument Co., Ltd.
  • Brand:Cyky
  • Customized:Non-Customized
  • Portable:Portable
  • Certification:CE
  • Gas:O2
  • Type:Oxygen Concentration Controller

Base Info

  • Model NO.:CY-HT-PV10
  • Display Mode:128X64 Matrix DOT LCD
  • Control Accuracy:±50ppm (Ideally)
  • Environment Temperature:-10ºC ~ +60ºC
  • Air-Source Pressure:(0.4 ~ 1)MPa
  • Environment Humidity:<80%Rh
  • Install Mode:Wall Mount(Chassis)
  • Transport Package:Wooden Case
  • Specification:115mmx185mmx195mm
  • Trademark:CYKY
  • Origin:Zhengzhou, China
  • Production Capacity:100pieces,Month

Description

Basic Info.

Model NO. CY-HT-PV10 Display Mode 128X64 Matrix DOT LCD Control Accuracy ±50ppm (Ideally) Environment Temperature -10ºC ~ +60ºC Air-Source Pressure (0.4 ~ 1)MPa Environment Humidity <80%Rh Install Mode Wall Mount(Chassis) Transport Package Wooden Case Specification 115mmx185mmx195mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

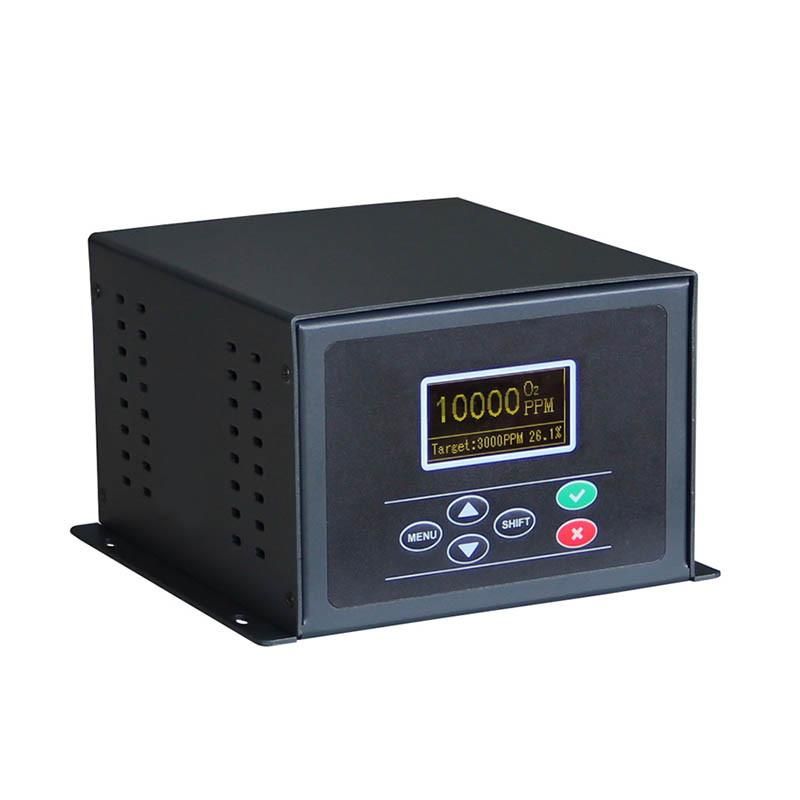

PID control Proportional Valve Oxygen Concentration Controller
Application of Proportional Valve Oxygen Concentration Controller:
Proportional valve controller focuses on the range auto-control of oxygen or other media gases concentration from wave-soldering machine, reflow-soldering machine and gas protection furnace, etc.

Instrument features of Proportional Valve Oxygen Concentration Controller:
 The self-determining function achieve auto-intelligent determining PID control parameters, reducing user's workload on debugging;
 With the buttons and OLED display screen, users could set parameters on the controller easily;
 It can connect with the computer by RS232/RS485 serial port carried by the controller to upload the test data and control output to the computer in real time. The received data can be observed, analyzed and saved by the matched software, and the parameters of the instrument can also be set flexibly by it;
 When connected with oxygen analyzer and other media analyzer, the input signal of the controller varies, and it can be used with the present analyzer to upgrade and reconfigure the devices;
 When the controller is using the output signal from the original analyzer, it can provide a set of output signal in the same type of the input signal simultaneously, not occupying any present resources;
 When receiving the signal from the analyzer, the unit can shift automatically, which is: when the concentration is less than 1%, the unit can shift to ppm display automatically to improve the control accuracy;
 High control accuracy, small fluctuation and conspicuous gas saving amount;
 The controller is in small size which is convenient for setting up in the present devices.


Technical parameters of Proportional Valve Oxygen Concentration Controller:
Control principlePID
Display mode128×64 matrix dot OLED
Controlled mediapurity nitrogen, inactive gas, etc
Test range0 ~ 1000ppm/5000ppm/25.00% O2
Control accuracy±50ppm (ideally)
Control cycle0.1S ~ 100S
Input port1 way 0-10V/0-5V/4-20mA.DC
Output port1 way 0-10V/0-5V/4-20mA.DC(interior and the input port are in parallel)
Communication portRS232 (default) or RS485, baud rate 4800/9600/19200 optional
Power Supply85 ~ 265VAC 50/60Hz
Environment temperature-10ºC ~ +60ºC
Air-source pressure(0.4 ~ 1)Mpa
Environment humidity<80%RH
Appearance size115mm×185mm×195mm(H×W×D)
Install size173mm×120mm(W×D)
Install modewall mount(chassis)
Pid Control Proportional Valve Oxygen Concentration ControllerPid Control Proportional Valve Oxygen Concentration Controller
