• Model NO.：CY-JY-F101-EX
• Test Principle：Micro-Fuel Cell
• Display Mode：128X64 Matrix DOT LCD
• Power Supply：DC24V,0.5A
• Sampling Mode：Sample Gas Pass-in
• Install Mode：Wall Mount
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：196mmx170mmx134mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-JY-F101-EX Test Principle Micro-Fuel Cell Display Mode 128X64 Matrix DOT LCD Power Supply DC24V/0.5A Sampling Mode Sample Gas Pass-in Install Mode Wall Mount Warranty One Year Transport Package Wooden Case Specification 196mmx170mmx134mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

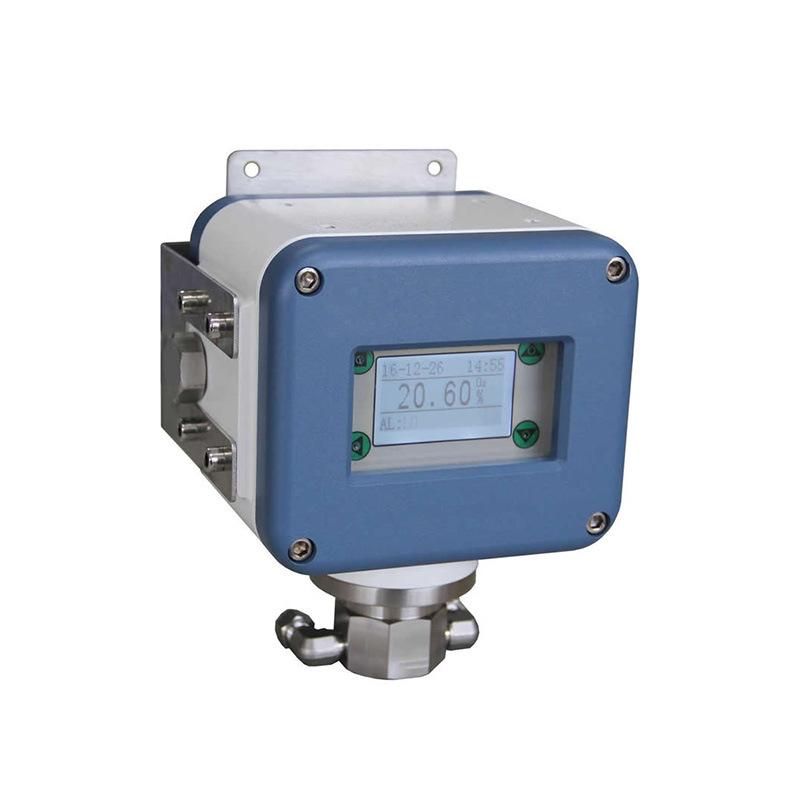

High accuracy Online Explosion-proof Oxygen Transmitter
Application of Oxygen Analyzer:
It can be applied widely in the trace or ordinary oxygen concentration measurement in the environment whose explosion-proof level is required to be Exd IIB T4.

Instrument features of Oxygen Analyzer:
• Liquid-crystal display makes the display visual and the operation easy.
• The set of the menu can be accomplished by magnetic pen under explosion-proof occasion which is convenient for the operation in the scene;
• The imported micro-fuel cell oxygen sensor has the advantages like a rapid response speed, high measured accuracy, excellent linearity, long calibration period, weak-acid resistance and weak-alkali resistance;
• Only one random point needs to be calibrated among the whole measurement range, making the calibration operation simple and convenient;
• The auto-compensation system for pressure with high accuracy could eliminate the influence from environment pressure;
• The auto-compensation system for temperature with high accuracy could eliminate the influence from environment temperature.

Technical parameters of Oxygen Analyzer:

Test principle	micro-fuel cell
Display mode	128×64 matrix dot LCD
Test range	0 ~ 10/100/1000ppm,0~ 25.00% O2 (different range optional,micro-range or ordinary range)
Accuracy	0~1000ppm/1.00%/10.00%/25.00%≤±1%FS 0~100ppm ≤±2%FS 0~10ppm ≤±5%FS
Repeatability	≤±1%
Response time	T90≤60S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Power supply	DC24V/0.5A
Sample gas temperature	0 ~ 50ºC
Environment temperature	<80%RH
Sampling mode	Sample gas pass-in
Sample gas flow	600 ~ 800ml/min
Entrance pressure	90 ~ 110Kpa, steady pressure environment(absolute pressure)
Sample gas composition	no strongly corrosive gas, dust amount less than 1mg/Nm3
Appearance Size	196mm×170mm×134mm (H×W×D)
Serving life	>24 months (under normal use)
Explosion-proof level	Exd IIB T4
Install mode	wall mount
