• Model NO.：CY-HT-LA413
• Test Principle：Zirconium Dioxide
• Display Mode：128X64 Matrix DOT LCD
• Power Supply：AC85 ~ 264V 50,60Hz
• Communication Port：RS232 (Default) or RS485
• Sampling Mode：Extraction Way
• Install Mode：Frame Mount
• Transport Package：Wooden Case
• Specification：177mmx251mmx343mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LA413 Test Principle Zirconium Dioxide Display Mode 128X64 Matrix DOT LCD Power Supply AC85 ~ 264V 50/60Hz Communication Port RS232 (Default) or RS485 Sampling Mode Extraction Way Install Mode Frame Mount Transport Package Wooden Case Specification 177mmx251mmx343mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

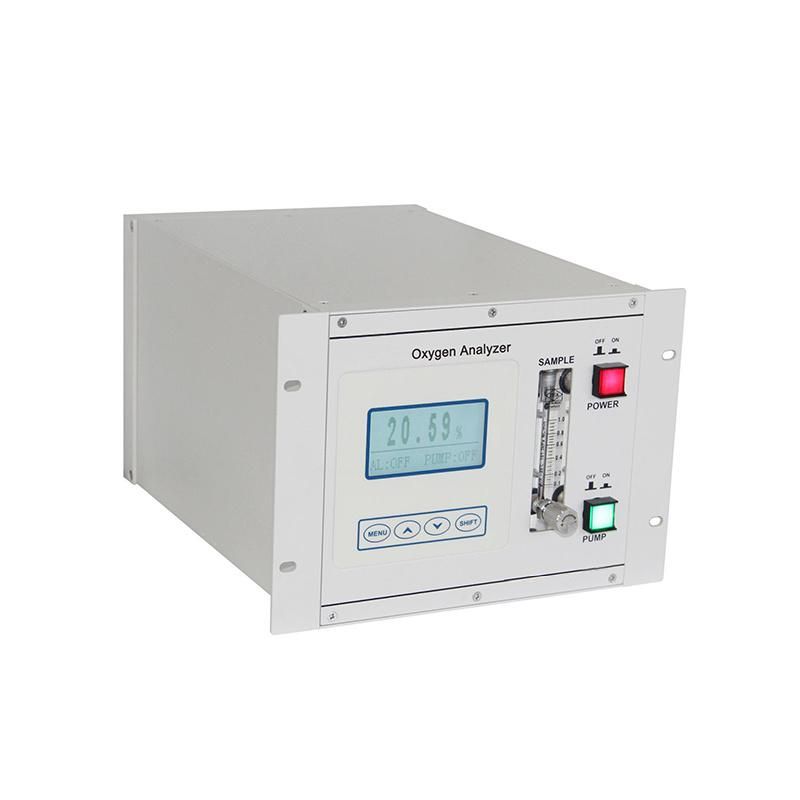

Oxygen Analyzer for wave-soldering machine and reflow-solder machine
Application of Oxygen Analyzer:
It can be widely applied in the online oxygen analysis in protection gas  from wave-soldering machine, reflow-soldering machine, welding furnace for electron and semiconductor and sintering furnace for inactive gas.

Instrument features of Oxygen Analyzer:
• The imported solid electrolyte sensor is with high measurement accuracy, a rapid response speed and long calibration cycle for features, etc;
• It can keep working in the air for a long time without affecting the serving life;
• The response speed is rapid and the lowest measurable unit is 0.1ppm;
• Power being supplied at a wide range makes it more suitable for different occasions;
• Only one random point needs to be calibrated among the whole measurement range, making the calibration operation simple and convenient;
• Function of built-in temperature compensation could reduce the influence from the changes of environment temperature on the measured accuracy;
• No reference gas is needed, and the analyzer wouldn't be affected by the oxygen concentration from the working around atmosphere;
• Friendly communication menu makes the operation visual and simple;
• It could do one-way or bidirectional communication with the upper computer;
• The imported sampling pump is built in.

Technical parameters of Oxygen Analyzer:

Test principle	zirconium dioxide
Display mode	128×64 matrix dot LCD
Test range	0 ~ 10/100/1000ppm / 1.00% / 25.00% O2
Resolution	1ppm
Accuracy	0~1000ppm /1.00% / 10.00% / 25.00% ≤±1% FS 0~100ppm ≤±2% FS 0~10ppm ≤±5%FS
Repeatability	≤±1%
Response time	T90≤30S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm)   0~10V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default) or RS485
Power supply	AC85 ~ 264V 50/60Hz
Sample gas temperature	-10 ~ +50ºC
Sample gas flow	400 ~ 600ml/min
Sampling mode	extraction way, ejection way, extraction and ejection way
Sample gas pressure	micro positive pressure, micro negative pressure or normal  pressure
Background gas	N2 and inactive gas
Appearance Size	177mm×251mm×343mm(H×W×D)
Install Hole Cut	179mm×213mm(H×W)
Serving life	>4 years(under normal use)
Gas circuit port	NPT 1/8 internal thread
Install mode	frame mount

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
