• Model NO.：CY-HT-LA260
• Test Principle：Zirconia
• Display Mode：5 Bits LED Display
• Power Supply：AC85~264V 50,60Hz
• Sampling Mode：Sample Gas Pass-in
• Sample Gas Flow：300 ~ 500ml,Min
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：80mmx160mmx142mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LA260 Test Principle Zirconia Display Mode 5 Bits LED Display Power Supply AC85~264V 50/60Hz Sampling Mode Sample Gas Pass-in Sample Gas Flow 300 ~ 500ml/Min Warranty One Year Transport Package Wooden Case Specification 80mmx160mmx142mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

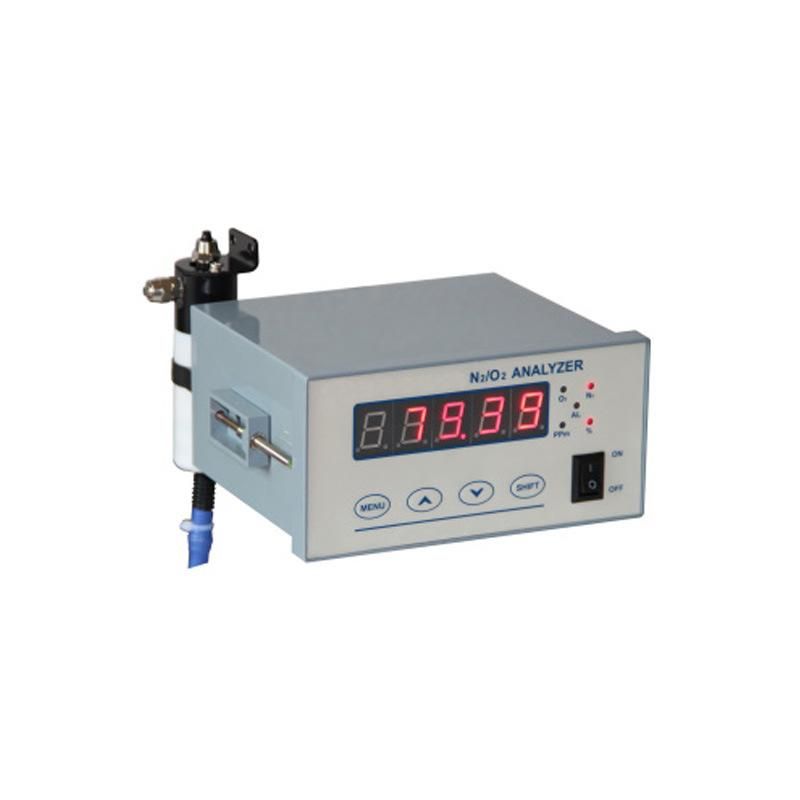

Nitrogen/Oxygen Analyzer for oxygen concentration in ferrite sintering furnace
Application of Nitrogen/Oxygen Analyzer:
It is widely used in the measurement of oxygen concentration in N2 reflow furnace, N2 DC furnace, air separation unit, gas purity management, protective inert gas, ferrite sintering furnace and other environments.

Instrument features of Nitrogen/Oxygen Analyzer:
• The imported new-type longevous zirconia detector is with high accuracy and a rapid response speed for features, etc;
• N₂ or O₂ display mode is available;
• The auto-compensation system for temperature with high accuracy could eliminate the influence from the environment temperature;
• The upper and lower alarm limits can be set freely among the whole range;
• The accurate measurement of oxygen concentration among the range of ppm ~ % can be met through one-point calibration in the air;
• With power supplied at a wide range, the influence from mains fluctuation on the analyzer can be eliminated;
• With an external printer, the test parameters can be printed manually or automatically (optional);
• The size is small and easy to maintain.

Technical parameters of Nitrogen/Oxygen Analyzer:

Test principle	zirconia
Display mode	5 bits LED display
Test range	10/100/1000ppm,21.000% O2/N2
Accuracy	≤±1.5% FS
Repeatability	≤±1%
Response time	T90≤30S
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm)  1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Environment humidity	<90%RH
Power supply	AC85~264V 50/60Hz
Sample gas temperature	-10 ~ +50ºC
Sampling mode	sample gas pass-in
Sample gas flow	300 ~ 500ml/min
Background gas	nitrogen and oxygen mixed gas
Appearance Size	80mm×160mm×142mm(H×W×D)
Install Hole Cut	75mm×151mm(H×W)
Serving life	>20000 hours(under normal use)
Gas cycle port	Φ6 plastic pipe inlet and outlet
Install mode	frame mount or retaining clap carried by the oxygen sensor

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
