• Model NO.：CY-HT-LA531
• Test Principle：Ion Current (Limit Current)
• Display Mode：64X48 DOT Matrix OLED
• Power Supply：DC24V
• Sample Gas Flow：300 ~ 600ml , Min
• Install Mode：Wall-Mounted
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：110mm x 99mm x 45mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LA531 Test Principle Ion Current (Limit Current) Display Mode 64X48 DOT Matrix OLED Power Supply DC24V Sample Gas Flow 300 ~ 600ml / Min Install Mode Wall-Mounted Warranty One Year Transport Package Wooden Case Specification 110mm x 99mm x 45mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

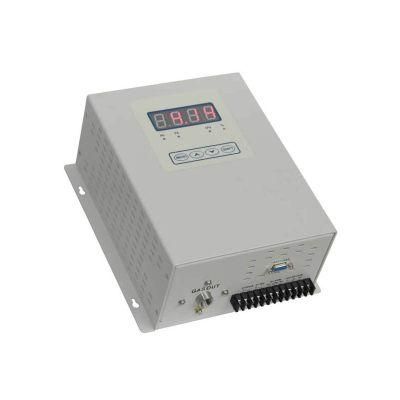

Wall-mounted installation purity oxygen transmitter price
Application of oxygen transmitter:
It is widely used in real-time detection and analysis of high purity oxygen in large air separation high purity oxygen, medical and industrial oxygen generators, smelting industry, medical and health, petrochemical, environmental protection, electronic power and other industries.

Instrument features of oxygen transmitter:
a. With display function, friendly man-machine interface menu, user operation is intuitive and convenient;
b. The transmitter is compact in design, exquisite in appearance and easy to install;
c. No reference gas is required, and is not affected by the working environment oxygen concentration;
d. The imported limit current sensor has the characteristics of no electricity, no consumption, long service life and easy maintenance;
e. Built-in temperature compensation function, the sample gas flow size will not bring errors to the sensor measurement;
f. Measuring range is 10.00% ~ 98.00% O₂;
g. The transmitter comes with a standard RS485 communication port, which can realize two-way communication with the computer;
h. The altitude measurement module can be extended to avoid the influence of atmospheric pressure changes on measurement accuracy;
i. Any point calibration can meet the measurement accuracy of the whole range, and the operation is simple and quick;
j. Wall-mounted installation makes it easy to install.

Technical parameters of oxygen transmitter:

Measuring principle	ion current (limit current)
Display mode	64×48 dot matrix OLED
Measuring range	10.00% ~ 98.00% O2
Resolution	0.01%
Measurement accuracy	≤ ± 1% FS
Repeatability	≤±1%
Response time	T90 ≤ 30S
Analog output	4-20mA.DC (non-isolated output, load resistance less than 500 ohms) 2-way programmable dry contact passive alarm output, contact maximum capacity 220VAC/2A
Communication interface	RS485
Power supply	DC24V
Sample gas temperature	-10 ~ +50ºC
Sample gas flow	300 ~ 600ml / min
Sample gas pressure	0.05Mpa ≤ inlet pressure ≤ 0.35Mpa, steady atmosphere
Background gas	N2, mixed gas such as inert gas
Ambient humidity	<80% RH
Specification size	110mm × 99mm × 45mm (H × W × D)
Hole size	96mm × 25mm (H × W)
Air circuit interface	Φ6 push-in connector (sensor built-in)
Service life	>3 years (under normal use conditions)
Installation method	wall-mounted

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
