• Model NO.：CY-HT-LA551
• Test Principle：Ion Current (Limit Current)
• Display Mode：4 Bits LED Display
• Power Supply：AC220V±15%  50,60Hz
• Sample Gas Flow：300 ~ 600ml,Min
• Install Mode：Frame Mount
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：96mmx96mmx120mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-LA551 Test Principle Ion Current (Limit Current) Display Mode 4 Bits LED Display Power Supply AC220V±15%  50/60Hz Sample Gas Flow 300 ~ 600ml/Min Install Mode Frame Mount Warranty One Year Transport Package Wooden Case Specification 96mmx96mmx120mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

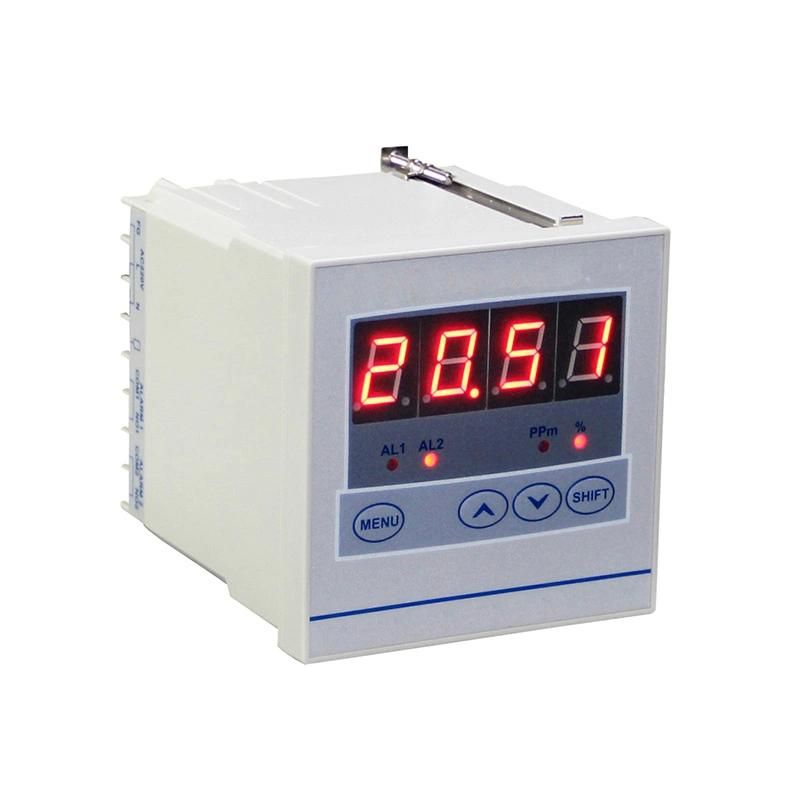

High quality cheap Purity Oxygen Analyzer for oxygenerator
Application of Oxygen Analyzer:
It can be widely applied in the purity oxygen real-time analysis in the industries like large-scale air separation for purity oxygen, medical or industrial oxygenerator, smelting industry, medical treatment, petrochemical engineering, environment protection and electronic power, etc.

Instrument features of Oxygen Analyzer:
• The built-in sensor is convenient for the installation and operation;
• Altitude measurement module can be expanded to avoid the influence from atmospheric pressure change on the measured accuracy;
• The sensor is with no power on no consumption, long serving life and easy to maintain for features, etc;
• No reference gas is needed and the analyzer will not be influenced by oxygen purity in working around atmosphere;
• Imported limiting current sensor is adopted with a rapid response speed, high accuracy and long calibration cycle for features, etc;
• The frame mount installation mode makes it simple and convenient to install;
• The built-in functions which are temperature compensation, flow compensation and sensor temperature control could eliminate the influence from the change of sample gas flow and environment temperature on the sensor measured accuracy;
• The measured accuracy of the whole range can be met by a random point calibrated, making the operation simple and convenient.

Technical parameters of Oxygen Analyzer:

Test principle	ion current  (limiting current)
Display mode	4 bits LED display
Test range	10.00% ~ 99.99% O2
Resolution	0.01%
Accuracy	≤±1%FS
Repeatability	≤±1%
Response time	T90≤30S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 0~5V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 2 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232(default) or RS485
Power supply	AC220V±15%  50/60Hz,20W
Sample gas temperature	-10 ~ +50ºC
Sampling mode	sample gas pass-in
Sample gas flow	300 ~ 600ml/min
Background gas	N2 and inactive gas,etc
Appearance Size	96mm×96mm×120mm(H×W×D)
Install Hole Cut	92mm×92mm(H×W)
Serving life	>40 months
Gas cycle port	Φ6 plastic pipe junction(sensor built in)
Install mode	frame mount

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
