• Model NO.：CY-HT-PA501
• Test Principle：Ion Current (Limit Current)
• Display Mode：128X64 Matrix DOT LCD
• Power Supply：AC100 ~ 240V 50,60Hz
• Sample Gas Flow：300 ~ 600ml,Min
• Install Mode：Portable Mode
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：155mmx260mmx340mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-HT-PA501 Test Principle Ion Current (Limit Current) Display Mode 128X64 Matrix DOT LCD Power Supply AC100 ~ 240V 50/60Hz Sample Gas Flow 300 ~ 600ml/Min Install Mode Portable Mode Warranty One Year Transport Package Wooden Case Specification 155mmx260mmx340mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

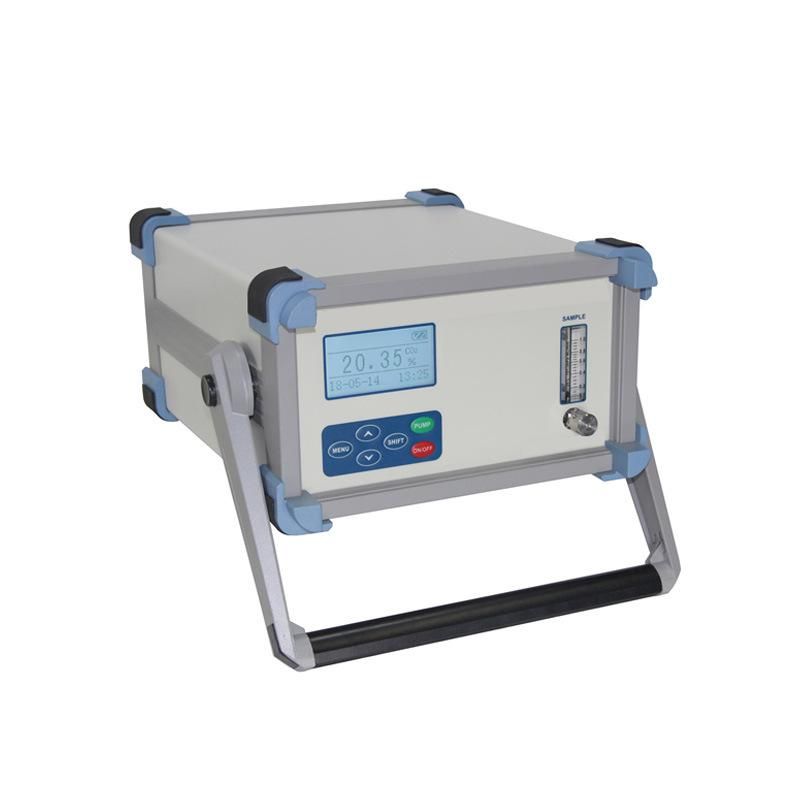

High Quality Portable Purity Oxygen Analyzer for sale
Application of Oxygen Analyzer:
It can be widely applied in the purity oxygen analysis in the industries like air-separation purity oxygen monitoring, melting industry, medical treatment, petrochemical industry and electronic power, etc.

Instrument features of Oxygen Analyzer:
• Imported limiting current sensor is adopted as the measured unit, with a rapid response speed and long calibration cycle for features, etc;
• Power is supplied by large-capacity lithium battery, with the continuous measuring time more than 24 hours and the standby time more than 168 hours;
• With the function of sensor protection, the instrument can be turned on under any circumstances without affecting the sensor's serving life;
• The built-in sensor temperature-compensation circuit could avoid the influence from temperature change on the measured accuracy;
• Altitude measurement module can be expanded to avoid the influence from atmosphere pressure change on the measured accuracy;
• With the functions of built-in compensation and sensor protection, the analyzer can be on power under 99.99%condition without affecting the sensor's serving life;
• Function of storing data automatically allows users to look through historic data at any time;
• The measured accuracy of the whole measurement range can be met by a random point calibrated, making the calibration simple and convenient;
• Sampling pump built in (optional).

Technical parameters of Oxygen Analyzer:

Test principle	ion current (limiting current )
Display mode	128×64 matrix dot LCD
Test range	10.00% ~ 99.99% O2
Resolution	0.01%
Accuracy	≤±1%FS
Repeatability	≤±1%
Response time	T90≤30S
Sample gas temperature	-10 ~ +50ºC
Sampling mode	sample gas extraction or pass-in
Sample gas flow	300 ~ 600ml/min
Sample gas pressure(without pump)	0.05Mpa≤entrance displayed pressure≤0.35Mpa,steady pressure environment
Sample gas pressure(with pump)	micro-positive pressure, micro-negative pressure or ordinary pressure
Background gas	N2 and inactive gas
Appearance Size	155mm×260mm×340mm(H×W×D)
Serving life	type C>5 years,type D>3 years(under normal use)
Gas circuit port	NPT 1/8 internal thread
Charging source	AC100 ~ 240V 50/60Hz
Battery capacity	11.1V / 11AH
Install mode	portable mode
