• Model NO.：CY-JY-420T
• Test Principle： Ion Current
• Display Mode：320*240 Graphic DOT Matrix LCD
• Power Supply： AC85 ~ 264V 50,60Hz
• Sample Gas Flow：300 ~ 600ml , Min
• Install Mode：Embedded Installation
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：155mmx260mmx340mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• Production Capacity：100pieces,Month

Basic Info.

Model NO. CY-JY-420T Test Principle  Ion Current Display Mode 320*240 Graphic DOT Matrix LCD Power Supply  AC85 ~ 264V 50/60Hz Sample Gas Flow 300 ~ 600ml / Min Install Mode Embedded Installation Warranty One Year Transport Package Wooden Case Specification 155mmx260mmx340mm Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

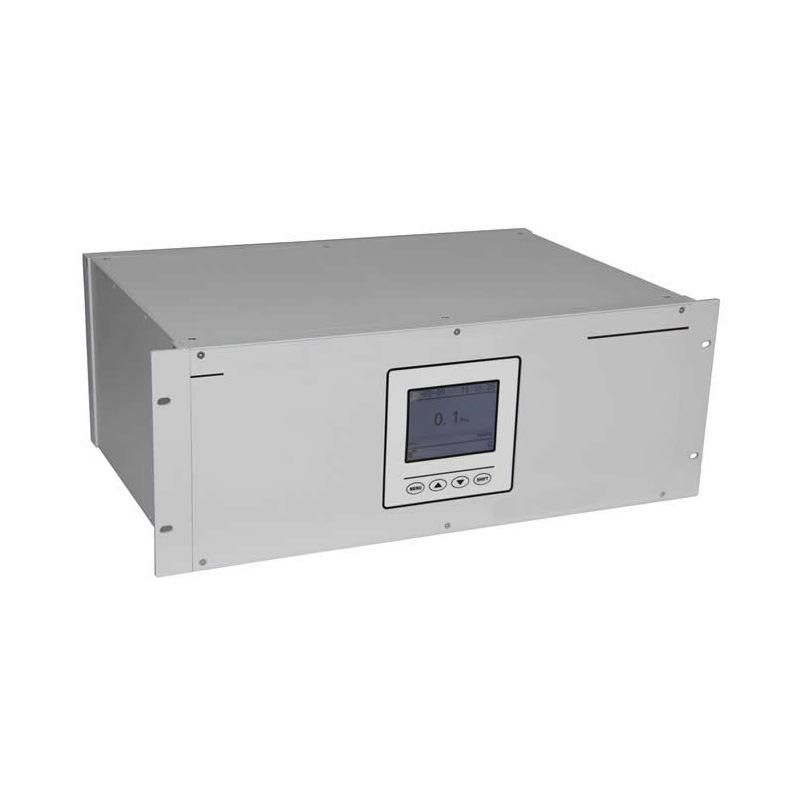

Accurate measurement Trace Oxygen Analyzer for oxygen concentration
Application of Trace Oxygen Analyzer:
It is widely used in nitrogen-oxygen mixed gas or argon-oxygen mixed gas for accurate measurement of oxygen concentration.

Instrument features of Trace Oxygen Analyzer:
a) Friendly man-machine dialogue menu, intuitive and convenient operation;
b) 320×240 graphic dot matrix LCD display, the display is delicate and clear;
c) Original imported ion current sensor, featuring high measurement accuracy, fast response speed and long calibration period;
d) Accurate measurement of oxygen content in the ppm range can be achieved by one-point calibration, making calibration easy and convenient;
e) Built-in original imported sampling pump, long life and reliable operation;
f) RS232 (default) or RS485 data communication interface can be selected according to user needs;
g) Air circuit block alarm and self-protection function, the sampling pump is automatically turned off under the condition of gas path failure, effectively extending the service life of the sampling pump and sensor;
h) Wide range of AC power supply, with a wider range of applications;
i) Built-in temperature and pressure automatic compensation module;
j) the measurement does not require a reference gas and is not affected by the operating environment oxygen concentration;
k) One-way or two-way communication with the host computer.

Technical parameters of Trace Oxygen Analyzer:

Measuring principle	ion current
Display mode	320*240 graphic dot matrix LCD
Range selectable	0 ~ 10/100/1000ppm O2
Resolution	0.1ppm
Measurement accuracy	0 ~ 1000ppm ≤ ± 1% FS 0~100ppm≤±2% FS 0~10ppm≤±5%FS
Repeatability	≤±1%
Response time	T90 ≤ 30S (when the sample flow rate is 0.5L/min)
Analog output	4~20mA.DC (non-isolated output, load resistance less than 500 ohms) 0~5V.DC (non-isolated output, load resistance greater than 10K ohms) 2-way programmable dry contact passive alarm output, contact maximum capacity 220VAC/2A
Other interfaces	RS232 (default) or RS485
Power supply	AC85 ~ 264V 50/60Hz, power consumption is less than 20VA
Sample gas temperature	-10 ~ +50 °C
Sampling method	sample gas pass-in
Sample gas flow	300 ~ 600ml / min
Sample gas pressure	0.05Mpa ≤ inlet gauge pressure ≤ 0.35Mpa, steady atmosphere
Background gas	N2, mixed gas such as inert gas
Dimensions	176mm × 483mm × 330mm (H × W × D)
Hole size	178mm × 444mm (H × W)
Service life	>4 years (under normal use conditions)
Air circuit interface	NPT 1/8 internal thread
Installation method	embedded installation
