Analysis Instrument

Hot Sale High Precision Integrative Flue Oxygen Analyzer Supplier

Zhengzhou CY Scientific Instrument Co., Ltd.
  • Brand:Cyky
  • Customized:Non-Customized
  • Portable:Portable
  • Certification:CE
  • Gas:O2
  • Type:Oxygen Analyzer

Base Info

  • Model NO.:CY-HT-LA601
  • Test Principle:Zirconia
  • Display Mode:4 Bits LED Display
  • Power Supply:DC18 ~ 36V,2A
  • Calibration Mode:Online Calibration
  • Install Mode:Inserting Mount
  • Warranty:One Year
  • Transport Package:Wooden Case
  • Specification:1 meter probe
  • Trademark:CYKY
  • Origin:Zhengzhou, China
  • Production Capacity:100pieces,Month

Description

Basic Info.

Model NO. CY-HT-LA601 Test Principle Zirconia Display Mode 4 Bits LED Display Power Supply DC18 ~ 36V/2A Calibration Mode Online Calibration Install Mode Inserting Mount Warranty One Year Transport Package Wooden Case Specification 1 meter probe Trademark CYKY Origin Zhengzhou, China Production Capacity 100pieces/Month

Product Description

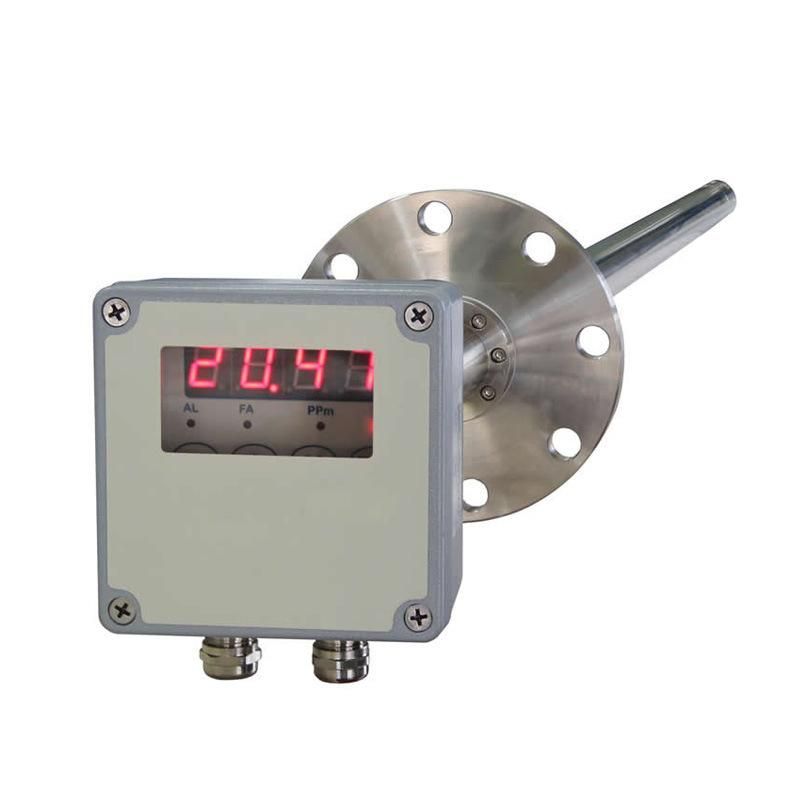

Hot Sale high precision Integrative Flue Oxygen Analyzer
Application of Flue Oxygen Analyzer:
It can be widely applied in department of electronic power, metallurgy, heating, building material and electron, etc to analyze the oxygen content in flue gas from industrial boiler and furnace. It can also be used in monitoring and analyzing the oxygen concentration in the combustion gas from large or small-scale boiler, industrial boiler and combustion devices to achieve the purposes of reasonable combustion for low oxygen content, lowering the combustion consumption and loss, stabilizing techniques, improving the products quality and reducing environment pollution, etc.

Instrument features of Flue Oxygen Analyzer:
• Imported new type zirconia sensor with relatively rare error is adopted ;
• The measured accuracy of the whole measurement range can be met by single-point calibration;
• Friendly communication menu makes the operation visual and simple;
• Making microprocessor as the core is with good stability, high reliability and long calibration cycle for features, etc.;
• The auto-compensation system for temperature could eliminate the influence from environment temperature.
• The measurement range can be expanded to 0 ~ 40.00%O2 (oxygen-enriched combustion) with the measurement range shifting automatically;
• Users can set the upper and lower limits of oxygen concentration related to 4-20mA output to get the analog output with higher accuracy;
• One-way or two-way communication with the computer can be accomplished through the communication port;
The advanced calibration function allows users to calibrate online.


Technical parameters of Flue Oxygen Analyzer:
Test principlezirconia
Display mode4 bits LED display
Test range0 ~ 10/25.00% O2
Expanded range0 ~ 10/25/40.00% O2 (oxygen-enriched combustion)
Resolution0.01%
Accuracy≤±1.5%FS
Repeatability≤±1%
Response timeT90≤30S
Analog output 4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm)
0~5V.DC(non-isolated output, loaded resistance higher than 10k Ohm)
1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication portRS485
Calibration modeonline calibration
Power supplyDC18 ~ 36V/2A
Operation temperatureGauge: -10 ~ +50ºC
Probe: low-temperature type,0 ~ 350ºC
mid-temperature type,0 ~ 700ºC
Install Hole CutΦ50mm ~ Φ90mm
The length of the probe1 meter in usual (other length customizable)
Serving life>3 years (under normal use)
Install modeinserting mount and DN65 standard flange
Hot Sale High Precision Integrative Flue Oxygen Analyzer Supplier
Hot Sale High Precision Integrative Flue Oxygen Analyzer Supplier

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Hot Sale High Precision Integrative Flue Oxygen Analyzer Supplier
Hot Sale High Precision Integrative Flue Oxygen Analyzer Supplier
Hot Sale High Precision Integrative Flue Oxygen Analyzer Supplier

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
