• Model NO.：WGT-S
• Repeatability：Transmittance:≤0.5% Haze:≤0.2
• Display：Nixie Tube
• Transport Package：Standard Export Package
• Specification：C light ( 6774k )
• Trademark：WEST TUNE
• Origin：China
• HS Code：9031809090
• Production Capacity：1000units,Year

Basic Info.

Model NO. WGT-S Repeatability Transmittance:≤0.5% Haze:≤0.2 Display Nixie Tube Transport Package Standard Export Package Specification C light ( 6774k ) Trademark WEST TUNE Origin China HS Code 9031809090 Production Capacity 1000units/Year

Product Description

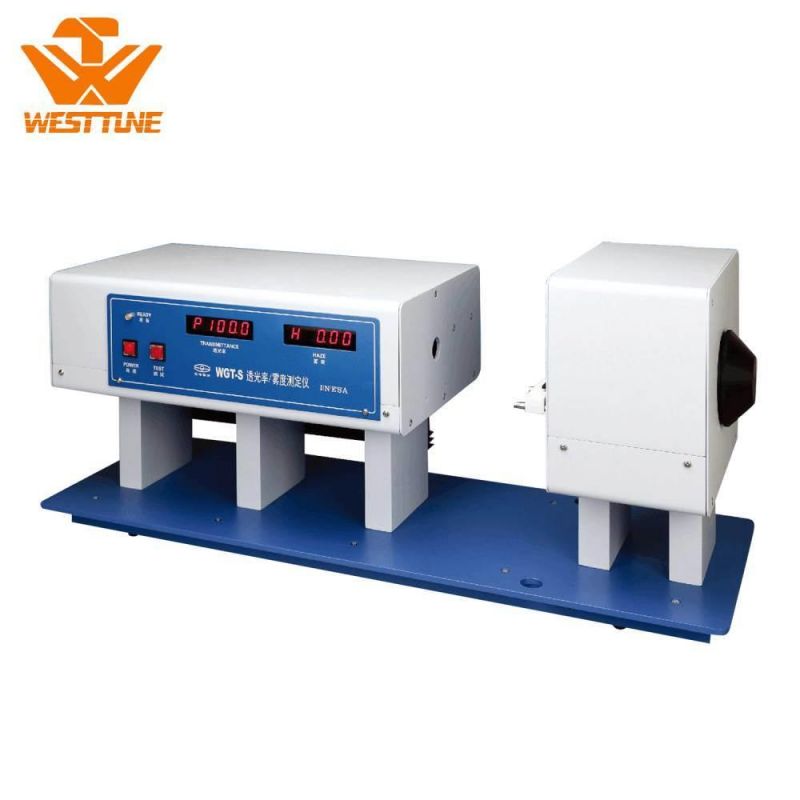

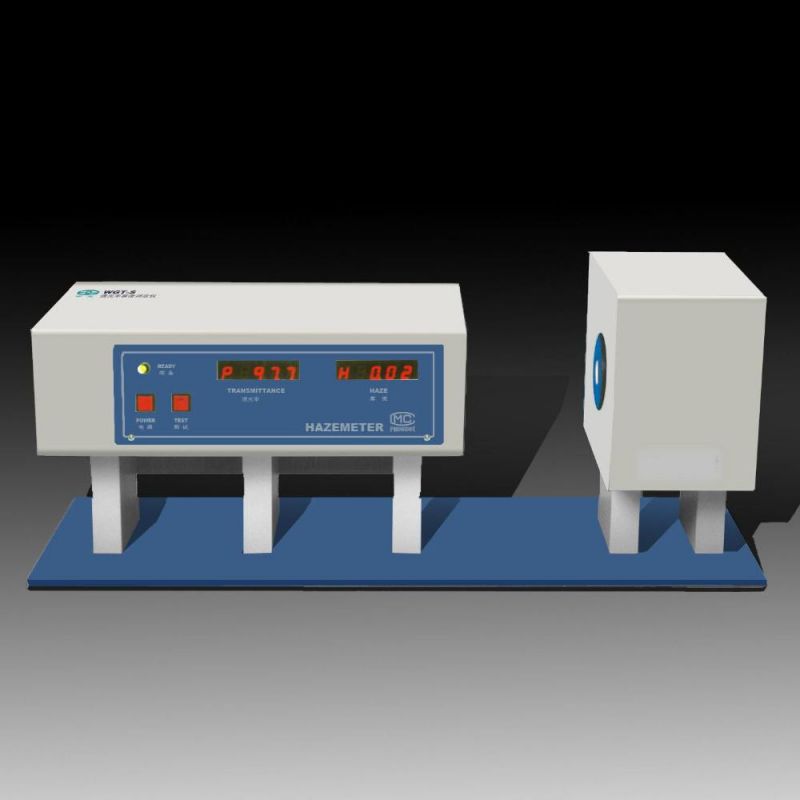

WGT-S Hazemeter

WGT-S Hazemeter adopt parallel lighting, hemispheric scattering, integrating ball photoelectric receiving mode, adopt microcomputer automatic operation system and data processing system, no knob operation, easy to use, and have standard USB interface, automatically display the average value of transmittance/haze measurement for many times, no zero drift, strong confidence.

Special structure - open sample window is almost not limited by the sample size, fast measurement speed.
Because of the modulator, the instrument is not affected by ambient light.
 1.Measurement of transmittance and haze of the parallel plane sample of all transparentand translucent (plastic board or sheet). 2.Measurement of turbidity of liquid sample (water and beverage).
Features
 1.ln conformity with the standard of GB/T 2410-2008,ASTMD1003-2007,JISK7105-81.
2.Microcomputer control and easy to operate.
3.Display of transmittance and haze at the same time.
4.USB


Product Details


Specifications

Parameters/Model	WGT-S
Light Source	C light ( 6774k )
Measurement range	Transmittance: 0-100 % Haze: 0-30% (absolute),30.1-99%(relative)
Minimum reading	0.1%(transmittance),0.01%(haze)
Transmittance:	≤±1%
Accuracy:	≤±2%
Haze:	≤±5 %
Repeatability	Transmittance:≤0.5% Haze:≤0.2
Sample window size	Φ23mm(incident window),Φ21mm(exit window)
Display	Nixie tube
Interface	USB
Weight(Gross)	23kg
Overall dimensions	910mm x 410mm x 480mm
