Ge6022 Themal Cycler Gradient PCR Machine
Hangzhou West Tune Trading Co., Limited- Sample Type:Solidity
- Processing Method:Screening
- Warranty:1 Year
- Environment:Normal Pressure and Temperature
- Display:Digital Display
- Performance:Automatic
Base Info
- Model NO.:GE6022
- Power Supply:220V
- Weight:0-50kg
- Certification:CE
- Customized:Non-Customized
- Temperature Range:0~100ºC
- Heating Rate:5ºC,S
- Cooling Rate:4ºC,S
- Uniformity:≤±0.2ºC
- Accuracy:≤±0.1ºC
- Capacity:60×0.5ml
- Transport Package:Standard Carton Packing
- Specification:380mm×240mm×260mm (L×W×H)
- Trademark:WESTTUNE
- Origin:China
- HS Code:9027809990
- Production Capacity:1000
Description
Basic Info.
Model NO. GE6022 Power Supply 220V Weight 0-50kg Certification CE Customized Non-Customized Temperature Range 0~100ºC Heating Rate 5ºC/S Cooling Rate 4ºC/S Uniformity ≤±0.2ºC Accuracy ≤±0.1ºC Capacity 60×0.5ml Transport Package Standard Carton Packing Specification 380mm×240mm×260mm (L×W×H) Trademark WESTTUNE Origin China HS Code 9027809990 Production Capacity 1000Product Description
GE6022 Themal Cycler Gradient PCR MachineThis series product adopts 8 pieces custom-made US Marlow peltier, Max. ramping rate 5ºC, cycle times >600000. More advanced technologies applied on the product: Windows operating system; color dispay screen; double blocks can run independently; replaceable block; control by PC function; print function; extra large data storage and USB interfaces. All the above functions make it demand high need experiments.
Key Features:
1). Four independent control of semiconductor technology.
2). High-performance universal power supply.
3). Large 5.6-inch high-definition TFT LCD display.
4). Windows operating system, the humanity inter-face.
5). Curve graphic display.
6). LAN online and wireless Bluetooth printing.
7). Power-down data protection.
8). Stepless adjustable hot lid.
9). Lid can be positioned at any angle.
10). Six modules can be replaced easily to meet the requirements of different experiments.
Specification:
Model | GE6022 |
Capacity | 60×0.5ml |
Temperature Range | 0~100ºC |
Max. Heating Rate | 5ºC/s |
Max. Cooling Rate | 4ºC/s |
Uniformity | ≤±0.2ºC |
Accuracy | ≤±0.1ºC |
Display Resolution | 0.1ºC |
Temperature Control | BlockTube |
Ramping Rate Adjustable | 0.1~5ºC |
Gradient Uniformity | ≤±0.2ºC |
Gradient Accuracy | ≤±0.2ºC |
Gradient Temp. Range | 30~100ºC |
Gradient Spread | 1~30ºC |
Hot Lid Temperature | 30~110ºC |
Hot Lid Height Adjustable | Stepless Adjustable |
Number of Programs | 1000 +(USB FLASH) |
Max. No. of Step | 30 |
Max. No. of Cycle | 99 |
Time Increment/Decrement | 1 Sec ~ 9 Min 59 Sec |
Temp. Increment/Decrement | 0.1~9.9ºC |
Pause Function | Yes |
Auto Data Protection | Yes |
Hold at 4ºC | Forever |
Yes | |
LAN to computer | Yes |
LCD | 5.6inch,640×480 Pixels, TFT |
Communication | USB2.0 , LAN |
Dimensions | 380mm×240mm×260mm (L×W×H) |
Weight | 8.5kg |
Power Supply | 85~264VAC , 47~63Hz , 600 W |
We also have other real time quantitive QPCR on sale, below are the hot selling models:

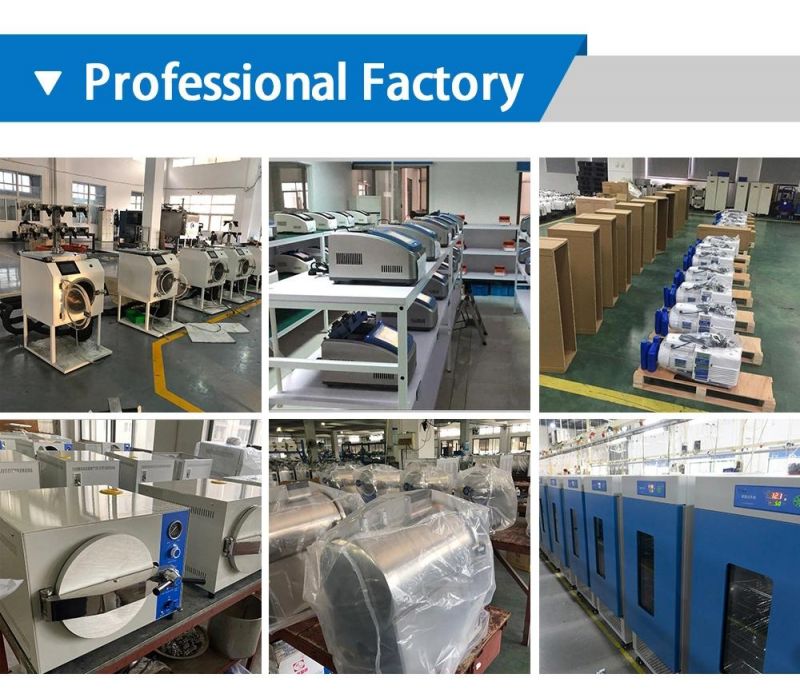

Our company:
