Wzz-3 Photoelectric Automatic Balance Polarimeter

Hangzhou West Tune Trading Co., Limited
  • Display：Color Touch LCD
  • Appliance：Food Analysis, Medical Research, Biochemistry
  • Portable：Non Portable
  • Certification：CE
  • Type：Polarimeter
  • Measurement Modes：Optical Rotation, Specific Rotation, Sugar Degree,

Base Info

  • Model NO.：WZZ-3
  • Light Source：Light-Emitting Diode + Color Filter, Wavelength 58
  • Wavelength：589.44nm
  • Repeatability：≤0.003( Optical Rotation )
  • Minimum Indicating Value：0.001°
  • Transmission：10%
  • Net Weight：21kg
  • Instrument Size：605mm×370mm ×260mm
  • Transport Package：Standard Export Package
  • Specification：Automatic Polarimeter
  • Trademark：WEST TUNE
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：1000units,Year

Description

Basic Info.

Model NO. WZZ-3 Light Source Light-Emitting Diode + Color Filter, Wavelength 58 Wavelength 589.44nm Repeatability ≤0.003( Optical Rotation ) Minimum Indicating Value 0.001° Transmission 10% Net Weight 21kg Instrument Size 605mm×370mm ×260mm Transport Package Standard Export Package Specification Automatic Polarimeter Trademark WEST TUNE Origin China HS Code 9031809090 Production Capacity 1000units/Year

Product Description

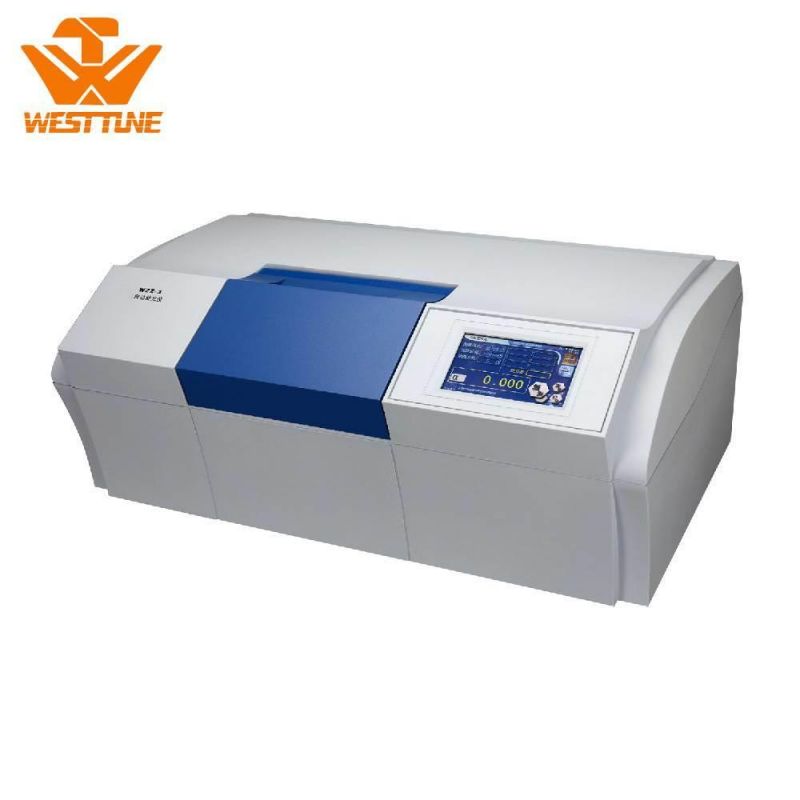

WZZ-3 Automatic Polarimete

The WZZ-3 automatic polarimeter adopts the photoelectric automatic balance measurement principle, which has the advantages of high sensitivity, stable and reliable reading, and no human error.
The display window uses a color LCD touch screen, equipped with a communication interface, and the test data can be saved and printed.
There are 4 measurement modes to choose from. It can automatically retest 6 times and calculate the average value, which is convenient for users.

Wzz-3 Photoelectric Automatic Balance PolarimeterFeatures
 Photoelectric test and microcomputer control
Measuring specific rotation, optical rotation, concentration and sugar degree Automatic repetition-measurement for 6 times,and calculation of average value and means square root

Specifications

Parameters/ModelWZZ-3
Measurement modesOptical rotation, specific rotation, sugar degree,concentration
Light sourceLight-emitting diode + color filter, wavelength 589nm (sodium D spectrum)
Wavelength589.44nm
Measurement range±45°( optical rotation ), ±120° Z(sugar)
Accuracy±(0.01+measuring value x0.05%)°( optical rotation )
Repeatability≤0.003( optical rotation )
DisplayColor Touch LCD
Minimum indicating value0.001°
Test tubes100mm/200mm (regular)
Transmission10%
InterfaceUSB
Net weight21kg
Instrument size605mm×370mm ×260mm
Accuracy0.05 level
Weight(Gross)36kg
Overall Dimensions730mm x 480mm x 470mm
