• Model NO.：SGW-1
• Measurement Modes：Optical Rotation, Specific Rotation, Sugar Degree,
• Light Source：LED +Interference Filter
• Measurement Range：±45°(Op);±120° Z(Sugar)
• Minimum Indicating Value：0.001(Optical Rotation)
• Sample Transmittance：1%
• Repeatability：0.002°( Optical Rotation)
• Test Tube：100mm,200mm(Regular)
• Transport Package：Standard Export Package
• Specification：Automatic Digital Polarim
• Trademark：WEST TUNE
• Origin：China
• HS Code：9031809090
• Production Capacity：200

Basic Info.

Model NO. SGW-1 Measurement Modes Optical Rotation, Specific Rotation, Sugar Degree, Light Source LED +Interference Filter Measurement Range ±45°(Op);±120° Z(Sugar) Minimum Indicating Value 0.001(Optical Rotation) Sample Transmittance 1% Repeatability 0.002°( Optical Rotation) Test Tube 100mm/200mm(Regular) Transport Package Standard Export Package Specification Automatic Digital Polarim Trademark WEST TUNE Origin China HS Code 9031809090 Production Capacity 200

Product Description

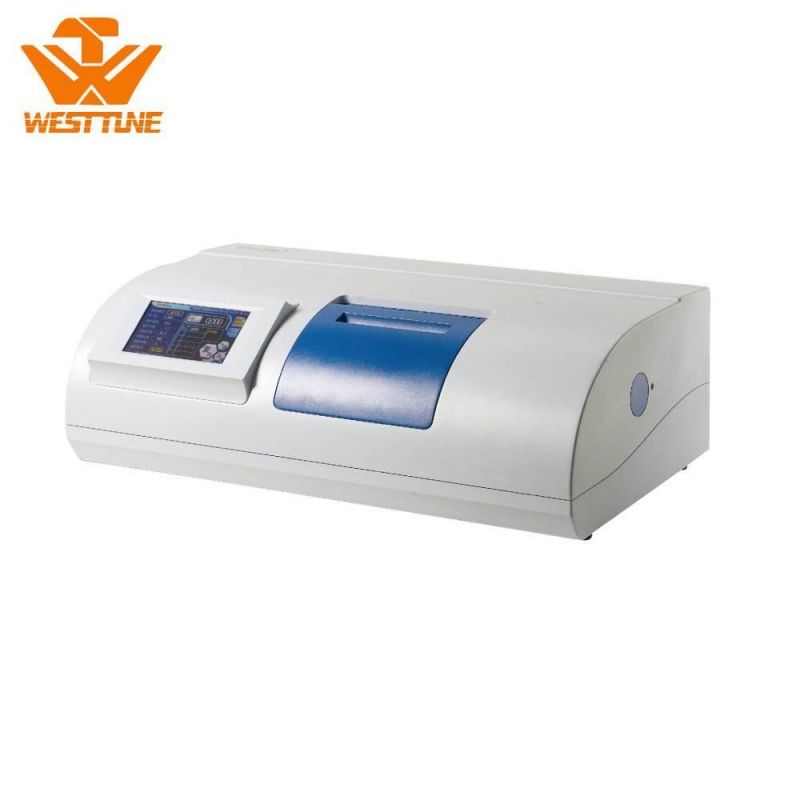

SGW-1 Automatic Polarimeter

SGW-1 uses high-power light-emitting diodes (LED) as the light source, with a life span of more than 100,000 hours. It has four test modes of optical rotation, specific rotation, concentration, and sugar content. It can automatically retest 6 times and calculate the average value and root mean square, and can test dark samples.

FeaturesNeed not prewarm when turning on
Measuring specific rotation, optical rotation, sugar degree and concentration
Automatic repetition-measurement for 6 times,and calculation of average value and means square rootPeltier principle to control the temperature
Measurement of dark-colored sampleUSB & RS232
 Specifications

Parameters/Model	SGW-1
Measurement modes	Optical rotation, specific rotation, sugar degree,concentration
Light source	LED +interference filter
Measurement range	±45°(optical rotation);±120° Z(sugar)
Accuracy	±0.01°(-15°≤optical rotation≤+15° ) 002(cptical rotation<-15oroptical rotaton+15)
Minimum indicating value	0.001(optical rotation)
Sample transmittance	1%
Repeatability	0.002°( optical rotation)
Display	7 Inch ColorfulTouch LCD
Operation Wavelength	589.44nm
Test Tube	100mm/200mm(regular)
Interface	RS232/USB
Weight(Gross)	43kg
Overall Dimensions	820mm x 500mm x 510mm
