Wzz-2b Laboratory Automatic Digital Polarimeter
Hangzhou West Tune Trading Co., Limited- Display:Digital
- Appliance:Food Analysis, Medical Research, Biochemistry
- Portable:Non Portable
- Certification:CE
- Type:Polarimeter
- Measurement Modes:Optical Rotation
Base Info
- Model NO.:WZZ-2B
- Wavelength:589.44nm
- Light Source:LED +Interference Filter
- Measurement Range:±45°( Optical Rotation )
- Minimum Indicating Value:0.002°(Optical Rotation)
- Repeatability:≤0.01°
- Sample Transmittance:10%
- Transport Package:Standard Export Package
- Specification:Automatic Digital Polarim
- Trademark:WEST TUNE
- Origin:China
- HS Code:9031809090
- Production Capacity:200
Description
Basic Info.
Model NO. WZZ-2B Wavelength 589.44nm Light Source LED +Interference Filter Measurement Range ±45°( Optical Rotation ) Minimum Indicating Value 0.002°(Optical Rotation) Repeatability ≤0.01° Sample Transmittance 10% Transport Package Standard Export Package Specification Automatic Digital Polarim Trademark WEST TUNE Origin China HS Code 9031809090 Production Capacity 200Product Description

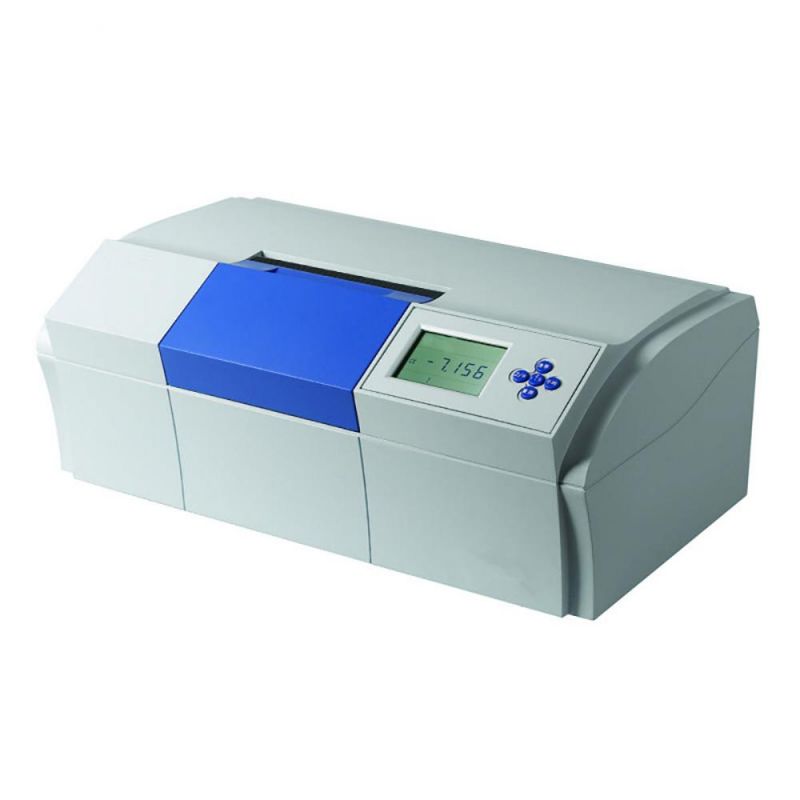

WZZ-2B Automatic Polarimete
WZZ-2B/2S automatic polarimeter adopts high-precision digital circuit and microcomputer control technology to ensure the accuracy and stability of the test.Features1.The novel instrument shape, ABS material is selected, and the mold is opened uniformly to ensure the consistency of appearance.
2.The instrument is equipped with a large-screen backlit LCD display, and the test data is clear and intuitive. It can save three measurement results and automatically calculate the average value.
3.WZZ-2B is equipped with RS232 interface, which can transmit data to computer and save measurement results.
Specifications
Parameters/Model | WZZ-2S | WZZ-2B |
Measurement modes | Optical rotation, sugar degree | Optical rotation |
Wavelength | 589.44nm | 589.44nm |
Light Source | LED +interference filter | LED +interference filter |
Measurement range | ±45°(optical rotation);±120° Z(sugar) | ±45°( optical rotation ) |
Accuracy | ±(0.01+measuring value x0.05%)°(optical rotation) ±(0.03+measuring value x0.05%)°Z(sugar) | ±(0.01+measuring value x0.05%)° (optical rotation) |
Minimum indicating value | 0.001 (optical rotation); 0.01° z(sugar) | 0.002°(optical rotation) |
Repeatability | ≤0.002 | ≤0.01° |
sample transmittance | 1% | 10% |
Display | 5-inch LCD | 5-inch LCD |
Test Tube | 100mm/200mm (regular) | 100mm/200mm (regular) |
Interface | RS232 | RS232 |
Weight(Gross) | 36kg | 36kg |
Overall Dimensions | 730mm x 480mm x 470mm | 730mm x 480mm x 470mm |
