• Model NO.：GE3842T
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Customized：Non-Customized
• Temperature Range：0~100ºC
• Heating Rate：5ºC,S
• Cooling Rate：4ºC,S
• Uniformity：≤±0.2ºC
• Accuracy：≤±0.1ºC
•  Capacity：384 Micro Well
• Transport Package：Standard Carton Packing
• Specification：380mm×240mm×260mm (L×W×H)
• Trademark：WESTTUNE
• Origin：China
• HS Code：9027809990
• Production Capacity：1000

Basic Info.

Model NO. GE3842T Power Supply 220V Weight 0-50kg Certification CE Customized Non-Customized Temperature Range 0~100ºC Heating Rate 5ºC/S Cooling Rate 4ºC/S Uniformity ≤±0.2ºC Accuracy ≤±0.1ºC  Capacity 384 Micro Well Transport Package Standard Carton Packing Specification 380mm×240mm×260mm (L×W×H) Trademark WESTTUNE Origin China HS Code 9027809990 Production Capacity 1000

Product Description

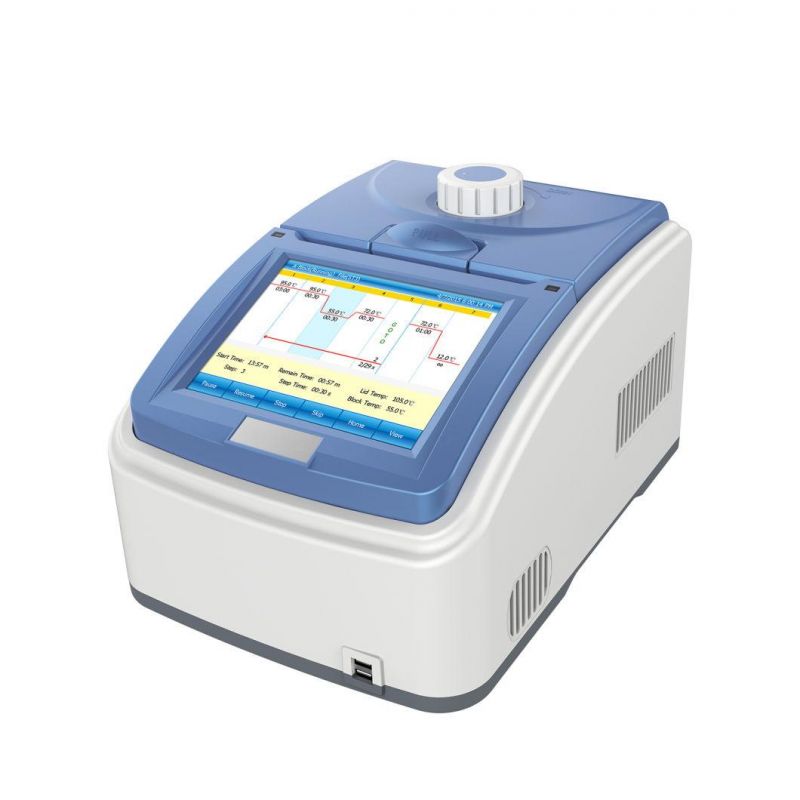

GE3842T 384micro well Gradient PCR
   The product has a variety of advanced pelt ier technologies: windows operating system, 8 inch color touch screen,Dual  modules operate independently, a variety of interchangeable modules, computer on-line function, print function, large data storage capacity and expansioncapabilities, etc. function of the qualitative PCR product perfect to the extreme, powerful features willmeet the higher requirements of an experiment.



Speciality:

♦Each thermal block has 4 independent temperature control sensors and 8 peltier heating units to ensure accurate and uniform temperature across block surface, and provide users for replicate previous condition set-up.
♦Ramp rate up to 5°C/s.
♦ 8" TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
♦The actual and target temperatures can be viewed and displayed graphically in real time.
♦ Built-in 11 standard program file template, can quickly edit the required files.
♦ Internal flash memory for 10000 typical PCR files in free configurable folders.
♦ 30 thermal cyclers can be simuIltaneously
linked to one PC via LAN, which elimnates troubles of setting up and programming each thermal eyeler.
♦ Automatic restart after power failure.
♦ Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.
♦ GLP reports for complete recording of  all runs
♦ Applicable with the follwing  0. 2ml  tube mode is: non-skirted, semi and fully skirted plated.
♦ Replaceable module, the choice of a dual-block module can simultaneously run two different PCR programs.

Key Features

1). Each thermal block has 4 independent temperature control sensors and 8 peltier heating units to ensure accurate and uniform temperature across block surface, and provide users with replicating previous condition set-up.

2). 8" TFT color touch-screen with graphical display provides easy use for setting up and monitoring.

3). The actual and target temperatures can be viewed and displayed graphically in real time.

4). Built-in 11 standard program file template, can quickly edit the required files.

5). Internal flash memory for 10000 typical PCR files in free configurable folders.

6). Automatic restart after power failure.

7). Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.

8). Applicable with the following 0.2ml tube models: non-skirted, semi and fully skirted plated.

9). Replaceable module, the choice of a dual-block module can simultaneously run two different PCR programs.



Specification:


Model	GE3842T
Capacity	384 micro well
Temperature Range	0~100ºC
Max. Heating Rate	5ºC/s
Max. Cooling Rate	4ºC/s
Uniformity	≤±0.2ºC
Accuracy	≤±0.1ºC
Display Resolution	0.1ºC
Temperature Control	BlockTube
Ramping Rate Adjustable	0.1~5ºC
Gradient Uniformity	≤±0.2ºC
Gradient Accuracy	≤±0.2ºC
Gradient Temp. Range	30~100ºC
Gradient Spread	1~30ºC
Hot Lid Temperature	30~110ºC
Hot Lid Height Adjustable	Stepless Adjustable
Number of Programs	1000 +(USB FLASH)
Max. No. of Step	30
Max. No. of Cycle	100
Time Increment/Decrement	1 Sec ~ 9 Min 59 Sec
Temp. Increment/Decrement	0.1~9.9ºC
Pause Function	Yes
Auto Data Protection	Yes
Hold at 4ºC	Forever
Print	Yes
LAN to computer	Yes
LCD	8inch,800×600 Pels, TFT
Communication	USB2.0 , LAN
Dimensions	380mm×240mm×260mm (L×W×H)
Weight	9kg
Power Supply	85~264VAC , 47~63Hz , 600 W

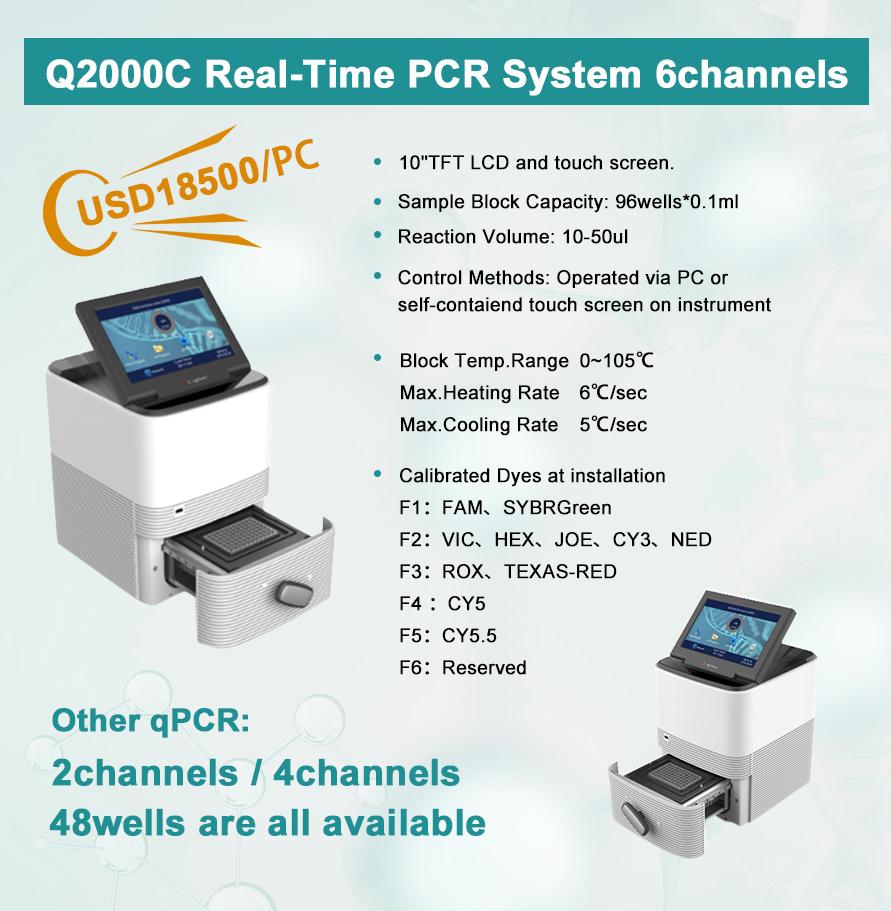

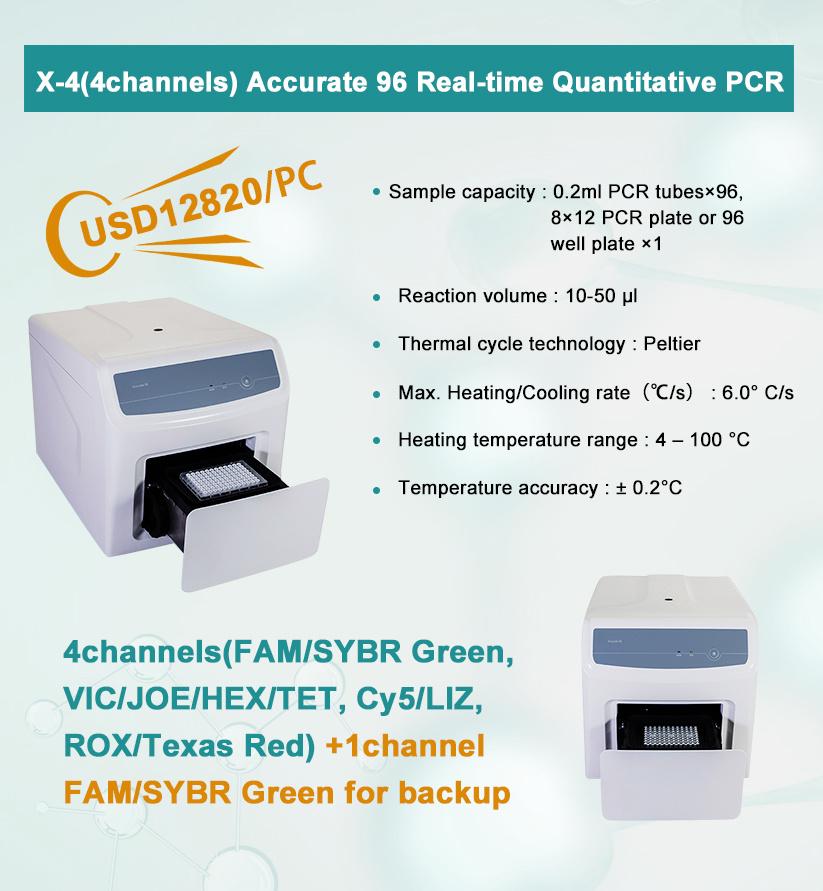

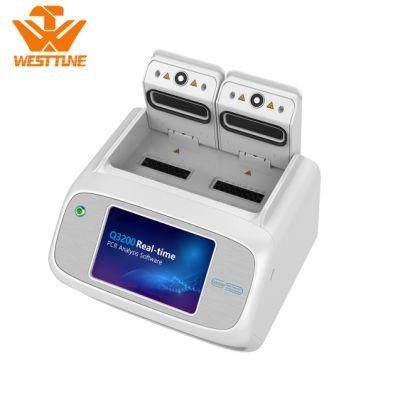

We also have other real time quantitive QPCR on sale, below are the hot selling models:

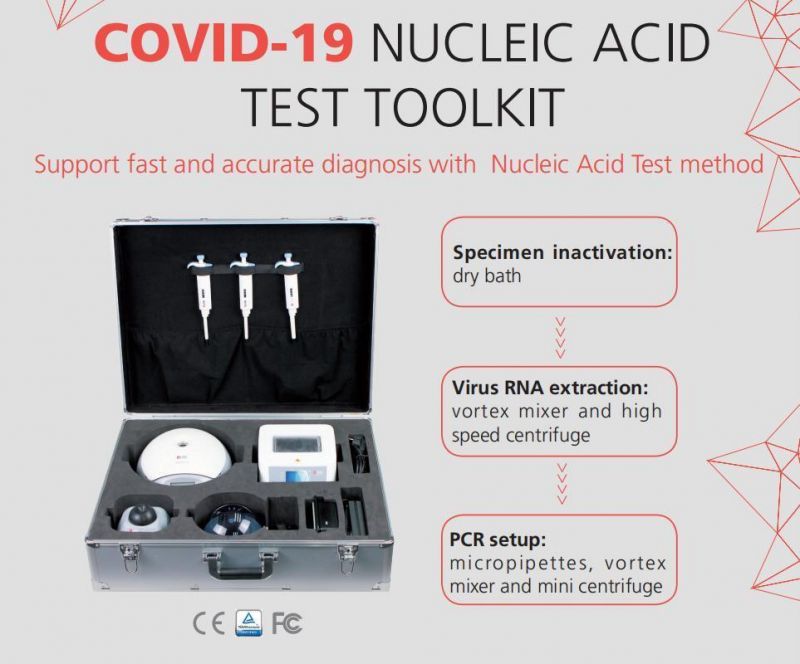

NUCLEIC ACID TEST TOOLKIT:
