Analysis Instrument

Water Separability Tester Sy-7305 Demulsibility Characteristics Tester

Beijing Samyon Instruments Co., Ltd.
  • Temperature Range:(Room Temp.~99.9)Oc
  • Temperature Control Accuracy:+,-1oc
  • Resolution:0.1oc
  • Temperature Display:Digital
  • Stirring Rate:(1500+,-15)R,Min
  • Heating Power:1000W

Base Info

  • Model NO.:SY-7305
  • Transport Package:Carton Case
  • Specification:SGS
  • Trademark:SAMYON
  • Origin:Cn
  • HS Code:903180
  • Production Capacity:100sets Per Month

Description

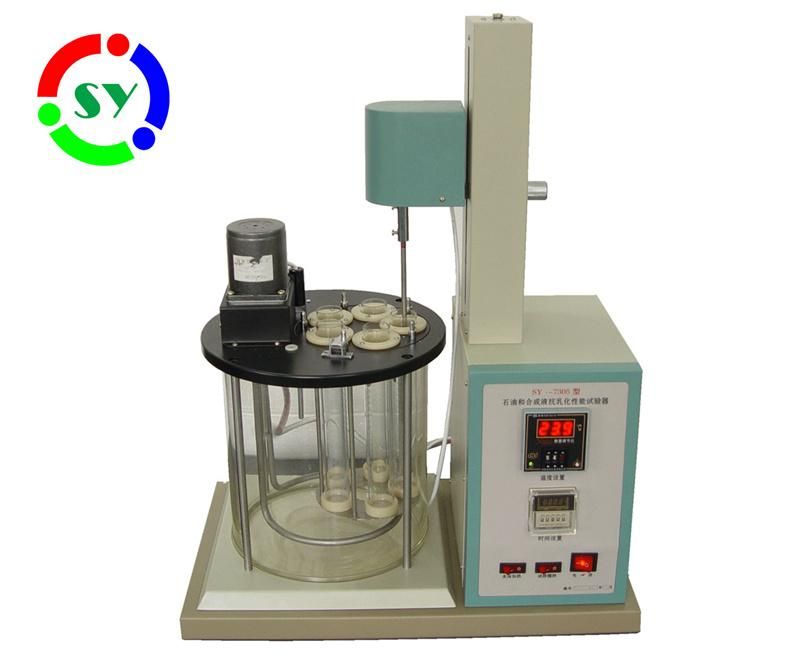

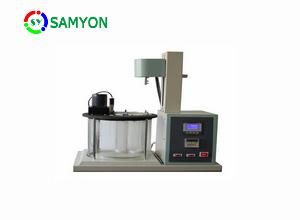

Water Separability Tester Sy-7305 Demulsibility Characteristics Tester

Water Separability Tester Sy-7305 Demulsibility Characteristics Tester

Water Separability Tester Sy-7305 Demulsibility Characteristics Tester

Water Separability Tester Sy-7305 Demulsibility Characteristics Tester

Summary
This instrument is designed and made as per Standards GB/T7305 Petroleum oils and synthetic fluids - Determination of demulsibility characteristics and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. It is suitable to determine the water separability of petroleum oils and synthetic fluids. It can be widely used in fields of petroleum, electricity, chemical industry , colleges and scientific research institutions.

I. Main technical features
1.This instrument adopts small bath and desktop structure. It is easy to operate and good-looking.
2.It adopts electric motor to stir automatically. The temperature is uniform. It can do determination for 5 samples one by one.
3.The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.

II. Main technical specifications
1. Power supply: AC(220±10%)V, 50Hz
2. Temperature range: (Room temp.99.9)ºC
3. Temperature control accuracy: ±1ºC
4. Resolution: 0.1ºC
5. Temperature display: Digital
6. Timing range: 1s9m 59s
7. Timing set: Dial control
8. Time display: Digital
9. Stirring rate: (1500±15)r/min
10.Heating power: 1000W
11.Ambient temperature: (Room temp.35)ºC
12.Relative humidity: ≤85%
13.Maximum Power consumption: 1200W
14.Dimension: 500mm×340mm×720mm

Note: If the required temperature is lower than room temperature,it can equip ZL-1 portable cooler manufactured by our company.
