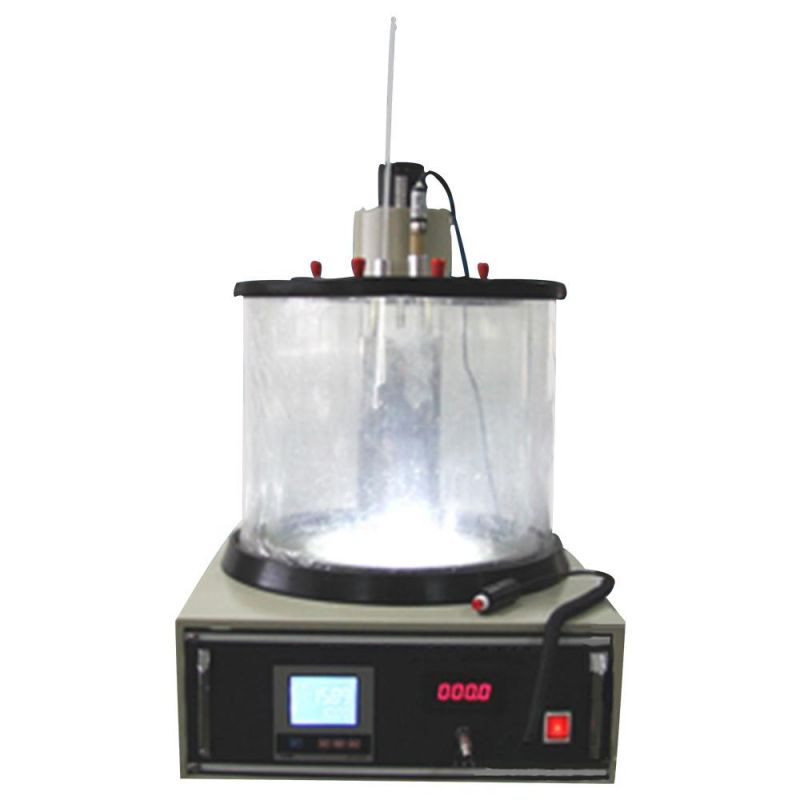

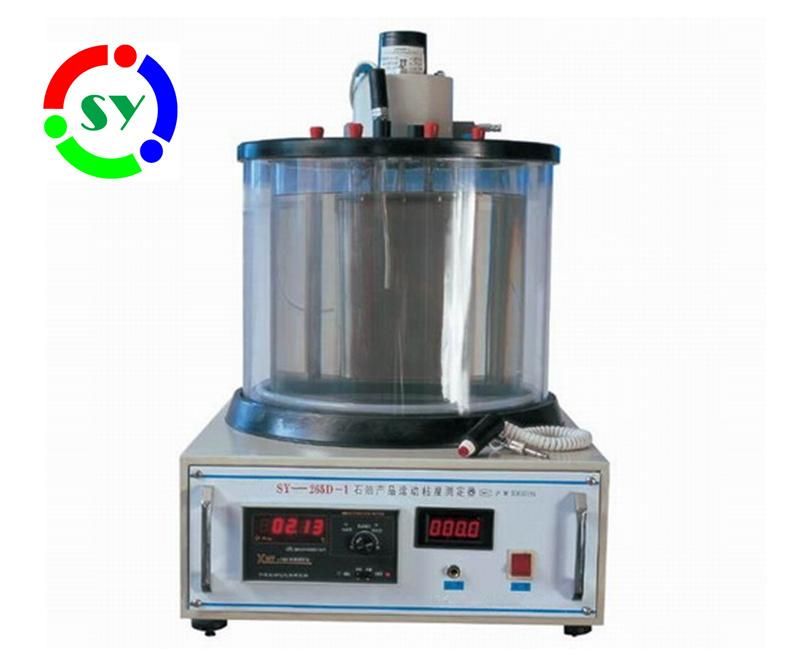

Sy-265D-1 Petroleum Equipment Kinematic Viscometer

Beijing Samyon Instruments Co., Ltd.
  • Bath Volume：20L
  • Temperature Controlling Range：Room Temperature~100 Oc
  • Temperature Controlling Accuracy：+,-0.01
  • Heating Power：1000W(Auxiliary Heating), 600W(Temperature Control
  • Power for Stirrer：6W
  • Transport Package：Carton Case

Base Info

  • Model NO.：Sy-265D-1
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

Power supplyAC 220 ± 10 %, 50 Hz.Heating power1000W(auxiliary heating), 600W(temperature control heating)Power for stirrer: 6W, rotating speed1200RPMTemperature rangeroom temperature~100 ºC.Temperature control accuracy±0.01ºC.Timer0.0s~999.9sConstant temperature bath20L, double shall structure.Ambient temperature-10ºC~+35ºCRelative humidity<85%.Maximum power consumption1800W.Capillary viscometer tubes(Pinkevitch viscometer)7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mmDimension530mm×400mm×670mm Net weightabout 42Kg
1. Power supply: AC 220 ± 10 %, 50 Hz.
2. Heating power:1000W(auxiliary heating), 600W(temperature control heating)
3. Power for stirrer: 6W, rotating speed:1200RPM
4. Temperature range: room temperature~100 ºC.
5. Temperature control accuracy: ±0.01ºC.
6. Timer: 0.0s~999.9s
7. Constant temperature bath: 20L, double shall structure.
8. Ambient temperature: -10ºC~+35ºC
9. Relative humidity: <85%.
10.Maximum power consumption: 1800W.
11.Capillary viscometer tubes(Pinkevitch viscometer): 7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm
12. Dimension: 530mm×400mm×670mm     Net weight: about 42Kg
