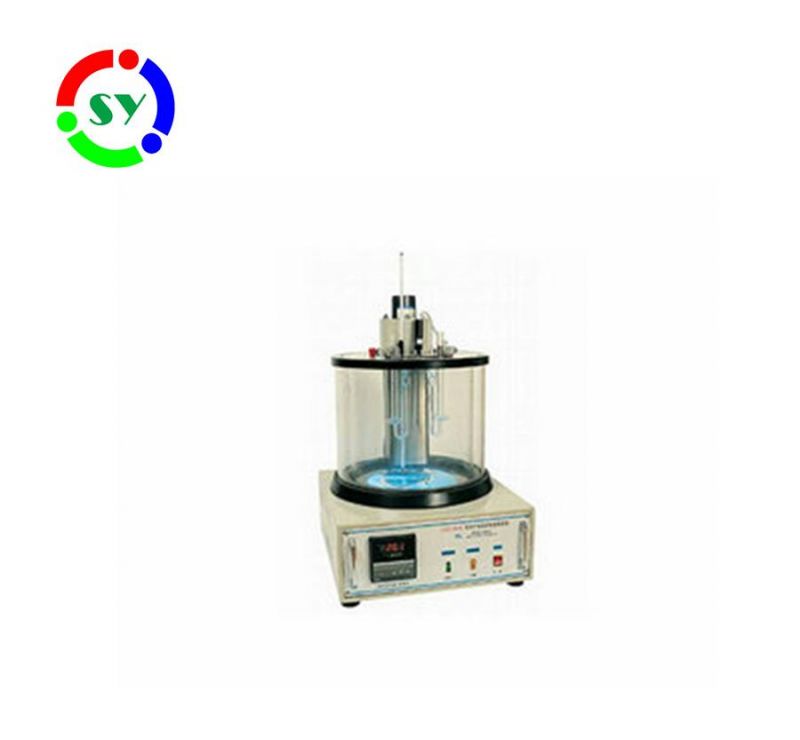

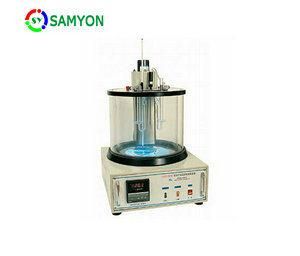

Kinematic Viscometer to Determine Kinematic Viscosity of Liquid Petroleum
Beijing Samyon Instruments Co., Ltd.- Heating Power：1600W
- Stirring Motor：Power Is 6W, Rotating Speed 1200rpm
- Constant Temperature Bath：20L, Double Shell Structure
- Maximum Power Consumption：1800W
- Transport Package：Carton Case
- Specification：SGS
Base Info
- Model NO.：Sy-265c
- Trademark：SAMYON
- Origin：Cn
- HS Code：903180
- Production Capacity：100sets Per Month
Description
I. Main technical features
1. This instrument adopts LCD temperature controller,having features of rapid temperature control,fast response,small overshoot.The temperature control accuracy can reach ±0.1ºC.
2. The instrument adopts hard glass bath and heat preservation shell(double shell structure).The heat preservation property is good. Easy to observe the sample.
3. The instrument adopts desktop and all-in-one design.The integrality is good.Convenient to operate.
4. The instrument adopts electric stirring device.The temperature in water bath is uniform.
II.Main technical specifications
| Power supply | AC(220±10%)V,50Hz±5% |
| Heating power | 1600W |
| Stirring motor | Power is 6W,rotating speed 1200RPM |
| Temperature control range | Room temperature~100ºC |
| Temperature control accuracy | ±0.1ºC |
| Constant temperature bath | 20L,double shell structure |
| Working environment | Ambient temperature: room temperature~35ºC; Relative humidity: ≤85% |
| Temperature sensor | RTD, Pt100 |
| Maximum power consumption | 1800W |
| Capillary viscometer tubes(Pinkevitch viscometer) | 7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm |
| Dimension | 530mm×400mm×670mm; Net weight: about 33Kg |
1. Power supply: AC(220±10%)V,50Hz±5%
2. Heating power: 1600W
3. Stirring motor: Power is 6W,rotating speed 1200RPM
4. Temperature control range: Room temperature~100ºC
5. Temperature control accuracy: ±0.1ºC
6. Constant temperature bath: 20L,double shell structure
7. Working environment: Ambient temperature: room temperature~35ºC
Relative humidity: ≤85%
8. Temperature sensor: RTD, Pt100
9. Maximum power consumption: 1800W
10. Capillary viscometer tubes(Pinkevitch viscometer):7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
11. Dimension: 530mm×400mm×670mm
Net weight: about 33Kg
