• Model NO.：Sy-0755
• Trademark：SAMYON
• Origin：Cn
• HS Code：903180
• Production Capacity：100sets Per Month


Summary

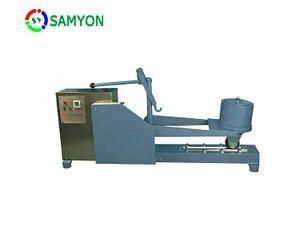

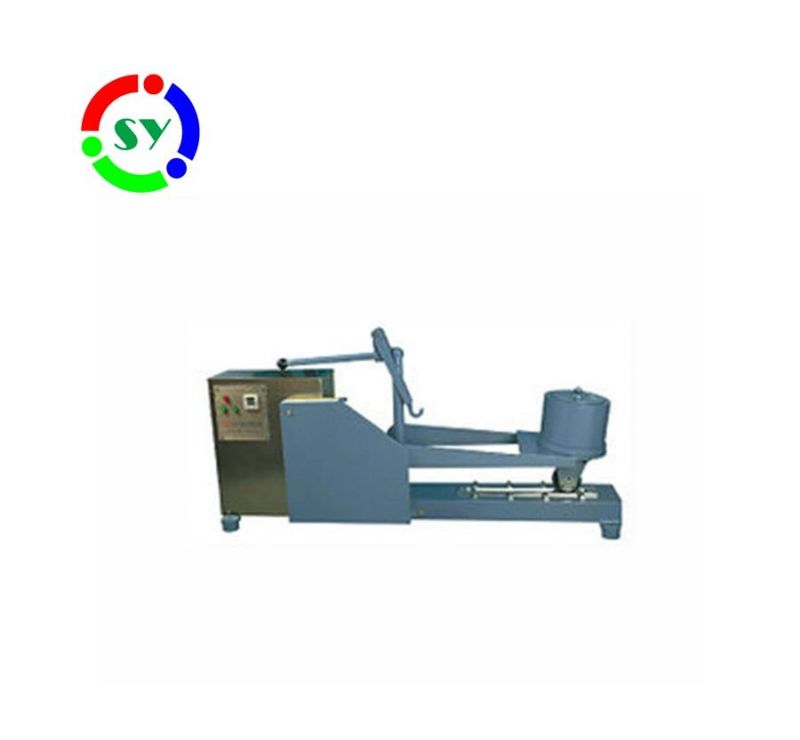

The instrument is designed and made as per T 0755-2011 "Load Wheel Burnt-on Sand Test for Slurry Mixtures" in the Traffic Standard of the People's Republic of China JTG E20-2011 "Highway Engineering Bitumen and Bituminous Mixtures Test Code" .It is suitable to control the upper limit of asphalt used in the slurry mixtures .It can confirm the best asphalt content of slurry mixtures together with wet wheel abrasion test .

I.Main technical Characteristics
1.The instrument adopts floor type structure .The structure design,the specifications size of test apparatus ,act,each can meet the requirement of T 0755 standard .Novel design ,reasonable structure and convenient to use .
2.The part design of the mechanical transmission has safety protection device to prevent from injuring the operator accidently .It is stable and safe .
3.Frequency of rolling compaction can be preset by the operator during the test .When the instrument working ,it can automatic count ,until the count value is equal to the set value ,the counting stop and the instrument stop working .

II.Main technical parameters and specifications
1.The frequency of rolling compaction :44 time/min +1time/min
2.Crank radius :152mm+2mm
3.The size of the rubber wheel :diameter is 76.5mm+1mm and width is 26.0mm+1.0mm
4.The hardness of the rubber wheel :HRC60~HRC70
5.Loaded weight of the rubber wheel :total weight for the trolley horizontally placed is 56.7kg+0.5kg
6.Test mode :thickness 6.4mm and 12.7 mm are taken as the options .Inner dimension is 50mm*380mm
7.Sand frame :inner dimension is 355.0mm*38.0mm*0.5mm
8.Steel cover :dimension is 353mm*36mm*3mm
9.Physical dimension :1400mm*260mm*450mm
10.Power supply :AC380V,50Hz,550W(three-phase four-wire system,with zero line)

III.Choice of the accessories
1.Platform balance :weigh 100kg ,reciprocal sensibility ≤0.5kg
2.Balance :weigh 2000g,reciprocal sensibility ≤1g
3.Bake oven :with forced draft ,the temperature can be controlled in (60+3)ºC
