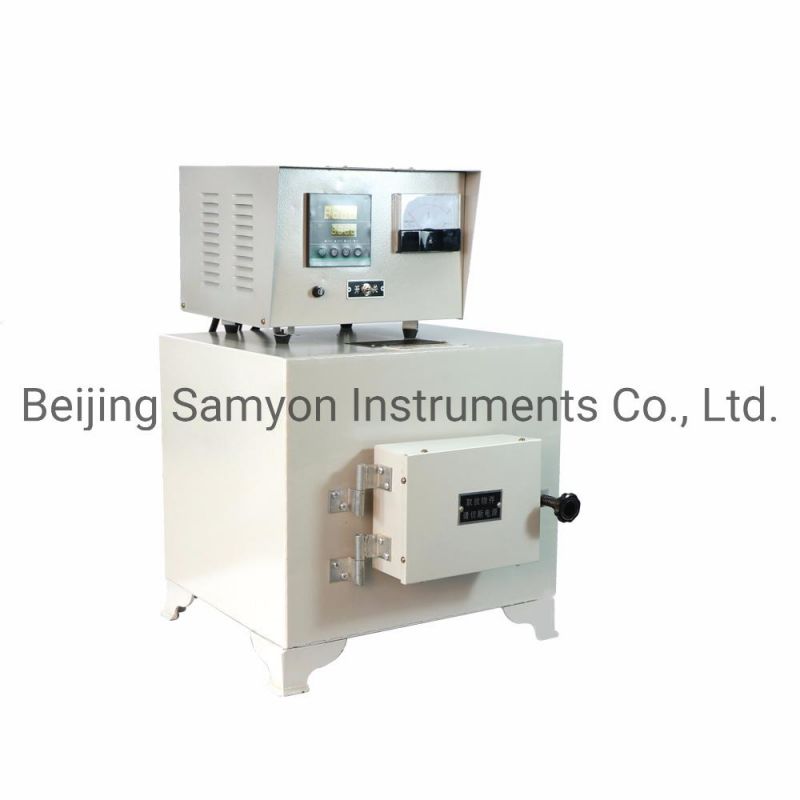

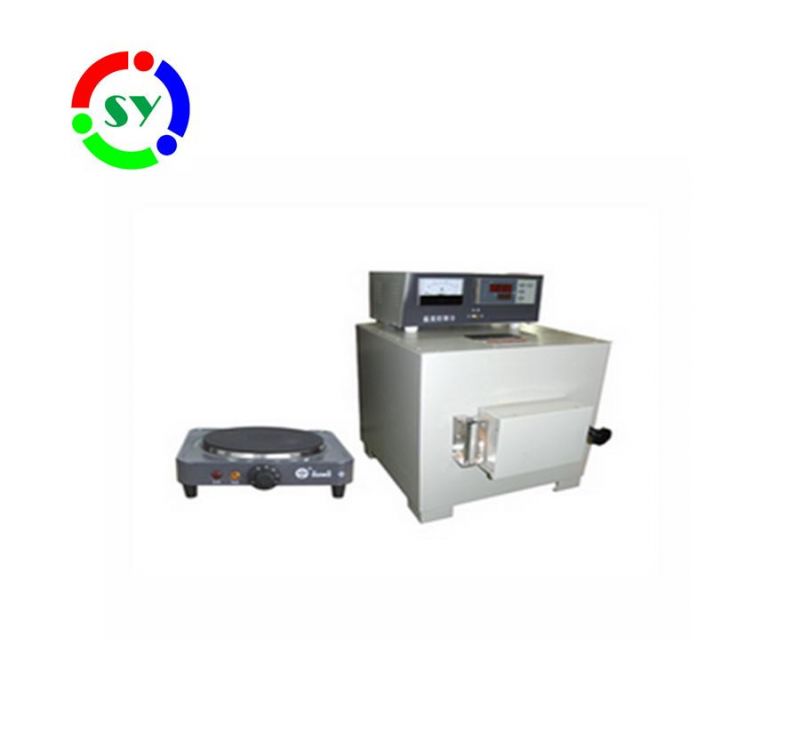

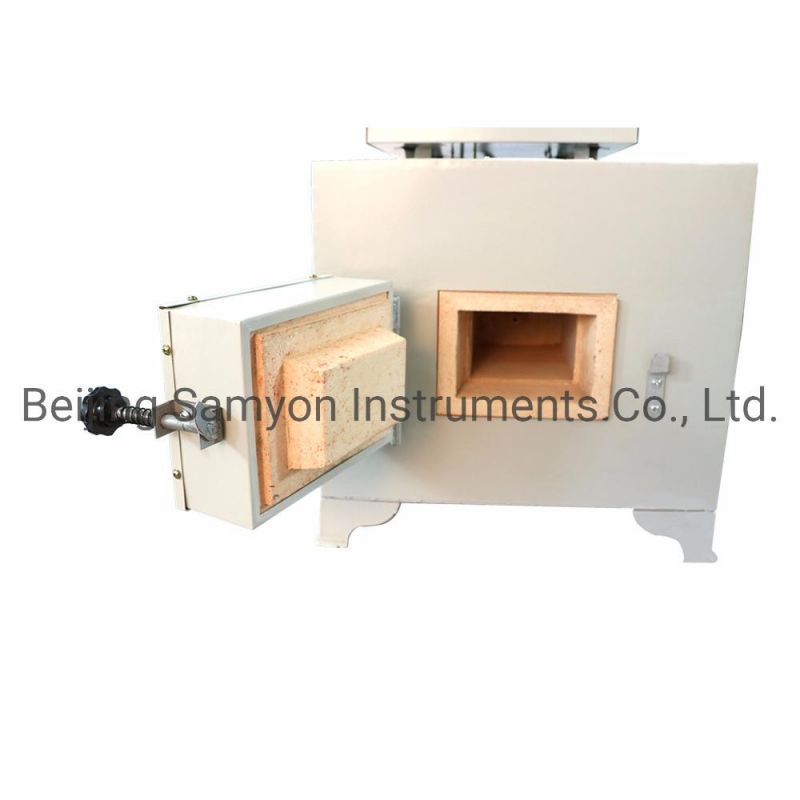

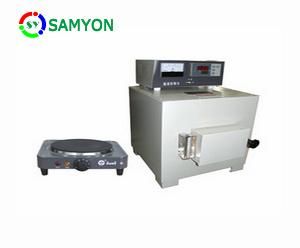

Sy-508 Petroleum Products Ash Content Tester

Beijing Samyon Instruments Co., Ltd.
  • Power Supply：AC220V+,-10%, 50 Hz
  • Rated Power：2.5 Kw
  • Rated Temperature：1000oc
  • Temperature Rising Time for Empty Furnac：=<50 Min
  • Usage：Ash Content in The Petroleum Products
  • Transport Package：Wood Carton

Base Info

  • Model NO.：SY-508
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

Rated controllable power5000WPower supplyAC(220±10%)V, 50HzMaximum control temperature1200ºCTemperature controllerDTW2001ThermocoupleWRN-010Dimension500mm×300mm×235mm
(1) Rated controllable power: 5000W
(2) Power supply: AC(220±10%)V, 50Hz
(3) Maximum control temperature: 1200ºC
(4) Temperature controller: DTW2001
(5) Thermocouple: WRN-010
(6) Dimension: 500mm×300mm×235mm
3. Electric heating plateRated power1500WPower supplyAC(220±10%)V, 50HzRated temperature400ºCHeating power(1~6)grades, continuously adjustableDiameter of heating plateΦ85mmDimension280mm×250mm×90mm
(1)Rated power: 1500W
(2) Power supply: AC(220±10%)V, 50Hz
(3) Rated temperature: 400ºC
(4) Heating power: (1~6)grades, continuously adjustable.
(5) Diameter of heating plate: Φ85mm
(6) Dimension: 280mm×250mm×90mmSy-508 Petroleum Products Ash Content TesterSy-508 Petroleum Products Ash Content Tester Sy-508 Petroleum Products Ash Content TesterSy-508 Petroleum Products Ash Content Tester
