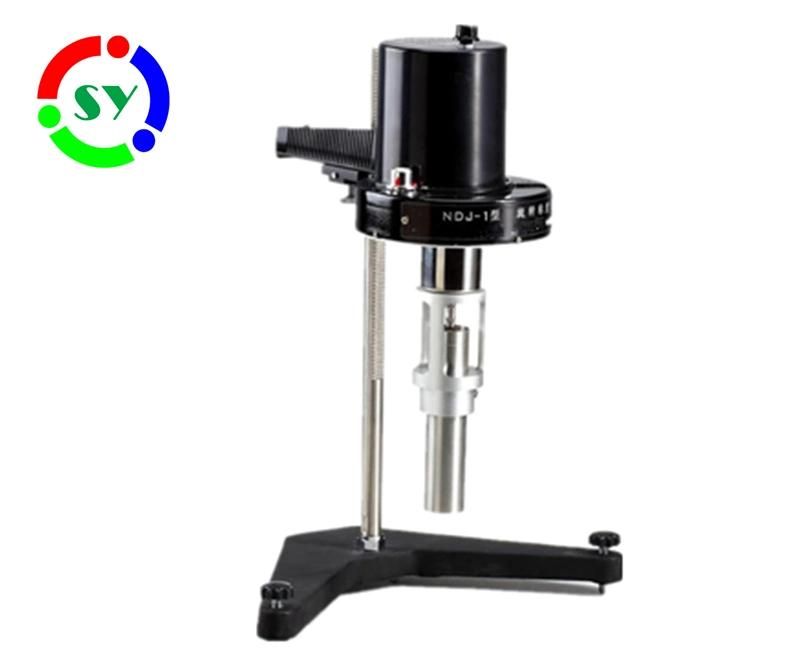

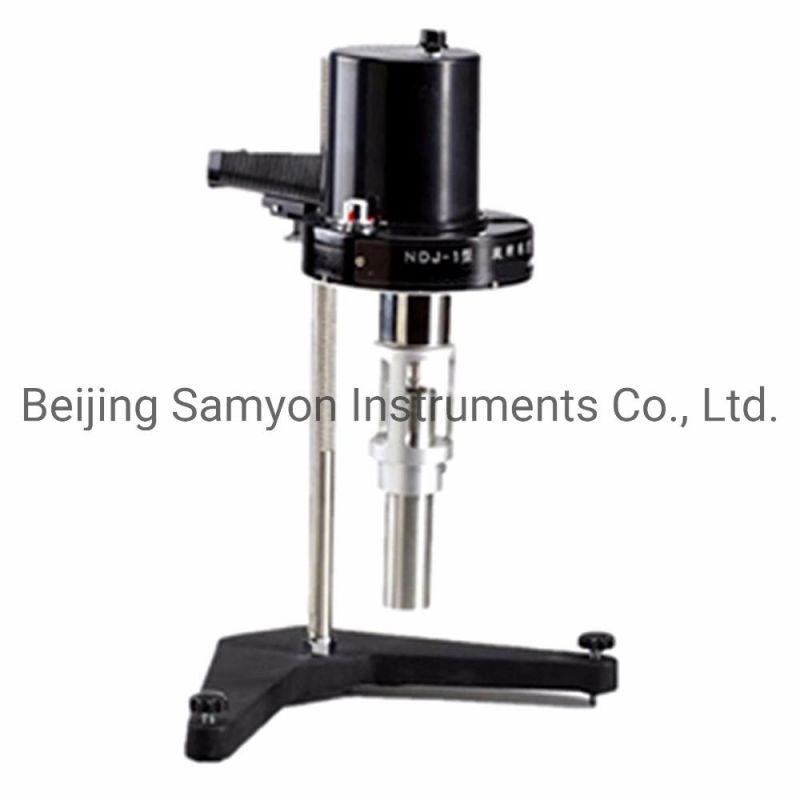

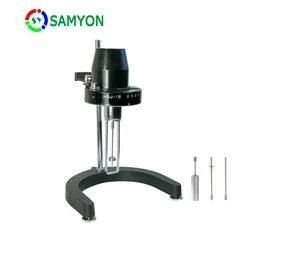

Ndj-1 Rotational Viscometer to Determine Viscosities

Beijing Samyon Instruments Co., Ltd.
  • After-sales Service：Online Video, Online Technical Support
  • Warranty：1 Year
  • Measurement Range：10 MPa.S~100000MPa.S
  • Measuring Accuracy：+,-5% (F.S)
  • Spindles：No.1, 2, 3 ,4. Four Spindles in Total
  • Rotating Speed：6 Rpm, 12 Rpm, 30 Rpm, and 60 Rpm

Base Info

  • Model NO.：Ndj-1
  • Transport Package：Carton Case
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：9031809090
  • Production Capacity：100sets Per Month

Description

Measurement range10 mPa·s~100000mPa·sMeasuring accuracy±5% (F·S)SpindlesNo.1, 2, 3 ,4. Four spindles in totalRotating speed6 RPM, 12 RPM, 30 RPM, and 60 RPMPower supplyAC 220V±10%, 50Hz±10%Dimension300×300×450 mmNet weight1.5 kg (not including the holder)Ndj-1 Rotational Viscometer to Determine ViscositiesNdj-1 Rotational Viscometer to Determine Viscosities Ndj-1 Rotational Viscometer to Determine ViscositiesNdj-1 Rotational Viscometer to Determine Viscosities

I. Summary
The instrument is designed and made as per the Company Standard of Shanghai Q/YXYY20-2000 "NDJ-1 Rotational Viscometer". It is used to determine viscosities of greases, paints, plastics, foods, pharmaceuticals, adhesives, and various fluids.

II. Main technical specifications
1. Measurement range: 10 mPa·s~100000mPa·s
2. Measuring accuracy: ±5% (F·S)
3. Spindles: No.1, 2, 3 ,4. Four spindles in total
4. Rotating speed: 6 RPM, 12 RPM, 30 RPM, and 60 RPM
5. Power supply: AC 220V±10%, 50Hz±10%
6. Dimension: 300×300×450 mm
7. Net weight: 1.5 kg (not including the holder)Measurement range10 mPa·s~100000mPa·sMeasuring accuracy±5% (F·S)SpindlesNo.1, 2, 3 ,4. Four spindles in totalRotating speed6 RPM, 12 RPM, 30 RPM, and 60 RPMPower supplyAC 220V±10%, 50Hz±10%Dimension300×300×450 mmNet weight1.5 kg (not including the holder)
