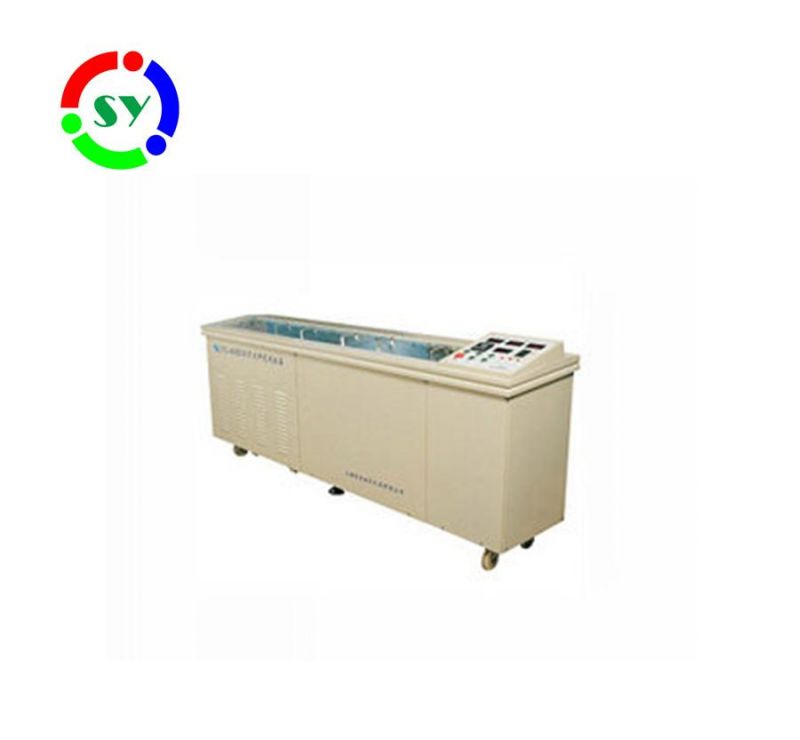

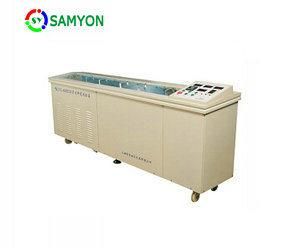

Sy-4508c Bitumen Ductility Machine to Determine The Distance

Beijing Samyon Instruments Co., Ltd.
  • Measurement Distance：1.5m(±10mm)
  • Heating Mode：Electric Heater
  • Heating Power：3000W
  • Temperature Control Range：(5~49)Oc
  • Measurement Accuracy：+,-1 Mm.
  • Transport Package：Carton Case

Base Info

  • Model NO.：SY-4508C
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

Power supplyAC220V(-5%~+10%),50HzMeasurement distance1.5m(±10mm)Heating modeElectric heaterHeating power3000WLiquid circulationBy magnet circulation pumpTemperature control range(5~49)ºC,adjustable. Resolution is 0.01ºCTemperature control accuracy±0.1ºCTensile speed10mm/min and 50mm/min, two gradesMeasurement accuracy±1 mmDuctility displayDigital display after data processed by a single chip machineRefrigerationCompressor 1.25P, input power is 950WAmbient temperature(-10~+35)ºCRelative humidity≤85%Maximum power consumption4100WOverall dimension2365mm×520mm×1000mm
1. Power supply:  AC220V(-5%~+10%),50Hz
2. Measurement distance:  1.5m(±10mm)
3. Heating mode:   Electric heater
4. Heating power:  3000W
5. Liquid circulation:   By magnet circulation pump
6. Temperature control range:  (5~49)ºC,adjustable. Resolution is 0.01ºC
7. Temperature control accuracy:   ±0.1ºC.
8. Tensile speed:   10mm/min and 50mm/min, two grades
9. Measurement accuracy:   ±1 mm.
10. Ductility display: Digital display after data processed by a single chip machine.
11. Refrigeration: Compressor 1.25P, input power is 950W
12. Ambient temperature:  (-10~+35)ºC
13. Relative humidity:  ≤85%
14. Maximum power consumption:  4100W
15. Overall dimension:  2365mm×520mm×1000mmSy-4508c Bitumen Ductility Machine to Determine The DistanceSy-4508c Bitumen Ductility Machine to Determine The Distance Sy-4508c Bitumen Ductility Machine to Determine The DistanceSy-4508c Bitumen Ductility Machine to Determine The Distance
