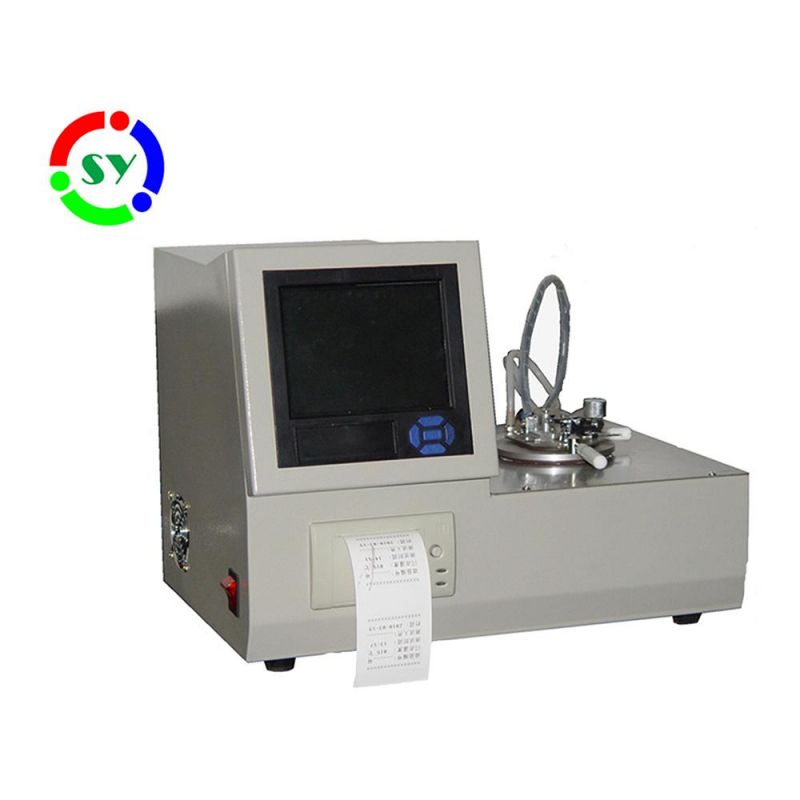

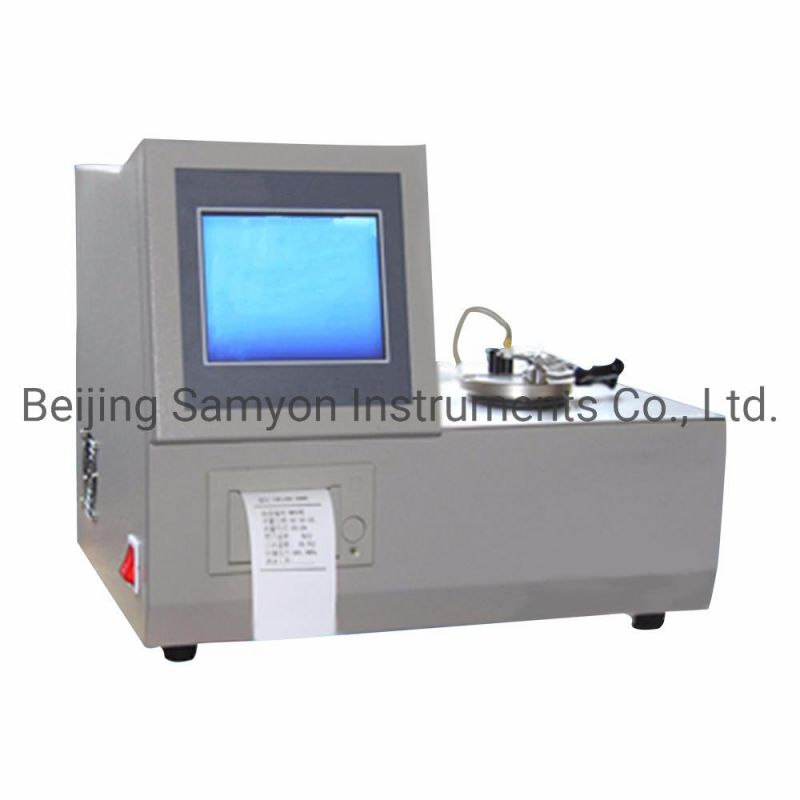

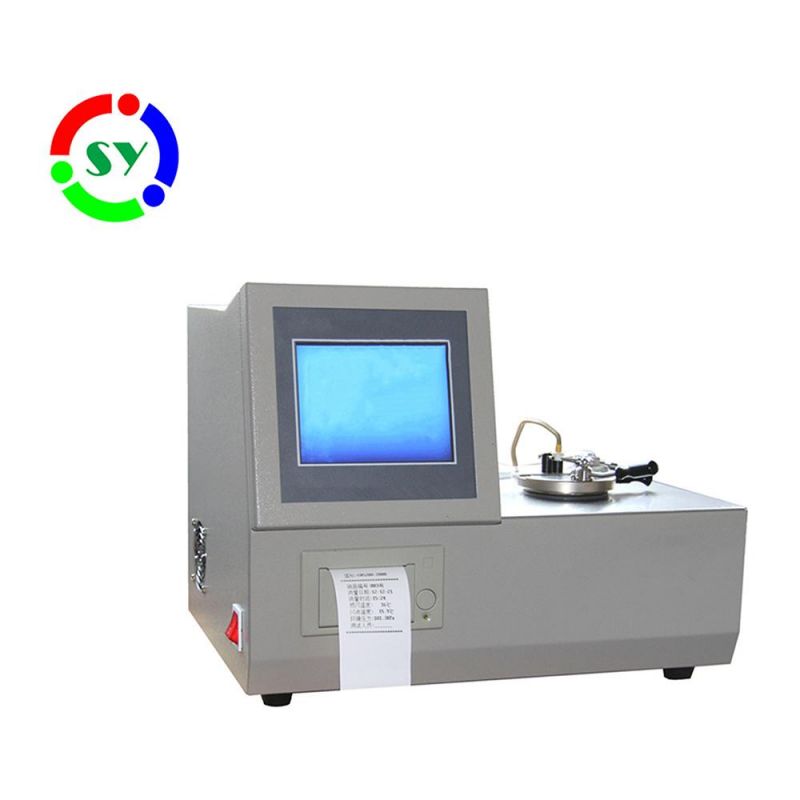

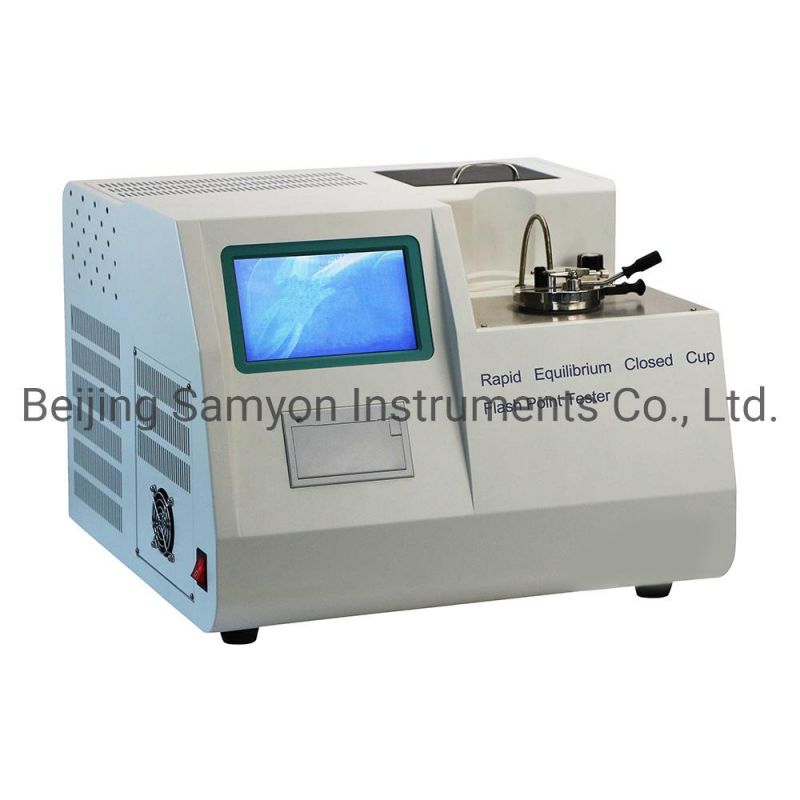

Sy-5208 Rapid Equilibrium Closed Cup Flash Point Tester

Beijing Samyon Instruments Co., Ltd.

Flash Point Measuring Range：-30oc~50oc
Temperature Control Precision：+,-0.5oc
Igniting Device：Electric Igniting Gun
Maximum Power Consumption：300W
Transport Package：Carton Case
Specification：SGS

Base Info

Model NO.：SY-5208
Trademark：SAMYON
Origin：Cn
HS Code：903180
Production Capacity：100sets Per Month

Description

Power supplyAC(220±10%)V, 50Hz Flash point measuring range-30ºC~50ºC Precision of determinationAbsolute difference value between two determinations is lower than 2ºC(same operator)
Absolute difference value between two determinations is lower than 3ºC(different operator) Temperature control precision±0.5ºCIgniting deviceElectric igniting gunCooling modeSemiconductor(with cold water cycle at external connection)Maximum power consumption300WAmbient temperature5ºC~30ºCRelative humidity30%~80%Dimension370mm×280mm×280mm
1. Power supply: AC(220±10%)V, 50Hz
2. Flash point measuring range: -30ºC~50ºC
3. Precision of determination:
Absolute difference value between two determinations is lower than 2ºC(same operator)
Absolute difference value between two determinations is lower than 3ºC(different operator)
4. Temperature control precision: ±0.5ºC
5. Igniting device:Electric igniting gun
6. Cooling mode:Semiconductor(with cold water cycle at external connection)
7. Maximum power consumption:300W
8. Ambient temperature:5ºC~30ºC
9. Relative humidity:30%~80%
10. Dimension:370mm×280mm×280mm Sy-5208 Rapid Equilibrium Closed Cup Flash Point Tester

Sy-5208 Rapid Equilibrium Closed Cup Flash Point Tester

Sy-5208 Rapid Equilibrium Closed Cup Flash Point Tester

Sy-5208 Rapid Equilibrium Closed Cup Flash Point Tester

Sy-5208 Rapid Equilibrium Closed Cup Flash Point Tester
