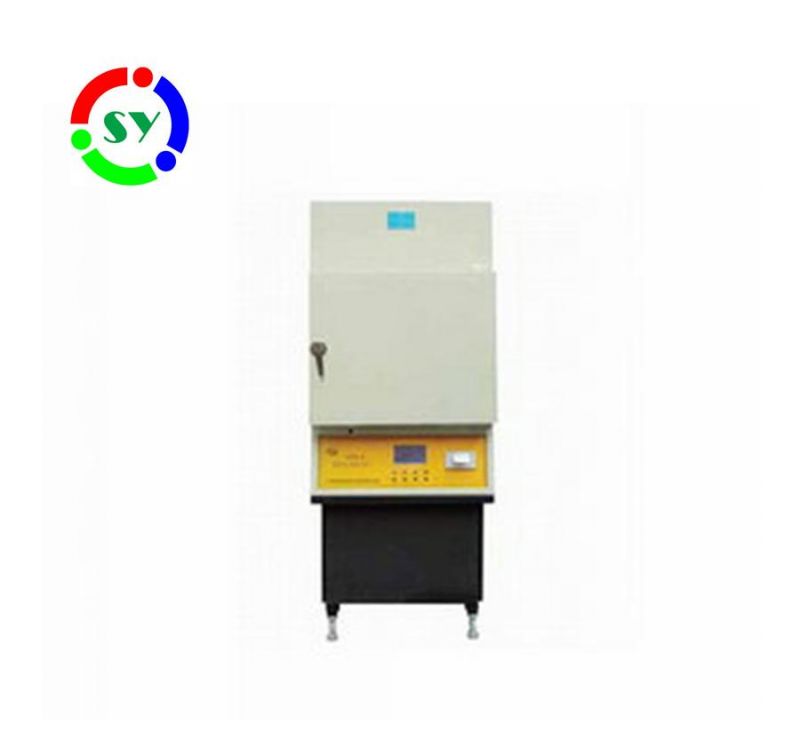

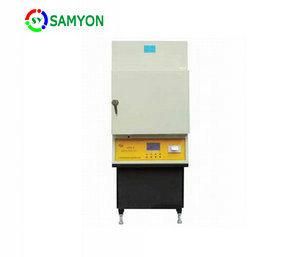

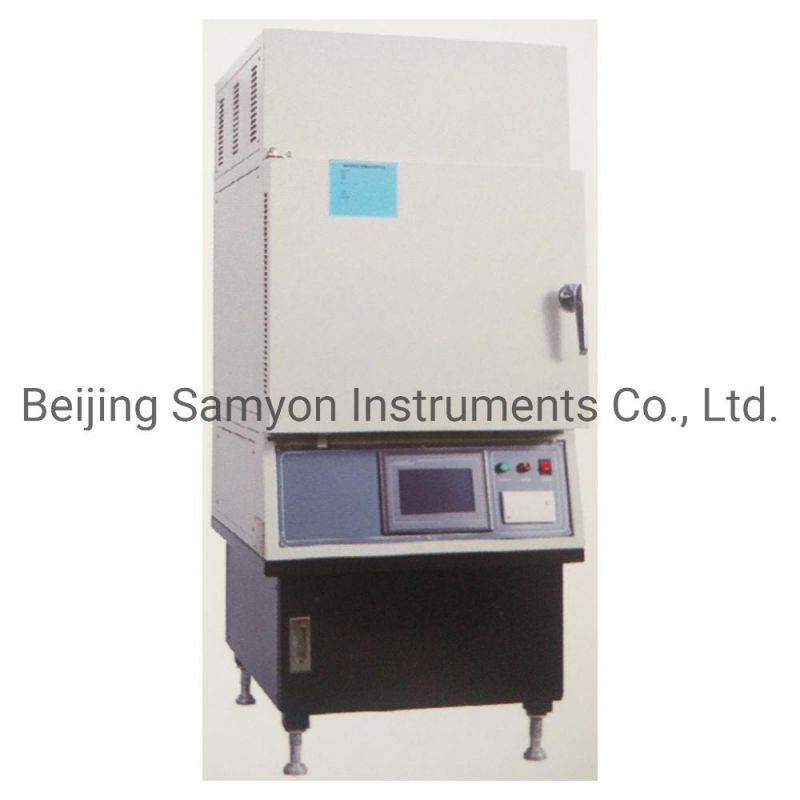

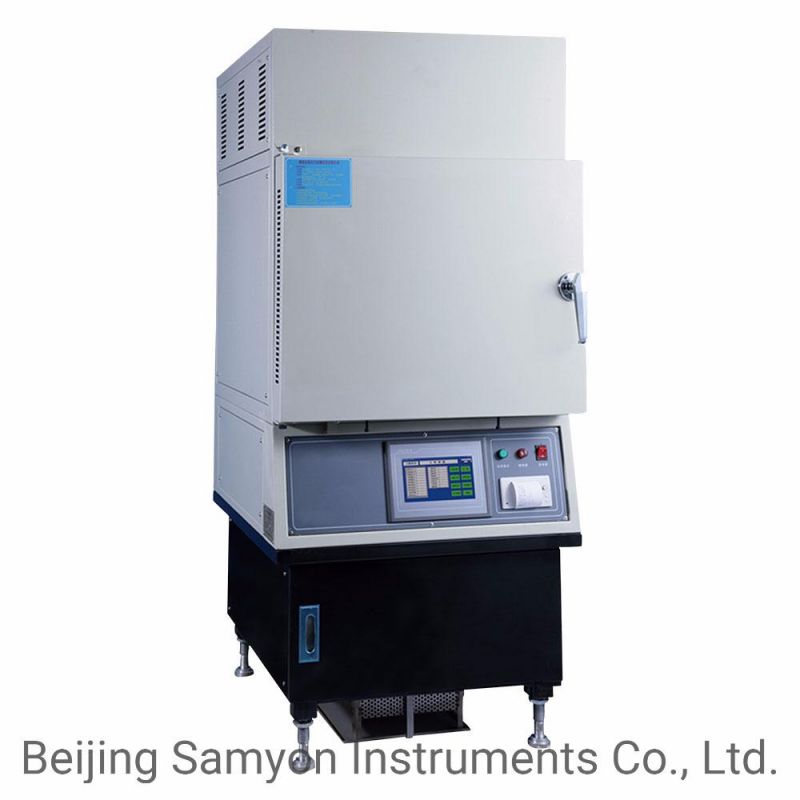

Sy-6307 Asphalt Content Tester/ Bitumen Content Tester

Beijing Samyon Instruments Co., Ltd.
  • After-sales Service：Online Video, Online Technical Support
  • Warranty：1 Year
  • Max. Sample Weight：4000g
  • Commendable Sample Weight：1000~2000 G
  • Combustion Chamber Maximum Temperature：800oc
  • After-Burner Maximum Temperature：Can Reach to 900 Oc

Base Info

  • Model NO.：SY-6307
  • The Balance Accuracy：0.1g
  • Asphalt Content Test Accuracy：0.10%
  • Transport Package：Carton Case
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：9031809090
  • Production Capacity：100sets Per Month

Description

1.Max. sample weight :4000g ,commendable sample weight :(1000~2000) g .
2.Combustion chamber maximum temperature :800ºC ,accuracy :+5 ºC ,standard working temperature :538 ºC
3.After-burner maximum temperature :can reach to 900 ºC .
4.Combustion and filtration : it adopts after-burner the second combustion and high temperature filtration technology .The test exhaust emission can reach the standard .
5.The balance accuracy :0.1g ,the range of balance :10kg(adopt American imported special balance )
6.Asphalt content test accuracy :0.10% ;
7.Test time : 1200g sample only needs 30 minutes ;
8.The dimension of the combustion chamber :350mm*440mm*330mm ;
9.Physical dimension :700mm*800mm*1550mm ;
10.Power supply :AC380V+10V,50Hz,current meter ≤ 40A(three-phase four-wire system,with zero line)Sy-6307 Asphalt Content Tester/ Bitumen Content TesterSy-6307 Asphalt Content Tester/ Bitumen Content TesterSy-6307 Asphalt Content Tester/ Bitumen Content TesterSy-6307 Asphalt Content Tester/ Bitumen Content Tester
