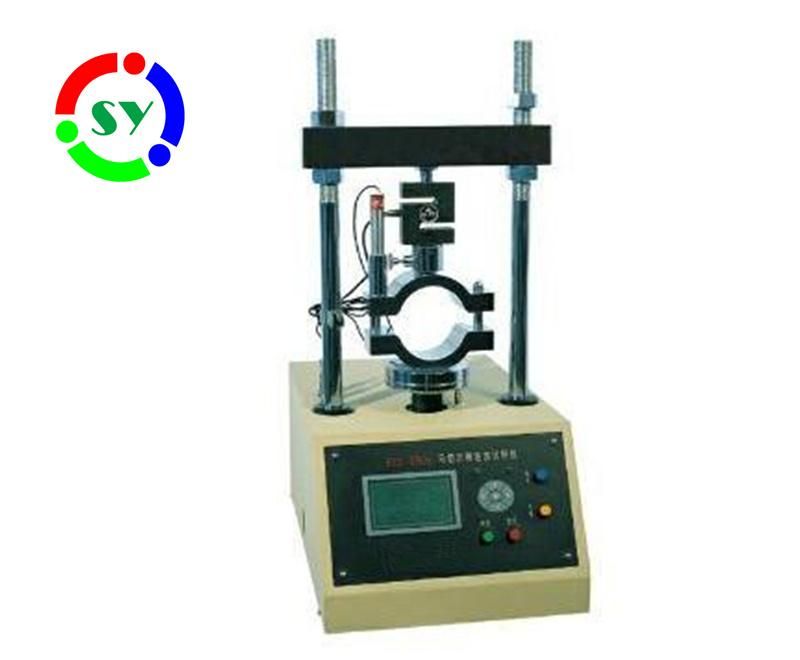

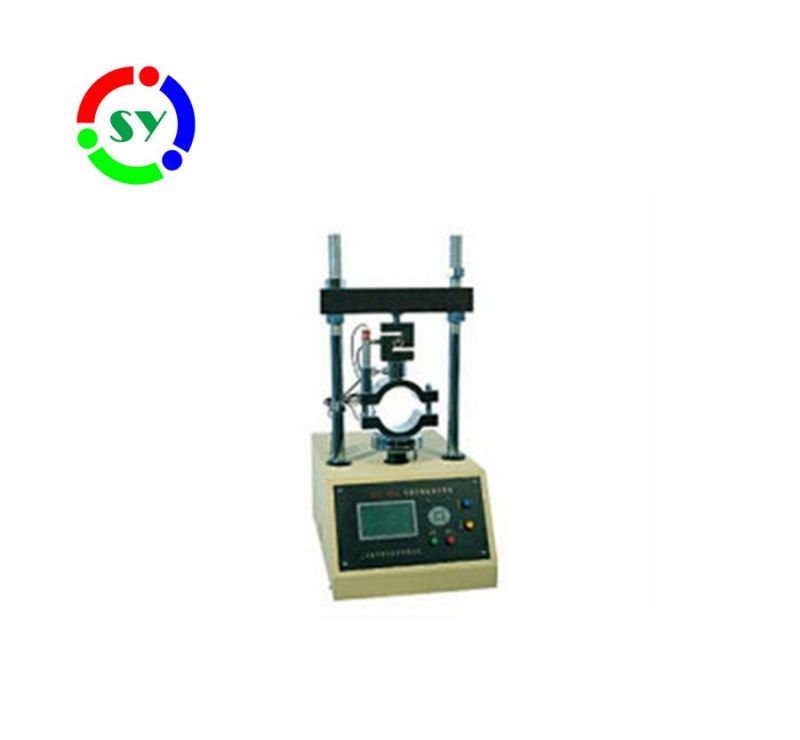

Sy-0709A Mashall Stability Tester/ Stability Tester

Beijing Samyon Instruments Co., Ltd.

Maximum Load：50kn
Measuring Range：=<40kn
Measuring Bias：0.1kn
Overload Protection：Automatically Protect When Load Is Over 39kn
Vertical Deformation(Flow Value)：Range 0~20mm, Bias =<+,-0.05mm
Transport Package：Carton Case

Base Info

Model NO.：SY-0709A
Specification：SGS
Trademark：SAMYON
Origin：Cn
HS Code：903180
Production Capacity：100sets Per Month

Description

1. Maximum load 50kN2. Measuring range ≤40kN3. Measuring bias ≤±0.1kN4. Overload protection Automatically protect when load is over 39kN5. Vertical deformation(flow value) Range 0~20mm, bias ≤±0.05mm6. Lifting rate for pressure machine (50±5)mm/min7. Communication port RS2328. Power supply AC220V±10%,50Hz9. Ambient temperature 0ºC~60ºC10.Dimension 600mm×380mm×840mm11.Motor power 550W12.Net weight 98kg
1. Maximum load: 50kN
2. Measuring range: ≤40kN
3. Measuring bias: ≤±0.1kN
4. Overload protection: Automatically protect when load is over 39kN
5. Vertical deformation(flow value): Range 0~20mm, bias ≤±0.05mm
6. Lifting rate for pressure machine: (50±5)mm/min
7. Communication port: RS232
8. Power supply: AC220V±10%,50Hz
9. Ambient temperature: 0ºC~60ºC
10.Dimension: 600mm×380mm×840mm
11.Motor power: 550W
12.Net weight: 98kg Sy-0709A Mashall Stability Tester/ Stability Tester

Sy-0709A Mashall Stability Tester/ Stability Tester

Sy-0709A Mashall Stability Tester/ Stability Tester

Sy-0709A Mashall Stability Tester/ Stability Tester

Sy-0709A Mashall Stability Tester/ Stability Tester
