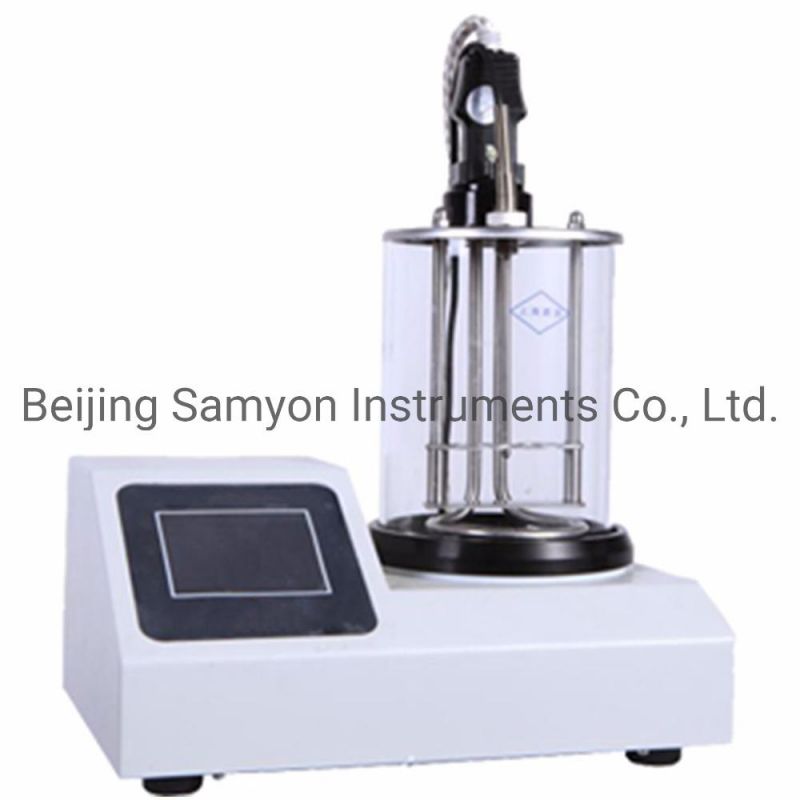

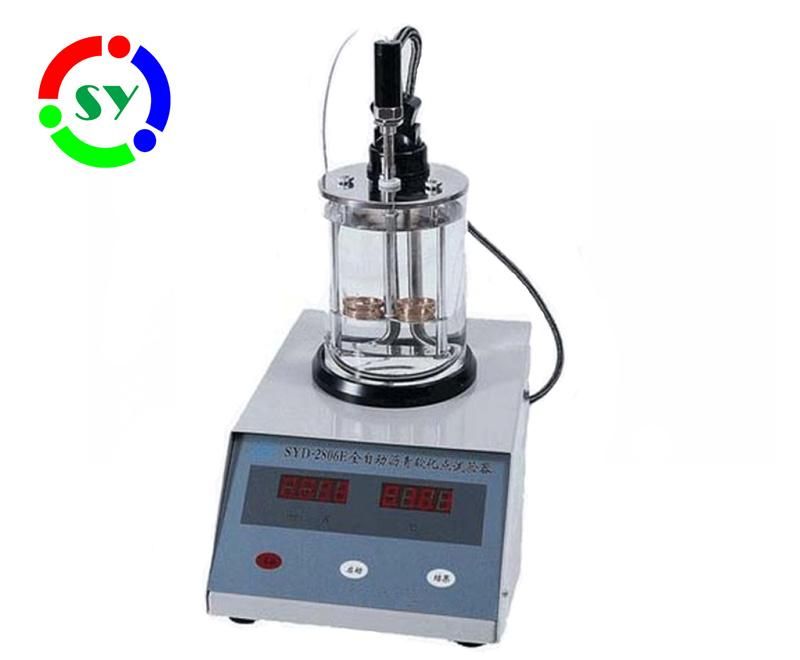

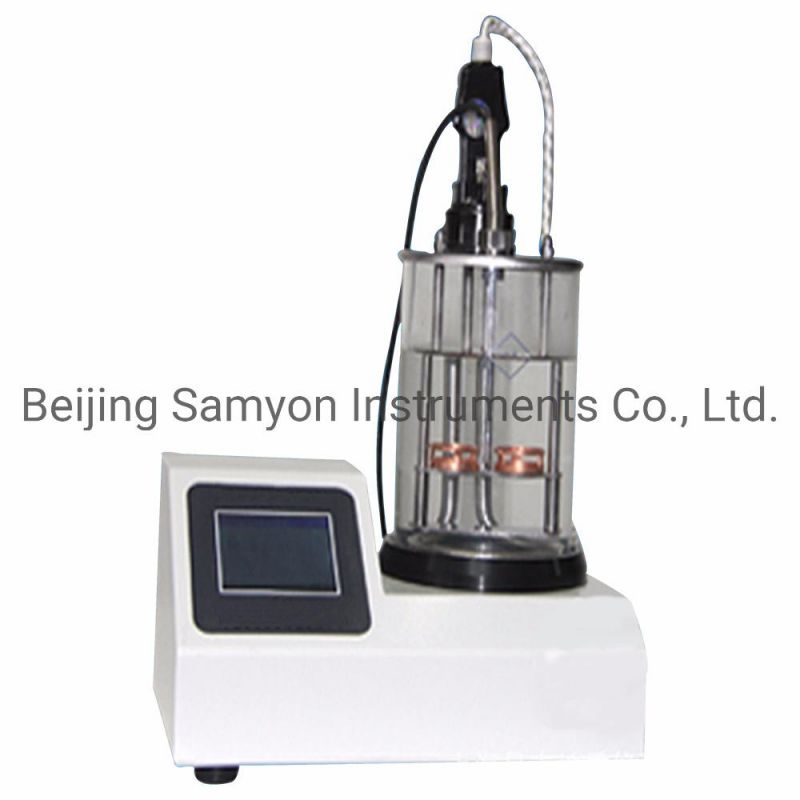

Sy-2806f Asphalt Softening Point Tester

Beijing Samyon Instruments Co., Ltd.
  • Measurement Range：32oc~150 Oc+,-1.0 Oc
  • Heating Medium：Glycerin
  • Heating Power：800 W
  • Relative Humidity：=<85%
  • Transport Package：Carton Case
  • Specification：SGS

Base Info

  • Model NO.：SY-2806F
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

1. Power supply AC 220V±10%, 50 Hz2. EnvironmentThe room temperature should be less than 35 ºC and keep stable without air convection.3. Measurement range32ºC~150 ºC; ±1.0 ºC4. StirrerThe stirring speed can be continuously adjusted.5. Heating power800 W6. Heating mediumglycerin7. Beaker cubage1000 ml8. Relative humidity≤85%9. Total power consumption≤ 850 W
1. Power supply: AC 220V±10%, 50 Hz
2. Environment: The room temperature should be less than 35 ºC and keep stable without air convection.
3. Measurement range: 32ºC~150 ºC; ±1.0 ºC
4. Stirrer: The stirring speed can be continuously adjusted.
5. Heating power: 800 W
6. Heating medium: glycerin
7. Beaker cubage: 1000 ml
8. Relative humidity: ≤85%
9. Total power consumption: ≤ 850 W
Sy-2806f Asphalt Softening Point Tester

Sy-2806f Asphalt Softening Point Tester

Sy-2806f Asphalt Softening Point Tester

Sy-2806f Asphalt Softening Point Tester


I. Summary
The instrument is designed and made as per the National Standard of People's Republic of China GB/T4507 "Test Methods for Softening Point of Petroleum Asphalt", and T0608 "Asphalt Softening Point Test (Ring and Ball Methods)" in the Industry Standard of People's Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts. It is the best instrument for asphalt manufacturing companies, highway and bridge construction companies, relative college and universities, and scientific research institutes.
It adopts microcomputer controlling, linear heating and automatic stirring mode, it can make tests for two samples at the same time. It can automatically show measurement results after test. It is convenient, efficient, and reliable. It is the best instrument used to determine softening point of petroleum asphalt in the asphalt inspection laboratory.
II. Main technical specifications and parameters
1. Power supply: AC 220V±10%, 50 Hz
2. Environment: The room temperature should be less than 35 ºC and keep stable without air convection.
3. Measurement range: 32ºC~150 ºC; ±1.0 ºC
4. Stirrer: The stirring speed can be continuously adjusted.
5. Heating power: 800 W
6. Heating medium: glycerin
7. Beaker cubage: 1000 ml
8. Relative humidity: ≤85%
9. Total power consumption: ≤ 850 W
