Analysis Instrument

Online Residual Chlorine Analyzer with pH Compensation pH FCL

Shanghai Chunye Instrument Technology Co., Ltd.
  • Appliance:Food Analysis, Medical Research, Biochemistry, Food Analysis, Medical Research, Biochemistry
  • Portable:Portable, Portable

Base Info

  • Model NO.:T6055
  • Certification:RoHS, CE, ISO9001, RoHS, CE, ISO9001
  • Type:Concentration Meter, Portable water quality analyzer
  • Analysis Method:Chemical Analysis
  • Application:Agriculture & Food
  • Operating Mode:Keyboard
  • Off Mode:Automatic
  • Chemical Analysis Type:electrochemistry
  • Measure range:0~20.00mg,L
  • Waterproof grade:IP65
  • Accuracy:+,-1%F.S
  • Resolution:0.001mg,L
  • Transport Package:1 PCS,Carton
  • Specification:144x144x138mm
  • Trademark:twinno
  • Origin:Shanghai, China
  • HS Code:9027809900
  • Production Capacity:2000PCS,Month
  • Package size per unit product:25.00cm * 26.00cm * 30.00cm
  • Gross weight per unit product:3.000kg
  • Lead Time:7 days (1 - 50 Sets) 15 days (51 - 200 Sets) 30 days (201 - 500 Sets) To be negotiated ( > 500 Sets)

Description

Basic Info.

Model NO. T6055 Certification RoHS, CE, ISO9001, RoHS, CE, ISO9001 Type Concentration Meter, Portable water quality analyzer Analysis Method Chemical Analysis Application Agriculture & Food Operating Mode Keyboard Off Mode Automatic Chemical Analysis Type electrochemistry Measure range 0~20.00mg/L Waterproof grade IP65 Accuracy +/-1%F.S Resolution 0.001mg/L Transport Package 1 PCS/Carton Specification 144x144x138mm Trademark twinno Origin Shanghai, China HS Code 9027809900 Production Capacity 2000PCS/Month

Packaging & Delivery

Package size per unit product 25.00cm * 26.00cm * 30.00cm Gross weight per unit product 3.000kg Lead Time 7 days (1 - 50 Sets)
15 days (51 - 200 Sets)
30 days (201 - 500 Sets)
To be negotiated ( > 500 Sets)

Product Description


Online Residual Chlorine Analyzer with pH Compensation pH FCL


Online Residual Chlorine Analyzer with pH Compensation pH FCL

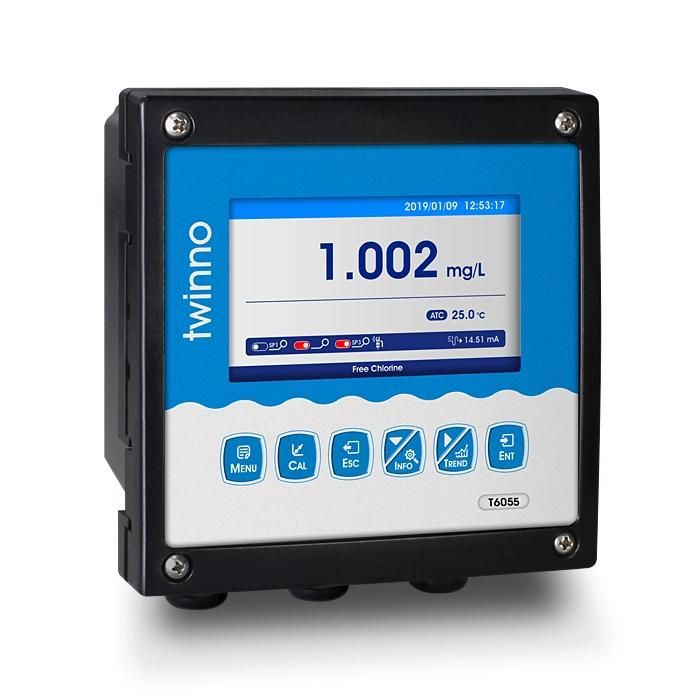

T6055 Online Residual Chlorine Meter

Industrial on-line residual chlorine meter is a water quality on-line monitoring and control instrument with microprocessor. It is widely used in drinking water treatment plant, drinking water distribution network, water quality treatment engineering,swimming pool, sewage treatment, water quality disinfection and other industrial processes, to continuously monitor and control the residual chlorine value, pH value & temperature value in water.


Instrument features:

Large Color LCD display.
Intelligent menu operation.
data record & curve display.
Multiple automatic calibration functions.
Three relay control switches.
High alarm & low alarm, hysteresis control.
4-20mA&RS485 multiple output modes.
Residual chlorine, temperature and current, etc.simultaneously showed in one screen.
Password protection function to prevent misoperation by non-staff.
Technical parameters:
(1)Measurement range:
Residual Chlorine:0~20.00mg/L;
pH:0-14.00pH
Temperature:0~50.0ºC;
(2)Resolution:
Residual Chlorine:0.001mg/L;
pH:0.01pH;
Temperature:0.1ºC;
(3)Basic error:
     Residual Chlorine:±1%F.S;
     pH:±0.05pH
Temperature:±0.3ºC;
(4)Response time: 90% less than 90s;
(5)Two Current output:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(6)Communication output:
RS485 MODBUS RTU;
(7)Three relay control contacts:
5A 250VAC,5A 30VDC;
(8)Power supply(optional):
    85~265VAC±10%,50±1Hz,power consumption ≤3W;
    9~36VDC,power consumption≤3W;
(9)Dimensions:144x144x118mm;
(10)Installation:
Panel, Wall Mounted&pipeline
Panel opening size:138x138mm
(11)Protection Level:IP65;
(12)Weight:0.8kg;
(13)Working environment:
  Operating temperature:-10~60ºC;
  Relative humidity: ≤90%;
No strong magnetic field around except
the geomagnetic field.



Model No.CS5763
Measurement methodMembrane
Housing materialPOM+316L Stainless
Waterproof gradeIP68
Measurement range0 - 20.00 mg/L
Accuracy±0.05mg/L;
Pressure resistance≤0.3Mpa
Temperature compensationNTC10K
Temperature range0-50ºC
CalibrationChlorine-free water, water sample calibration
Connection methods4 core cable
Cable lengthStandard 5m cable, can be extended to 100m
Installation threadNPT3/4''
Application Tap water, disinfectant fluid, etc.


After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.



FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.




Delivery and Packing:
Online Residual Chlorine Analyzer with pH Compensation pH FCL

Online Residual Chlorine Analyzer with pH Compensation pH FCL




Our company:


Online Residual Chlorine Analyzer with pH Compensation pH FCL


Online Residual Chlorine Analyzer with pH Compensation pH FCL
Online Residual Chlorine Analyzer with pH Compensation pH FCL
