• Model NO.：T4050
• Appliance：Food Analysis, Medical Research, Biochemistry
• Portable：Non Portable
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter
• Measure range：0~20.00mg,L
• Waterproof grade：IP65
• Accuracy：+,-1%F.S
• Resolution：0.001mg,L
• Transport Package：1 PCS,Carton
• Specification：98x98x130mm
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：2000PCS,Month
• Package size per unit product：35.00cm * 25.00cm * 12.00cm
• Gross weight per unit product：2.500kg
• Lead Time：10 days (1 - 50 Pieces) 30 days (51 - 200 Pieces) 60 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. T4050 Appliance Food Analysis, Medical Research, Biochemistry Portable Non Portable Certification RoHS, CE, ISO9001 Type Concentration Meter Measure range 0~20.00mg/L Waterproof grade IP65 Accuracy +/-1%F.S Resolution 0.001mg/L Transport Package 1 PCS/Carton Specification 98x98x130mm Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 2000PCS/Month

Packaging & Delivery

Package size per unit product 35.00cm * 25.00cm * 12.00cm Gross weight per unit product 2.500kg Lead Time 10 days (1 - 50 Pieces)
30 days (51 - 200 Pieces)
60 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

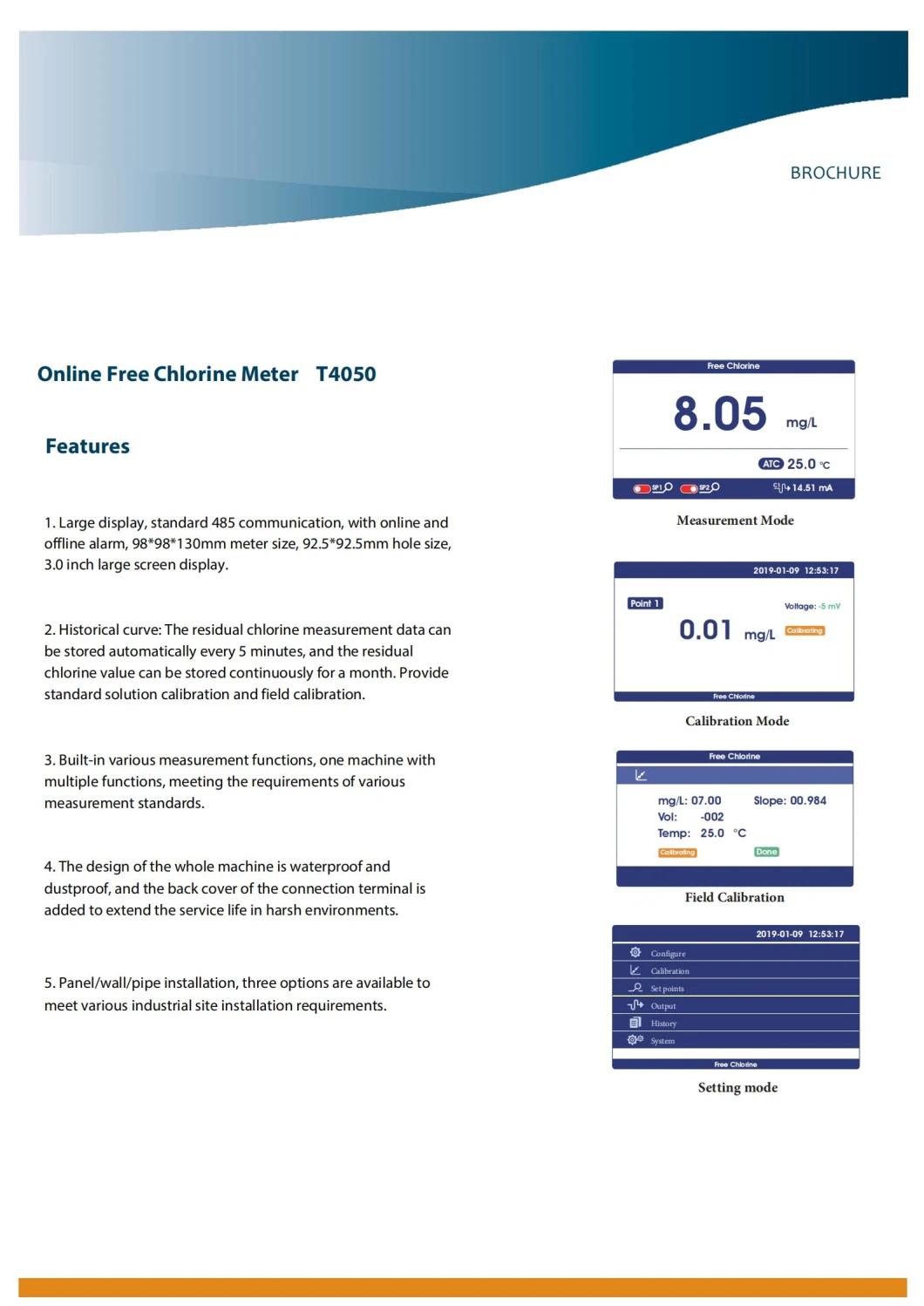

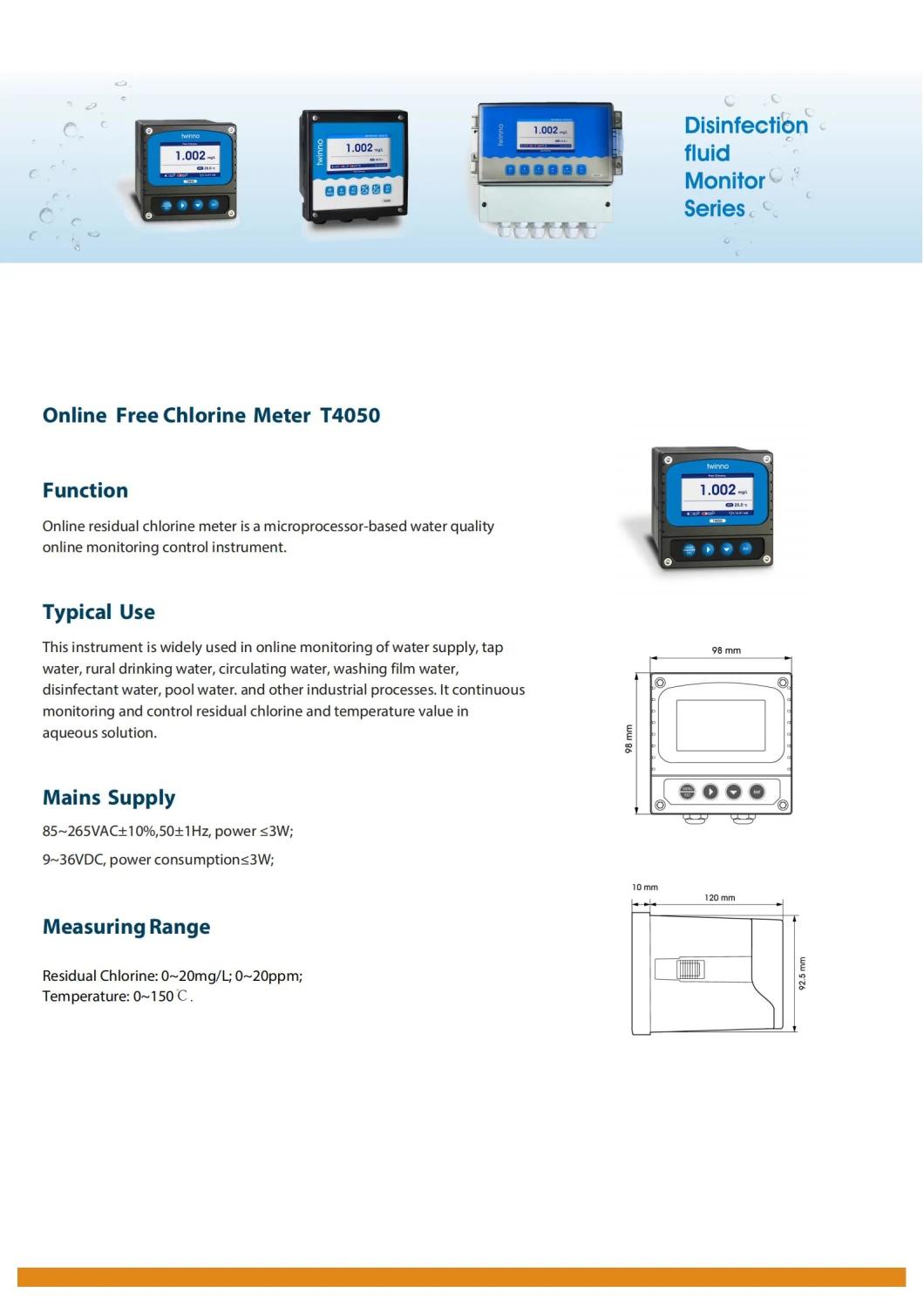

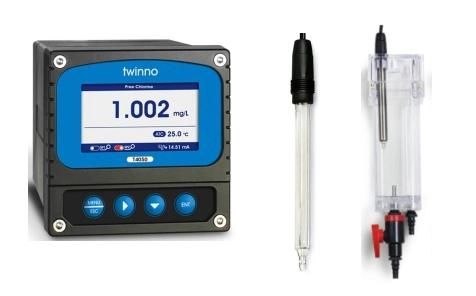

T4050 Online Residual Chlorine Meter

Industrial online residual chlorine meter is a water quality on-line monitoring and controlling instrument with microprocessor.It is widely used in drinking water treatment plants, drinking water distribution networks, swimming pools, water treatment projects, sewage treatment, water disinfection and other industrial processes.It continuous monitoring and control  residual chlorine and temperature value in aqueous solution.

Instrument features:
Color LCD display
Intelligent menu operation
Multiple signal output modes
Two sets of relay control switches
High alarm & low alarm, hysteresis control
Residual chlorine, temperature and current, etc.simultaneously showed in onescreen
With password protection to prevent misoperation by non-staff

Technical parameters:
(1)Measurement range:
Residual Chlorine:0~20.00mg/L;
Temperature:0~50.0ºC;
(2)Resolution:
Residual Chlorine:0.001mg/L;
Temperature:0.1ºC;
(3)Basic error:
     Residual Chlorine:±1%F.S;
Temperature:±0.3ºC;
(4)Response time:90%less than 90s;
(5)Two Current output:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(6)Communication output:
RS485 MODBUS RTU;
(7)Two sets of relay control contacts:
3A 250VAC,3A 30VDC;
(8)Power supply(optional):
    85~265VAC±10%,50±1Hz,power consumption ≤3W;
    9~36VDC,power consumption≤3W;
(9)Dimensions:98x98x130mm;

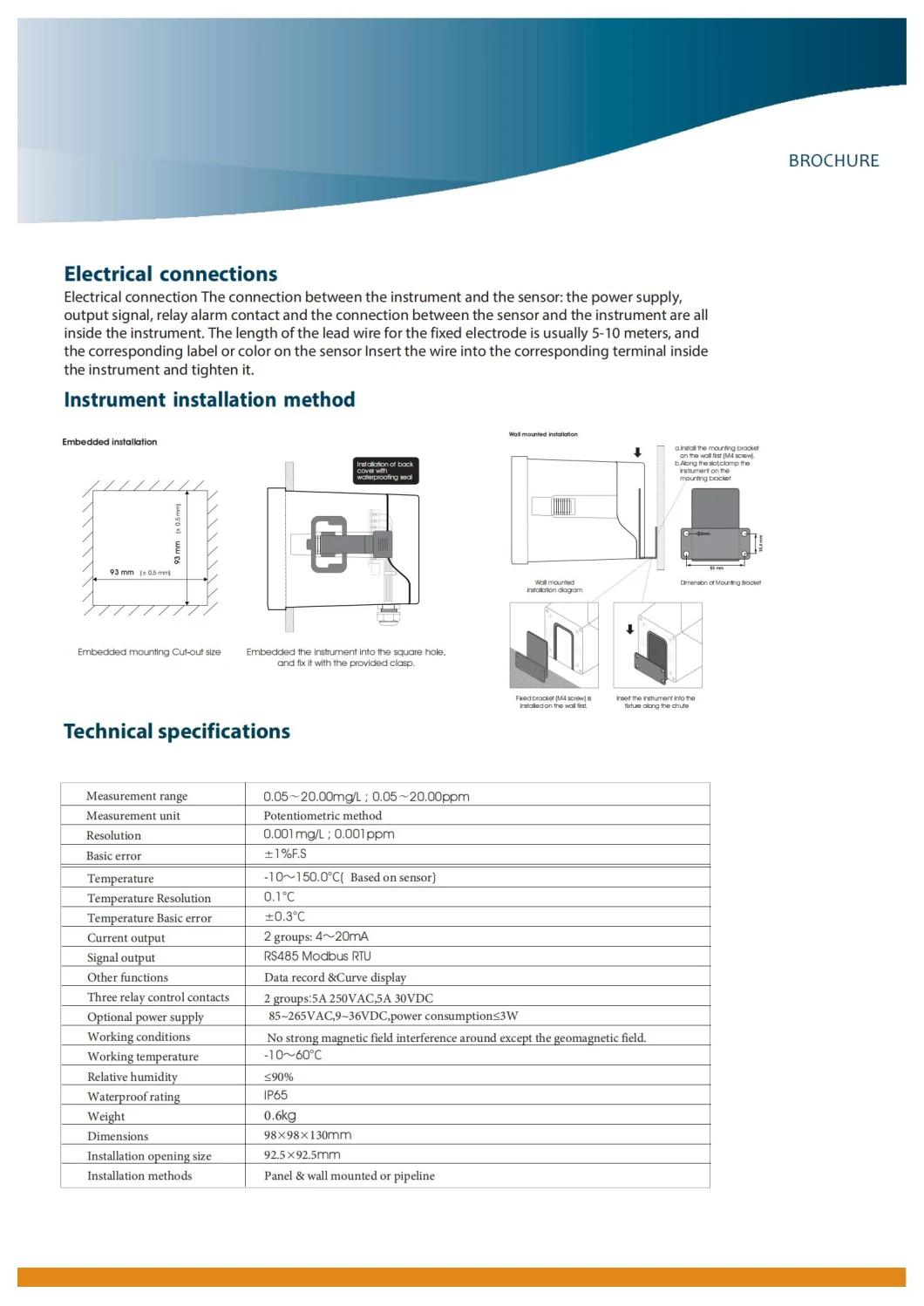

(10)Installation: Panel & Wall Mounting;
Panel opening size:93x93mm;
(11)Protection Level:IP65;
(12)Weight:0.6kg;
(13)Working environment:
   Operating temperature:-10~60ºC;
   Relative humidity: ≤90%;
   No strong magnetic field around except the geomagnetic field.

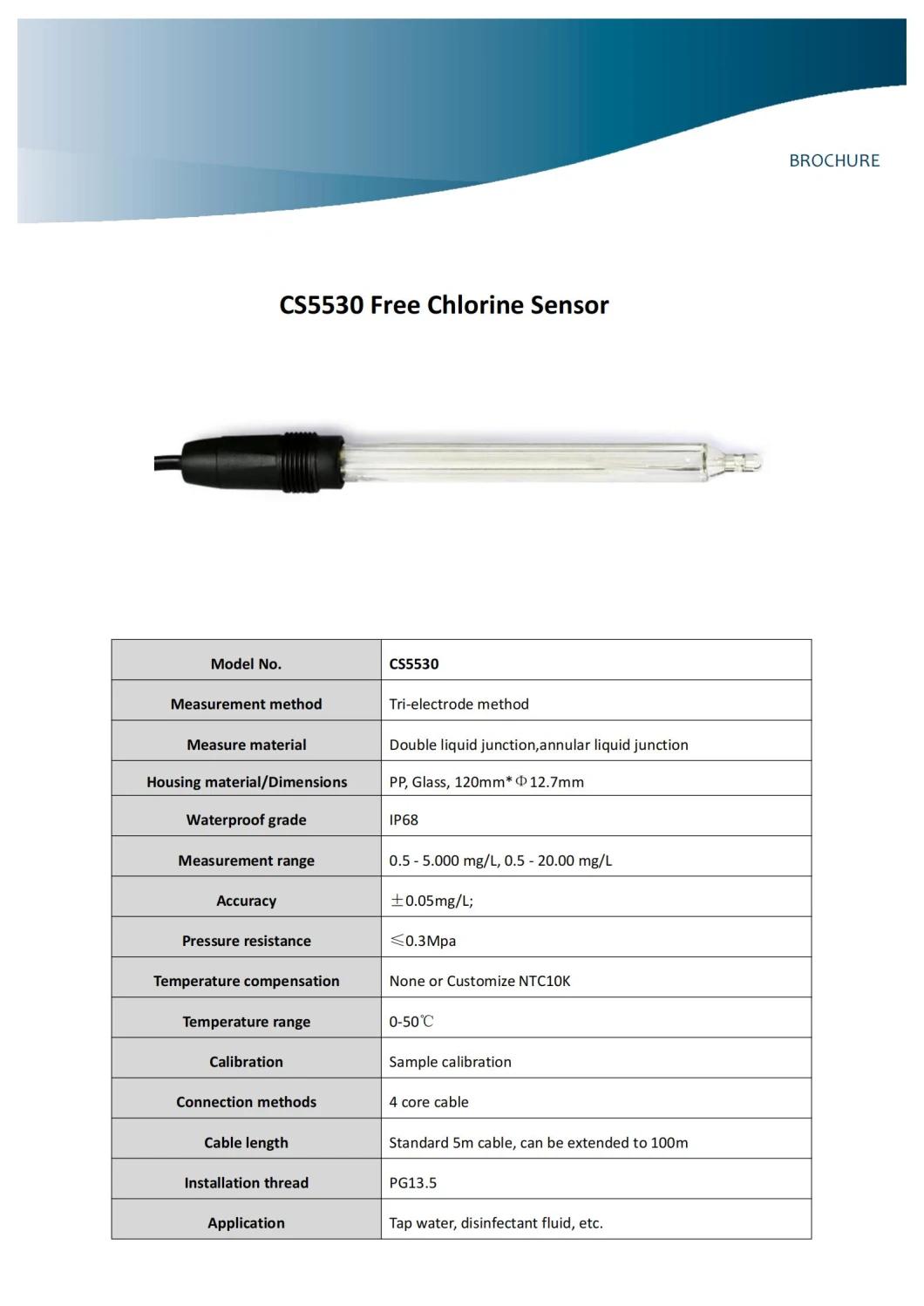

Model No.	CS5530
Measurement method	Tri-electrode method
Measure material	Double liquid junction,annular liquid junction
Housing material/Dimensions	PP, Glass, 120mm*Φ12.7mm
Waterproof grade	IP68
Measurement range	0 - 5.000 mg/L, 0 - 20.00 mg/L
Accuracy	±0.05mg/L;
Pressure resistance	≤0.3Mpa
Temperature compensation	None or Customize NTC10K
Temperature range	0-50ºC
Calibration	Sample calibration
Connection methods	4 core cable
Cable length	Standard 5m cable, can be extended to 100m
Installation thread	PG13.5
Application	Tap water, disinfectant fluid, etc.

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.


Delivery and packing:

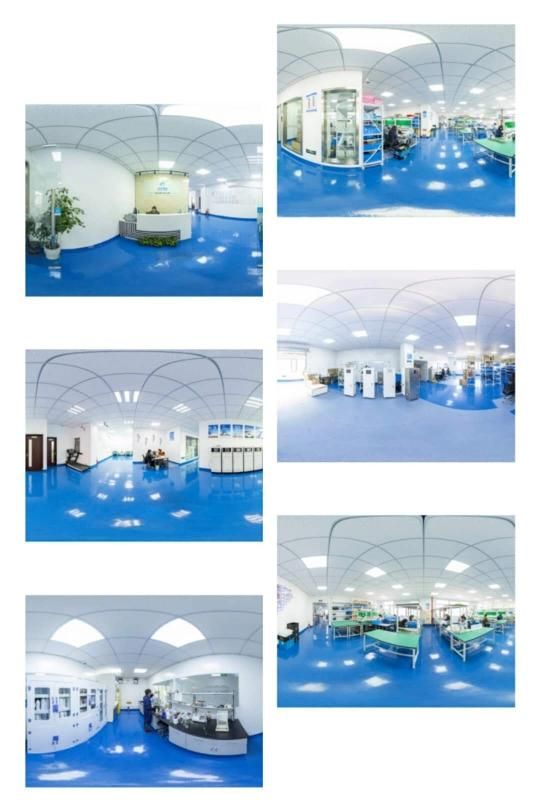

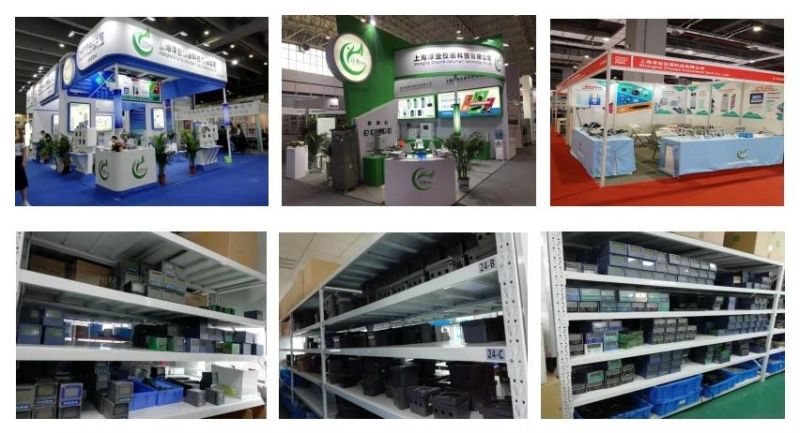

Our company:
