• Model NO.：T4010
• Certification：RoHS, CE, ISO9001, ISO9001, RoHS, CE, ISO9001, RoHS, CE
• Type：Concentration Meter
• Measuring range：0~99999mg,L
• Resolution：0.01mg,L
• Signal output：RS485 MODBUS RTU
• Dimensions：98X98X130mm
• Mounting hole size：93X93mm
• Transport Package：Carton Box
• Specification：Measuring range: 0-14pH
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：2000sets,Month
• Package size per unit product：26.00cm * 18.00cm * 16.00cm
• Gross weight per unit product：2.000kg
• Lead Time：7 days (1 - 50 Sets) 15 days (51 - 200 Sets) 30 days (201 - 500 Sets) To be negotiated ( > 500 Sets)

Basic Info.

Model NO. T4010 Certification RoHS, CE, ISO9001, ISO9001, RoHS, CE, ISO9001, RoHS, CE Type Concentration Meter Measuring range 0~99999mg/L Resolution 0.01mg/L Signal output RS485 MODBUS RTU Dimensions 98X98X130mm Mounting hole size 93X93mm Transport Package Carton Box Specification Measuring range: 0-14pH Trademark twinno Origin Shanghai, China HS Code 9027 Production Capacity 2000sets/Month

Packaging & Delivery

Package size per unit product 26.00cm * 18.00cm * 16.00cm Gross weight per unit product 2.000kg Lead Time 7 days (1 - 50 Sets)
15 days (51 - 200 Sets)
30 days (201 - 500 Sets)
To be negotiated ( > 500 Sets)

Product Description

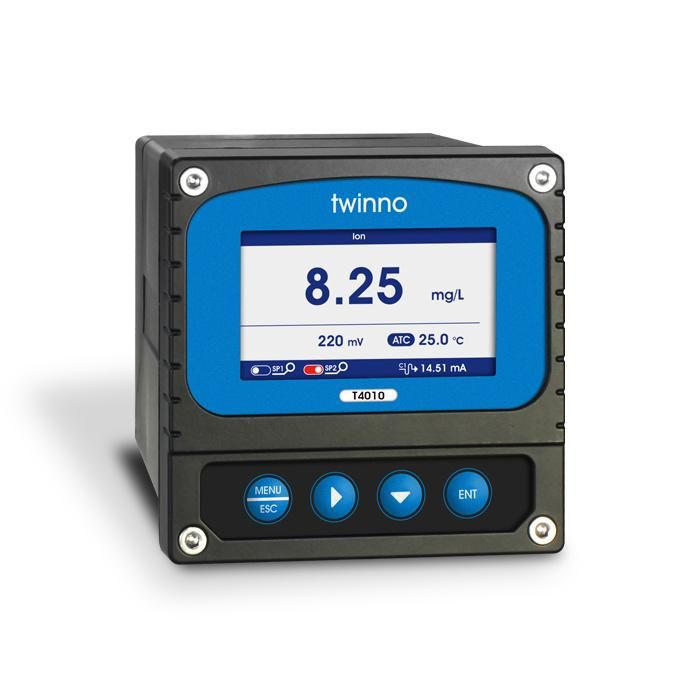

T4010 Online Ion Controller
Industrial Ion Digital Controller is a water quality online monitor with microprocessor. The controller equipped with different type of ions electrode, which widely used in power plant, petrochemical industry, metallurgical electronics, mining industry, paper industry, biological fermentation engineering, medical industry, food and beverage, environmental protection and water treatment, etc. The controller continuously monitors and control the concentration ionic in aqueous solution.
Fluoride, Chloride, Ammonium Nitrogen, Nitrate Nitrogen, Hardness and Other Ion selective sensors



Instrument Features:

• Colour LCD Display
• Intelligent menu operation
• Various automatic calibration functions
• Signal measurement, stable and reliable
• Manual & auto temp. compensation
• 2 relay control switches
• High alarm, low alarm, hysteresis control

• 4-20mA & RS485 Multiple output modes

• Ion concentration, temperature, electric current, etc. showed in one screen
• Password protection function to prevent non-staff operates incorrect

Technical Parameters:
(1)Measurement range:0~99999mg/L;
Concentration Ion: 0 - 99999mg/L
Temperature: 0 - 100ºC
(2)Resolution:
Concentration Ionic: 0.01mg/L
Temperature: 0.1ºC
(3)Basic error:
Ion Concentration: measurement ±2.5%
Temperature: ±0.3ºC
(4)2-way current output:
0/4~20mA(Load resistance <750Ω);
20~4mA( Load resistance<750Ω);
(5)Communication output:RS485 MODBUS RTU;
(6)Two  relay control contacts
3A 250VAC,3A 30VDC;
(7)Power supply(selection)
85~265VAC±10%,50±1Hz,Power consumption≤3W;
9~36VDC,Power consumption:≤3W;
(8)Dimensions:98x98x130mm;
(9)Installation:Wall mounting and pipeline
Panel hole opening size: 93x93mm
(10) Waterproof resistance:IP65;
(11)Weight:0.6kg;
(12)Working environment
      Operation Temperature:-10~60ºC;
      Relative humidity: ≤90%
      No strong magnetic field around except the geomagnetic field.



Model No.	CS6714(NH4+)
Measurement range	0.1-1000mg/L or customize
Reference system	PVC membrane ion selective electrode
Membrane resistance	<600MΩ
Housing material	PP
Waterproof grade	IP68
pH range	2-12pH
Accuracy	±0.1 mg/L
Pressure resistance	0~0.3MPa
Temperature compensation	NTC10K,PT100,PT1000 (Optional)
Temperature range	0-80ºC
Calibration	Sample calibration, standard liquid calibration
Cable length	Standard 5m cable, can be extended to 100m
Installation thread	NPT3/4"
Application	Water quality and soil analysis, clinical laboratory, ocean survey, industrial process control, geology, metallurgy, agriculture, food and drug analysis and other fields.

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.




FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.
