Desktop High Frequency Infrared Carbon Sulfur Analyzer

Wuxi JinyiBo Instrument Technology Co., Ltd.
  • Measuring Range：C: 0.0001%-10.0000% S: 0.0001%-3.5000% (Can Extend
  • Electronic Balance：Weight The Sample in Variable Amount Accuracy of
  • High Frequency Furnace：Power ≥2.7kVA Oscillation Frequency:20MHz
  • Analysis Time：25-60 Seconds Can Be Set ( Usually 35 Seconds)
  • Power Supply：Voltage:AC220V±5%, Frequency:50Hz±2%
  • Oxygen：Purity: ≥99.5%, Input Pressure : 0.18MPa + 5%

Base Info

  • Model NO.：CS-8820
  • Transport Package：Wooden Package
  • Specification：CS-8820
  • Trademark：wuxi jinyibo
  • Origin：Jiangsu Wuxi
  • HS Code：9027809900
  • Production Capacity：30 Sets,Month

Description

Measuring range

C: 0.0001%-10.0000% ( can extend to 99.9999%)

S: 0.0001%-3.5000% (can extend to 99.9999%)

Analysis of error

With GB / T20123-2006/ ISO15350: 2000 standard

Analysis time

25-60 seconds can be set ( usually 35 seconds)

High frequency furnace

power ≥2.7KVA Oscillation frequency:20MHz

Electronic balance

weight the sample in variable amount  Accuracy of reading:0.0001g

Working environment

indoor temperature:10-30ºC,relative humidity:<90%

Power supply

voltage:AC220V±5%,frequency:50Hz±2%

Oxygen

Purity: ≥99.5%,  input pressure : 0.18MPa + 5%

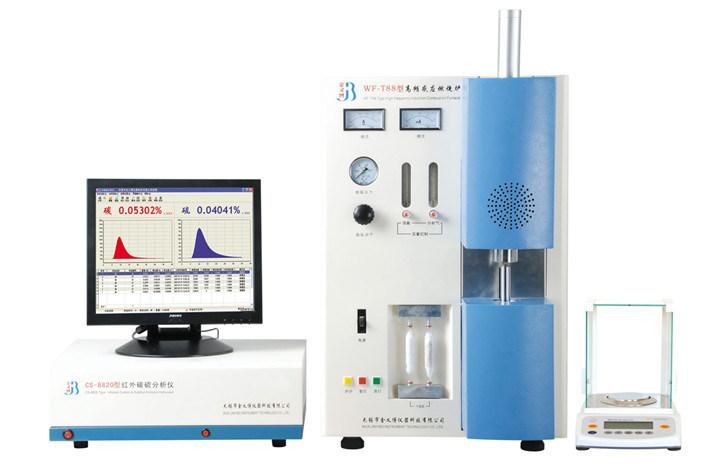

Desktop High Frequency Infrared Carbon Sulfur Analyzer
Packing & Shipping
