• Model NO.：T4040
• Certification：ISO9001, RoHS, CE
• Type：Dissolved Oxygen Meter
• Measurment range：0~20.0mg,L, 0~100%;
• Resolution：0.01mg,L;0.1%
• Basic error：+,- 1% F.S
• Communication output：RS485 MODBUS RTU;
• Transport Package：Carton Box
• Specification：98x98x130mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：2000PC,Month
• Package size per unit product：35.00cm * 28.00cm * 12.00cm
• Gross weight per unit product：2.500kg
• Lead Time：15 days (1 - 500 Pieces) 30 days (501 - 1500 Pieces) 60 days (1501 - 3000 Pieces) To be negotiated ( > 3000 Pieces)

Basic Info.

Model NO. T4040 Certification ISO9001, RoHS, CE Type Dissolved Oxygen Meter Measurment range 0~20.0mg/L, 0~100%; Resolution 0.01mg/L;0.1% Basic error +/- 1% F.S Communication output RS485 MODBUS RTU; Transport Package Carton Box Specification 98x98x130mm Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 2000PC/Month

Packaging & Delivery

Package size per unit product 35.00cm * 28.00cm * 12.00cm Gross weight per unit product 2.500kg Lead Time 15 days (1 - 500 Pieces)
30 days (501 - 1500 Pieces)
60 days (1501 - 3000 Pieces)
To be negotiated ( > 3000 Pieces)

Product Description

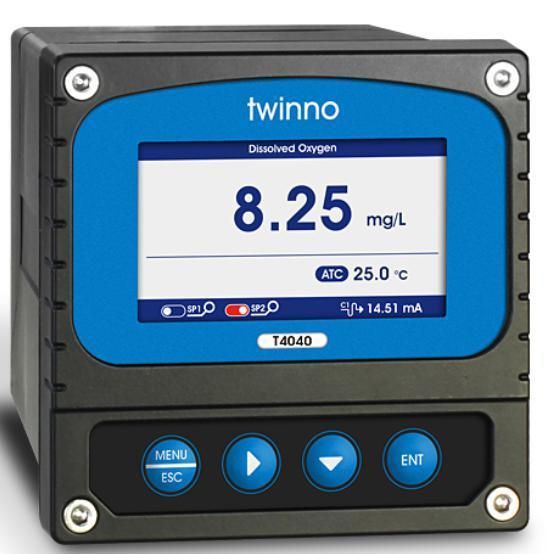

T4040 Online Dissolved Oxygen Controller

Industrial on-line microprocessor-based dissolved oxygen meter is a water quality on-line monitoring and control instrument. The instrument is equipped with polarographic dissolved oxygen electrode, which is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, biological fermentation, medicine, food and beverage,water treatment, aquaculture and other industries.It continuously monitor and control the dissolved oxygen value and temperature value of water solutions.

Instrument features:
Color LCD display
Intelligent menu operation
Various automatic calibration functions
Multiple signal output modes
Two sets of relay control switches
Manual or automatic temperature compensation
High &low alarm, hysteresis control
Dissolved oxygen, temperature, state, etc.simultaneously showed on one screen
Password protect function to prevent mis-operation by non-staff


Technical parameters:
(1)Measurement range:
    Dissolved Oxygen:0~20.0mg/L:0~100%;
   Temperature:-5~150.0ºC(2)Resolution:     Temperature:0.1ºC;
    Dissolved Oxygen:0.01mg/L;0.1%;
(3)Basic error:
     Dissolved Oxygen:±1%F.S;
    Temperature:±0.3ºC;
(4)Electrode residual signal:<1‰;
(5)Response time (final value 90%):
    At 25ºC<60S;35ºC<30S;
(6)Stability:
    At constant pressure & temperature, the weekly drift< 2%F.S;
(7)Two Current output:
    0/4~20mA(load resistance<750Ω);
    20~4mA(load resistance<750Ω);
(8)Communication output: RS485 MODBUS RTU;
(9)Two sets of relay control points:
    3A 250VAC,3A 30VDC;
(10)Power supply(selection):
      8-265VAC±10%,50±1Hz,power consumption≤3W;
      9~36VDC,power consumption≤3W;
(11)Dimensions:98×98×130mm;
(12)Installation: Panel or wall mounting;
Panel opening size:93×93mm;
(13)Protection Grade:IP65;
(14)Weight:0.6kg;
(15)Working environment:
      Operating temperature:-10~60ºC;
      Relative humidity: ≤90%;
      No strong magnetic field interference around except the geomagnetic field.



Model No.	CS4763
Measuring Mode	Polarography
Housing Material	POM+Stainless steel
Waterproof Rating	IP68
Measuring Range	0-20mg/L
Accuracy	±1%F.S
Pressure Range	≤0.3Mpa
Temperature Compensation	NTC10K
Temperature Range	0-50ºC
Calibration	Anaerobic Water Calibration and Air Calibration
Connection Methods	4 core cable
Cable Length	Standard 10m cable, can be extended
Installation Thread	NPT3/4''
Application	General application, river, lake,drink water, environment protection ,etc

Model No.	CS4773
Measuring Mode	Polarography
Housing Material	POM+Stainless steel
Waterproof Rating	IP68
Measuring Range	0-20mg/L
Accuracy	±1%F.S
Pressure Range	≤0.3Mpa
Temperature Compensation	NTC10K
Temperature Range	0-50ºC
Calibration	Anaerobic Water Calibration and Air Calibration
Connection Methods	4 core cable
Cable Length	Standard 10m cable, can be extended
Installation Thread	Upper NPT3/4'',1''
Application	General application, river, lake,drink water, environment protection ,etc

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.



Delicery and Packing:







Our company:
