• Model NO.：T6030
• Certification：ISO9001, RoHS, CE, ISO9001, RoHS, CE
• Type：Conductivity Meter
• Conductivity：0~500mS,cm
• Resistivity：0~18.25MΩ,cm
• TDS：0~250g,L
• Salinity：0~700PPT;0~70%;0~700g,L
• Temperature：-5~150.0 Degree C
• Transport Package：Carton Box
• Specification：98x98x130mm
• Trademark：twinno
• Origin：Shanghai, China
• HS Code：9027809900
• Production Capacity：2000PC,Month
• Package size per unit product：25.00cm * 26.00cm * 30.00cm
• Gross weight per unit product：3.000kg
• Lead Time：7 days (1 - 50 Sets) 15 days (51 - 200 Sets) 30 days (201 - 500 Sets) To be negotiated ( > 500 Sets)

Basic Info.

Model NO. T6030 Certification ISO9001, RoHS, CE, ISO9001, RoHS, CE Type Conductivity Meter Conductivity 0~500mS/cm Resistivity 0~18.25MΩ/cm TDS 0~250g/L Salinity 0~700PPT;0~70%;0~700g/L Temperature -5~150.0 Degree C Transport Package Carton Box Specification 98x98x130mm Trademark twinno Origin Shanghai, China HS Code 9027809900 Production Capacity 2000PC/Month

Packaging & Delivery

Package size per unit product 25.00cm * 26.00cm * 30.00cm Gross weight per unit product 3.000kg Lead Time 7 days (1 - 50 Sets)
15 days (51 - 200 Sets)
30 days (201 - 500 Sets)
To be negotiated ( > 500 Sets)

Product Description

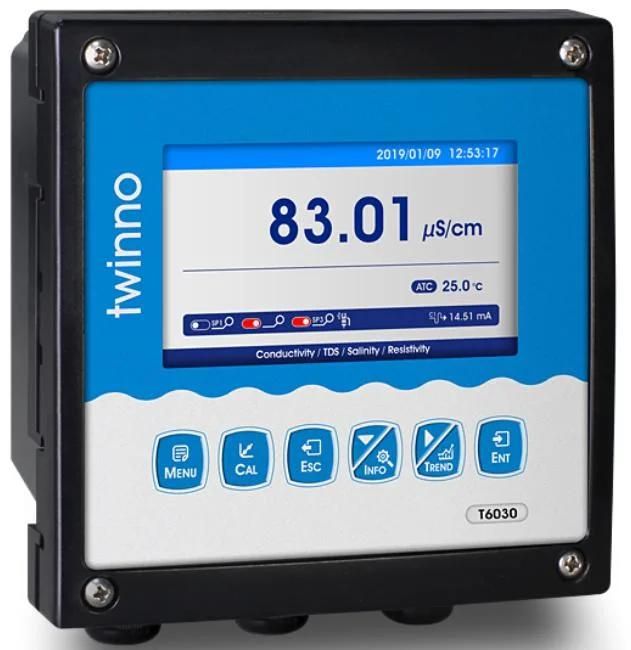

T6030 Online Conductivity / Resistivity / TDS / Salinity Meter

Industrial online conductivity meter is a microprocessor-based water quality online monitoring control instrument. This instrument is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, medicine, food and beverage, water treatment, modern agricultural planting and other industries.It is suitable for softening water, raw water, steam condensate water, seawater distillation and deionized water, etc. It can continuously monitor and control the conductivity, resistivity, TDS, salinity and temperature of aqueous solutions.

Instrument features:

Color LCD Display.
Intelligent menu operation.
Data Recording & Curve Display.
Manual or automatic temperature compensation.
Three sets of relay control switches.
High & low alarm, and hysteresis control.
4-20mA&RS485Multiple output modes.
Password protection founction to prevent misoperation by non-staff.

Technical parameters:
(1)Measuring range:
Conductivity:0~500mS/cm;
Resistivity:0~18.25MΩ/cm;
TDS:0~250g/L;
Salinity:0~700PPT; 0~70%; 0~700g/L;
Temperature:0~150.0ºC;
(2)Resolution:
  Conductivity:0.01μS/cm;0.01mS/cm;
  Resistivity:0.01KΩ/cm;0.01MΩ/cm;
  TDS:0.01mg/L;0.01g/L;
  Salinity:0.01PPT;0.1%;0.01mg/L;
  Temperature:0.1ºC;
(3)Basic error:±0.5%F.S;
Temperature:±0.3ºC;
(4)Stability:±0.2%F.S/24h;
(5)Two current output:
0/4~20mA(load resistance<750Ω);
20~4mA(load resistance<750Ω);
(6)Signal output:RS485 MODBUS RTU;
(7) Three sets of relay control contacts:
5A 250VAC,5A 30VDC;
(8)Power supply:
85~265VAC±10%,50±1Hz,power ≤3W;
9~36VDC,power consumption≤3W;
(9)Dimensions:144x144x118mm;
(10)Installation:
Panel,wall mounting and pipeline ;
Panel opening size:138x138mm;
(11)Protection level:IP65;
(12)Weight:0.8kg;
(13)Working environment:
    Operating temperature:-10~60ºC;
    Relative humidity: ≤90%;
    No strong magnetic field interference except the geomagnetic field.



Model No.	CS3740
Cell constant	K=1.0
Electrode type	4-pole Conductivity sensor
Measure material	Graphite
Waterproof rating	IP68
Measurement range	0.1-500,000us/cm
Accuracy	±1%F.S
Pressure resistance	≤0.8Mpa
Temperature compensation	PT1000 ATC
Temperature range	-10-80ºC
Measuring/Storage Temperature	0-45ºC
Calibration	Sample calibration, standard liquid calibration
Connection methods	4 core cable
Cable length	Standard 5m cable, can be extended to 100m
Installation thread	NPT3/4"
Application	General purpose

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


FAQ

What is the mini order quantity?
MOQ: generally 1 unit/piece/set

What payment methods are supported?
Payment method: By T/T, L/C, etc.
Payment terms: Generally, We accept 100% T/T in advance, balance before shipment.

What are the available delivery methods?
Our port location: Shanghai
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation

How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 15 ~ 30 days; test equipment or analyzer delivery date is around 3~7 days. Some products have stock, contact us anytime to get more information.

How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 1 years after start up of the system.

How is the technical services on the product?
You are welcome to contact us any time if you have any technical question. We will response promptly and answer to your satisfaction. If required and necessary, Engineer available to service and provide technical support for machinery overseas.



Delivery and Packing:

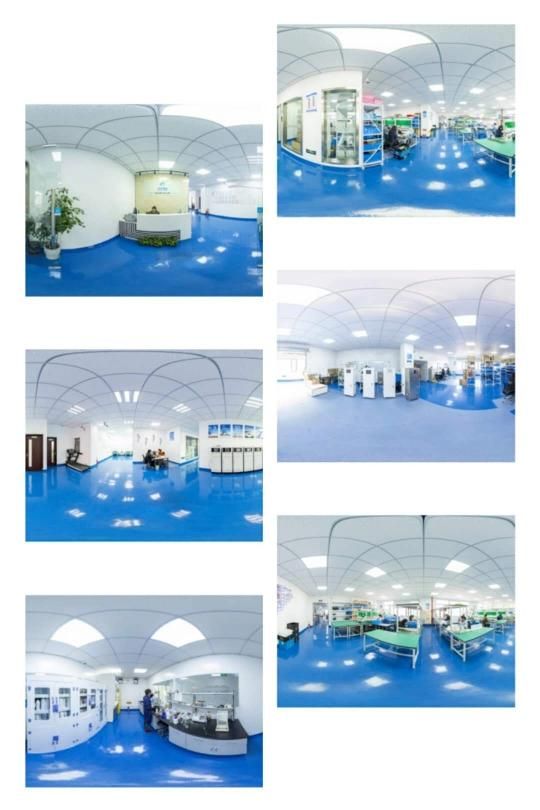

Our company:
