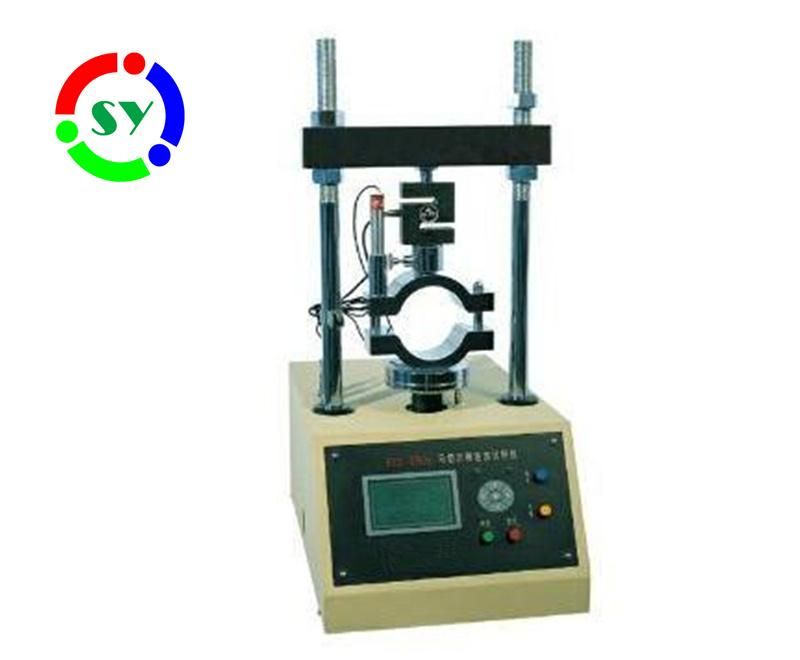

Sy-0709 Mashall Stability Tester/ Stability Testing Equipment

Beijing Samyon Instruments Co., Ltd.
  • Test Load：(0~50.00)Kn
  • Measuring Error：+,-0.05%(F.S)
  • Test Displacement：(0~10)Mm
  • Loading Speed：(50+,-5)Mm,Min;
  • Loading Mode：Automation and Manual
  • Transport Package：Carton Case

Base Info

  • Model NO.：SY-0709
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

1.Test load(0~50.00)KN,measuring error:+0.05%(F.S)2.Test displacement(0~10)mm,measuring error:+0.5%(F.S)3.Loading speed(50+5)mm/min;4.Loading modeautomation and manual 5.Usage condition(1)ambient temperature:-10ºC ~35ºC;
(2)relative humidity:≤85%;6.Volume of the instrument510mm*560mm*1400mm7.Total weight86kg( net weight )8.Power supplyAC380V,50Hz,700W
1.Test load:(0~50.00)KN,measuring error:+0.05%(F.S)
2.Test displacement:(0~10)mm,measuring error:+0.5%(F.S)
3.Loading speed:(50+5)mm/min;
4.Loading mode:automation and manual
5.Usage condition:
(1)ambient temperature:-10ºC ~35ºC;
(2)relative humidity:≤85%;
6.Volume of the instrument:510mm*560mm*1400mm
7.Total weight:86kg( net weight )
8.Power supply:AC380V,50Hz,700W

III.Choice of accessories
1.Constant temperature water bath:HWY-1 Low temperature constant temperature water bath.

IV.Special orders
1.As the special orders,our company can research and develop the software in order to realize communication on the remote internet for the users.
2.The users can also choose Φ150mm sample gripper and our company may make appropriate adjustments in the advice.
