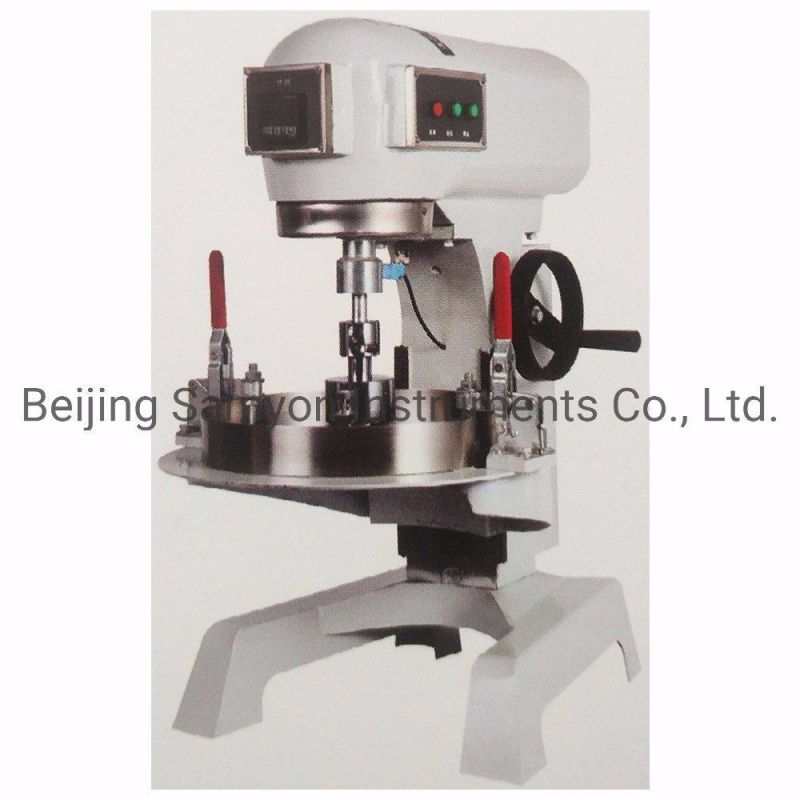

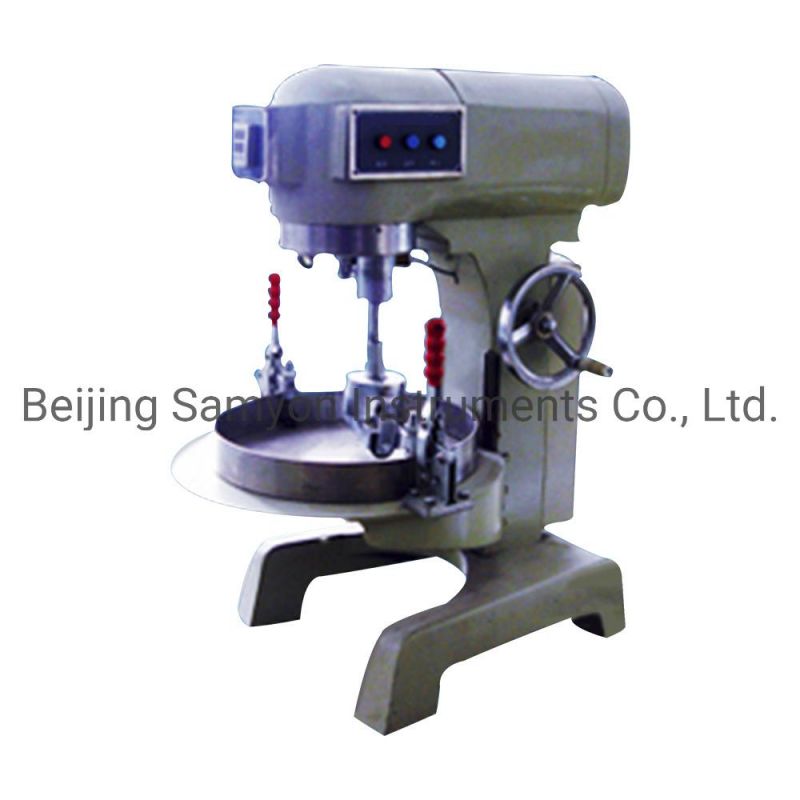

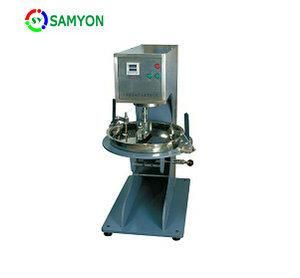

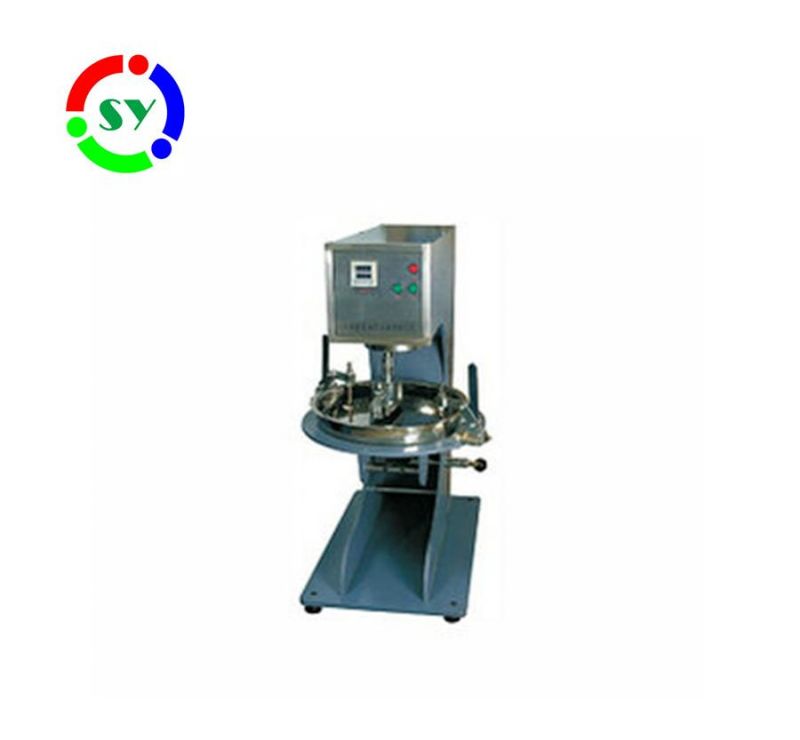

Sy-0752 Wet Wheel Abrasion Tester

Beijing Samyon Instruments Co., Ltd.
  • The Rotating Speed of Electric Motor：1400rpm
  • Autorotation Rate of The Wheel Head：140rpm
  • Revolution Rate of The Wheel Head：61rpm
  • The Weight of The Wheel Head：2.27kg
  • Length of The Rubber Hose for Wheel Head：127mm
  • Transport Package：Carton Case

Base Info

  • Model NO.：SY-0752
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：9031809090
  • Production Capacity：100sets Per Month

Description

The rotating speed of electric motor1400rpmAutorotation rate of the wheel head140rpm Revolution rate of the wheel head61rpmThe weight of the wheel head2.27kg(working quality)The length of the rubber hose for wheel head127mmTiming5 min timing Dimension620mm*500mm*780mmWeight260kgPower supplyAC 380V,50Hz,380W (three-phase four-wire system ,with zero line)
1.The rotating speed of electric motor :1400rpm
2.Autorotation rate of the wheel head :140rpm
3.Revolution rate of the wheel head :61rpm
4.The weight of the wheel head :2.27kg(working quality)
5.The length of the rubber hose for wheel head :127mm
6.Timing :5 min timing
7.Dimension :620mm*500mm*780mm
8.Weight :260kg
9.Power supply :AC 380V,50Hz,380W (three-phase four-wire system ,with zero line)

III.Choice of the accessories
1.Balance :weigh 6000g ,reciprocal sensibility ≤1g
2.Bake oven :with forced draft ,the temperature can be controlled in (60+3)ºC
3.Constant temperature water bath :HWY-1 low temperature constant temperature water bath
