• Model NO.：SY-0722
• Trademark：SAMYON
• Origin：Cn
• HS Code：9031809090
• Production Capacity：100sets Per Month

Rated rotation speed3000r/minPower supplyAC(220±10%)V,50HzVolume3000gTimer40, 60, 80, 99(s)Maximum power consumption550WAmbient temperature-10ºC~35ºCRelative humidity≤85%Net weight45KgDimensionMain unit:365mm×400mm
Control box:200mm×120mm×100mm
1. Rated rotation speed: 3000r/min
2. Power supply:    AC(220±10%)V,50Hz
3. Volume:     3000g
4. Timer:       40, 60, 80, 99(s)
5. Maximum power consumption:   550W
6. Ambient temperature:    -10ºC~35ºC
7. Relative humidity:         ≤85%
8. Net weight:    45Kg
9. Dimension:     Main unit:365mm×400mm
                    Control box:200mm×120mm×100mm










Summary

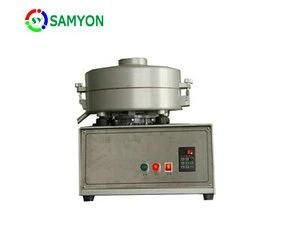

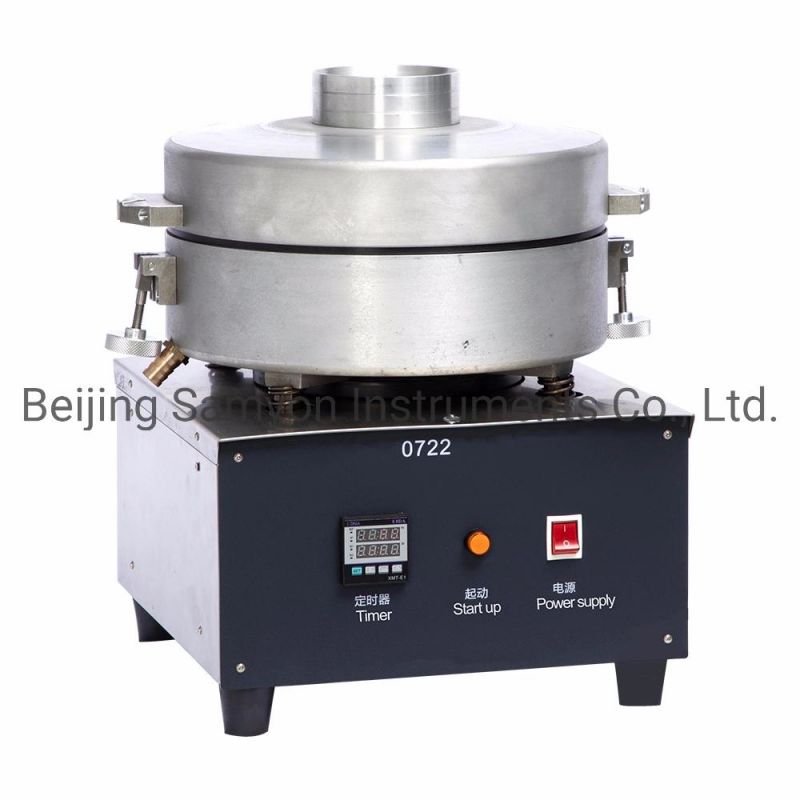

The instrument is designed and made as per T0722-1993 Standard Test Method for Bitumen Content of Bituminous Mixture by the Centrifuge Separation Method in Industrial Standard of People's Republic of China JTG E20-2011 Specification and Test Methods for Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine bitumen content (bitumen-mineral aggregate ratio) in the bituminous mixture, which is made of viscous petroleum bitumen, by the centrifuge separation method.

I. Main technical features

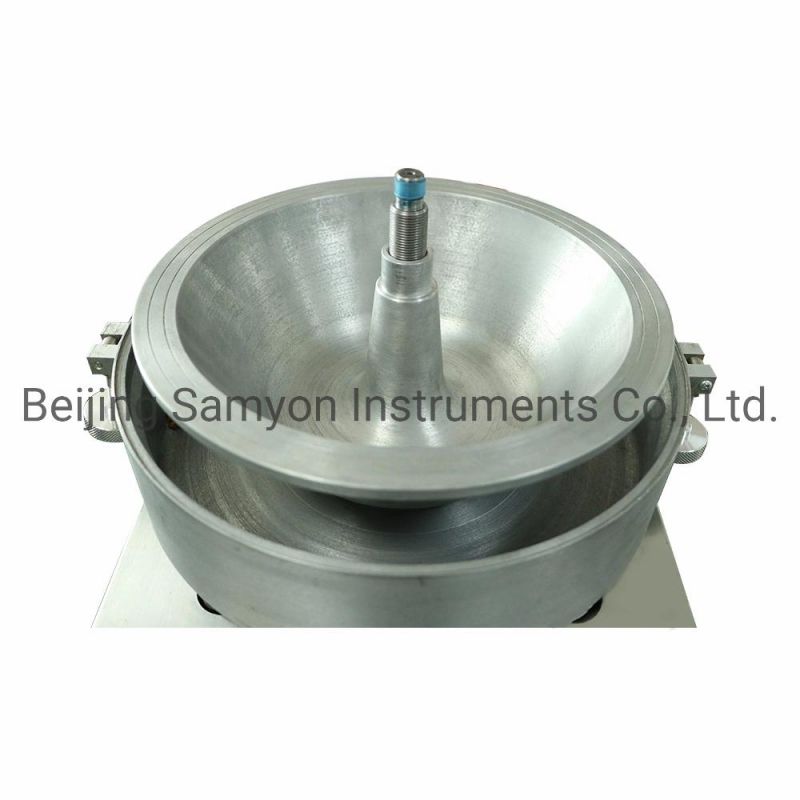

1. Thicken aluminum alloy vessel. Stainless steel centrifugal shaft and instrument shell. Never rust .
2. Precise mechanical manufacturing technology. The rotation is stable and speed is fast.
3. Digital display timer.Multilevel start. Stable test operation.

II. Main technical specifications
1. Rated rotation speed: 3000r/min
2. Power supply:    AC(220±10%)V,50Hz
3. Volume:     3000g
4. Timer:       40, 60, 80, 99(s)
5. Maximum power consumption:   550W
6. Ambient temperature:    -10ºC~35ºC
7. Relative humidity:         ≤85%
8. Net weight:    45Kg
9. Dimension:     Main unit:365mm×400mm
                    Control box:200mm×120mm×100mm
