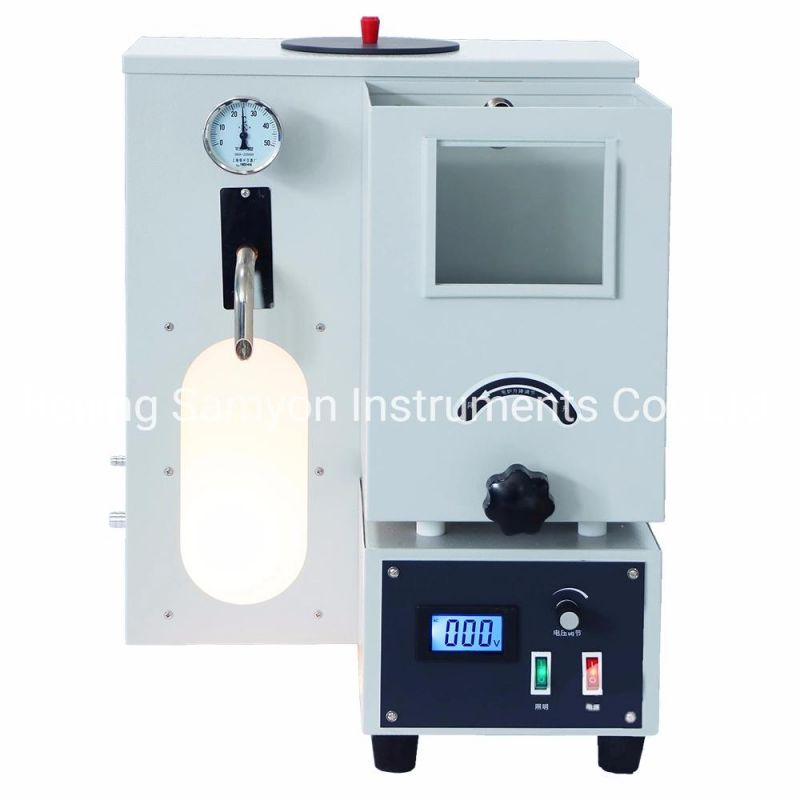

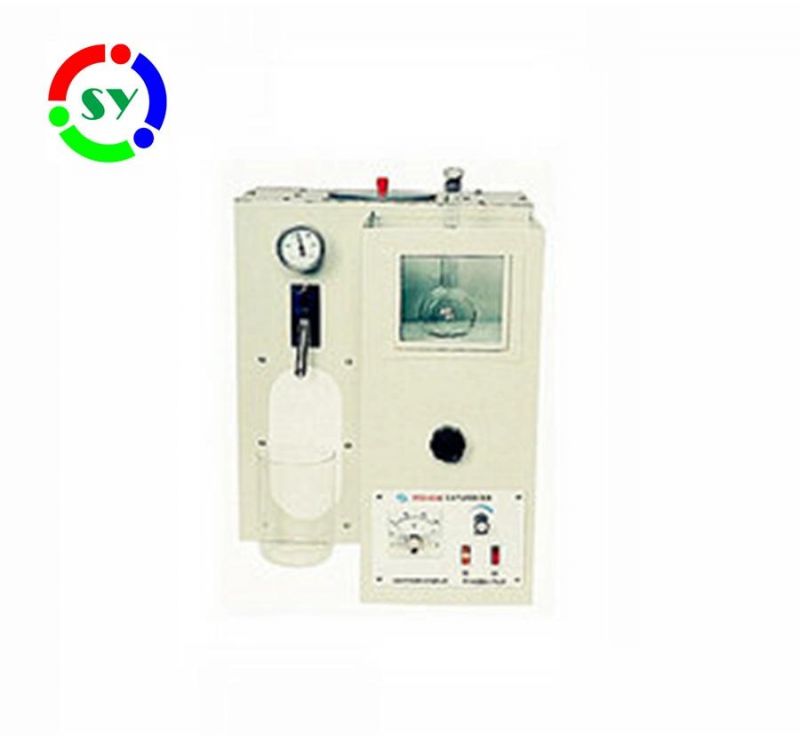

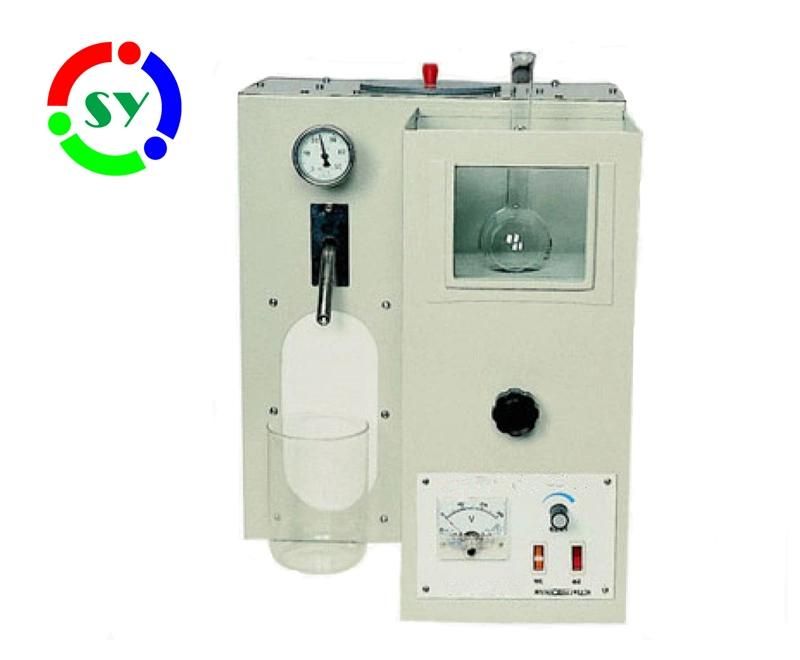

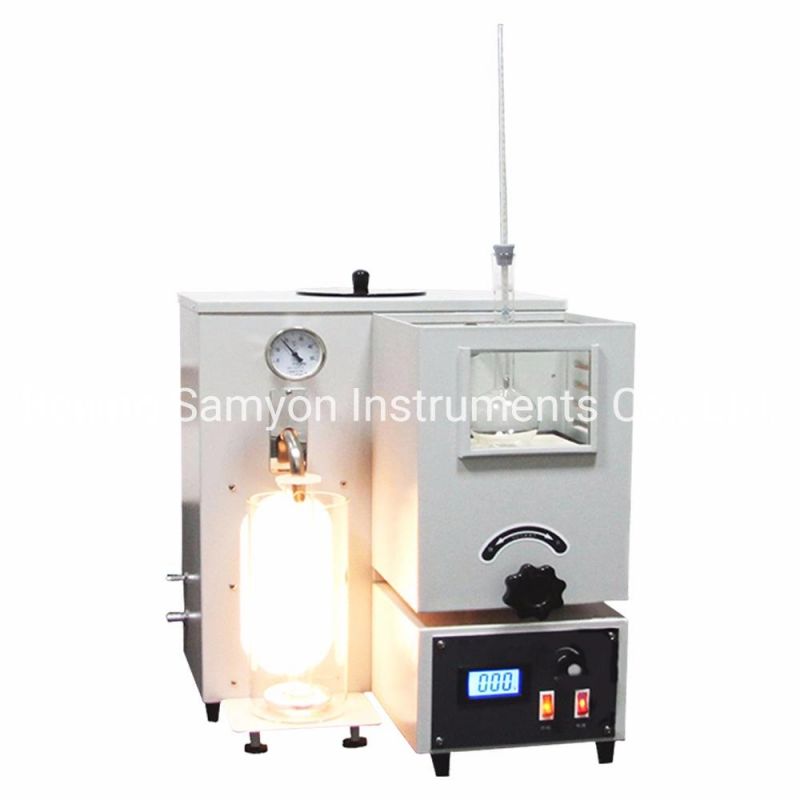

Sy-6536 Distillation Apparatus ASTM D86

Beijing Samyon Instruments Co., Ltd.
  • Heating Power：1000W, Stepless Adjustment
  • Receiving Cylinder：100ml, Scale Division 1ml
  • Distillation Flask：125ml.
  • Maximum Power Consumption：1100W
  • Transport Package：Carton Case
  • Specification：SGS

Base Info

  • Model NO.：SY-6536
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

1. Power supply  AC(220±10%)V, 50Hz2. Heating power  1000W,stepless adjustment3. Receiving cylinder  100ml,scale division 1ml4. Distillation flask  125mL. It can meet requirements GB/T 6536 and ASTM D865. Thermometer  (-2~300)ºC and (-2~400)ºC. Division value 1ºC6. Flask support board  SiC,diameter for each hole is φ32mm,φ38mm and φ50mm7. Ambient temperature  Room temperature~+35ºC8. Relative humidity  ≤85%9. Maximum power consumption  1100W10.Dimension 460mm×400mm×500mm
1. Power supply:   AC(220±10%)V, 50Hz
2. Heating power:   1000W,stepless adjustment
3. Receiving cylinder:  100ml,scale division 1ml
4. Distillation flask:  125mL. It can meet requirements GB/T 6536 and ASTM D86
5. Thermometer:   (-2~300)ºC and (-2~400)ºC. Division value 1ºC
6. Flask support board:  SiC,diameter for each hole is φ32mm,φ38mm and φ50mm
7. Ambient temperature:   Room temperature~+35ºC
8. Relative humidity:   ≤85%
9. Maximum power consumption:  1100W
10.Dimension:   460mm×400mm×500mmSy-6536 Distillation Apparatus ASTM D86Sy-6536 Distillation Apparatus ASTM D86 Sy-6536 Distillation Apparatus ASTM D86Sy-6536 Distillation Apparatus ASTM D86


Summary
This instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.

I. Main technical features
1. This instrument is desktop structure. The design is reasonable. It is easy to use.
2. It adopts a special heating furnace to ensure the safety. The heating power can be adjusted steplessly.
3. The rising up and lowering down of distillation flask can be adjusted free by lifting device.Flexible and convenient to opearate.

II. Main technical specifications
1. Power supply:   AC(220±10%)V, 50Hz
2. Heating power:   1000W,stepless adjustment
3. Receiving cylinder:  100ml,scale division 1ml
4. Distillation flask:  125mL. It can meet requirements GB/T 6536 and ASTM D86
5. Thermometer:   (-2~300)ºC and (-2~400)ºC. Division value 1ºC
6. Flask support board:  SiC,diameter for each hole is φ32mm,φ38mm and φ50mm
7. Ambient temperature:   Room temperature~+35ºC
8. Relative humidity:   ≤85%
9. Maximum power consumption:  1100W
10.Dimension:   460mm×400mm×500mm
