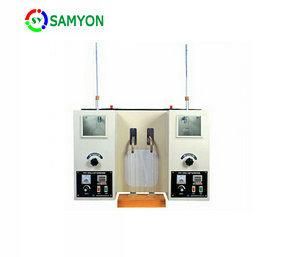

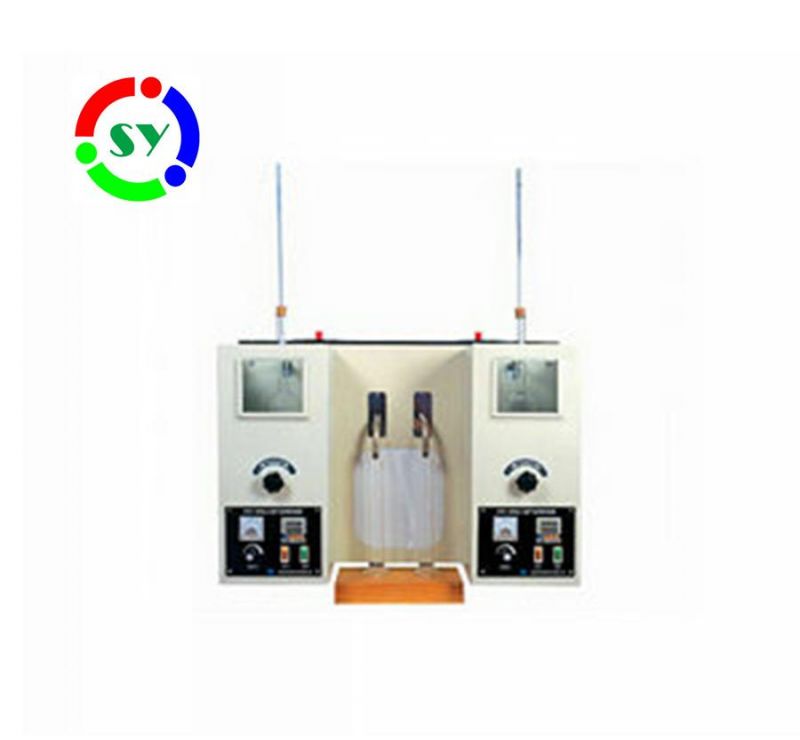

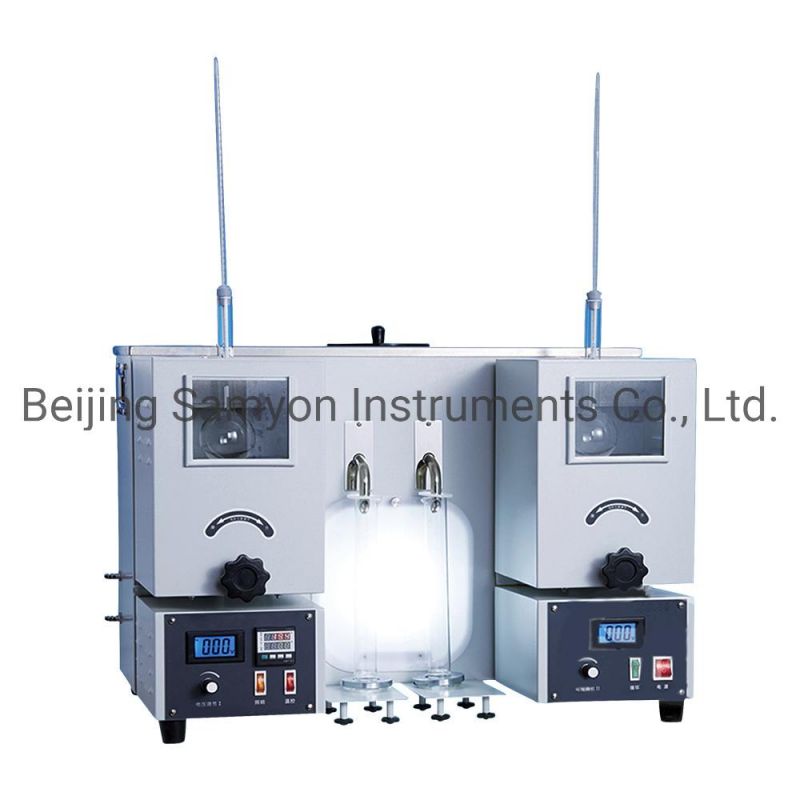

Sy-6536A Distillation Apparatus for Distillation Characteristics of Petroleum Products
Beijing Samyon Instruments Co., Ltd.- Heating Power：1000W*2, Continuously Adjustable
- Receiving Cylinder：100ml, Division Value 1ml.
- Distillation Flask：125ml
- Standard：ASTM D86 Standard
- Transport Package：Carton Case
- Specification：SGS
Base Info
- Model NO.：SY-6536A
- Trademark：SAMYON
- Origin：Cn
- HS Code：903180
- Production Capacity：100sets Per Month
Description
(1) Control range: (room temperature+10)ºC~60ºC
(2) Accuracy: ±0.5ºC
(3) Temperature display: LED
Note: The temperature control is to control the temperature of condensate in the condenser pipe.
1.Power supply: AC(220±10%)V, 50Hz
2.Heating power: 1000W×2, continuously adjustable.
3.Receiving cylinder: 100ml, division value 1ml.
4.Distillation flask: 125ml,meet the requirements of GB/T 6536 and ASTM D86
5.Thermometer: (-2~300)ºC and (-2~400)ºC, division value 1ºC
6.Flask support board: SiC, bore diameter φ32mm, φ38mm, φ50mm.
7.Temperature controller:
(1) Control range: (room temperature+10)ºC~60ºC
(2) Accuracy: ±0.5ºC
(3) Temperature display: LED
Note: The temperature control is to control the temperature of condensate in the condenser pipe.
8.Ambient temperature: ≤35ºC
9.Relative humidity: ≤85%
10.Maximum power consumption: 2200W
11.Dimension:760mm×520mm×500mm
