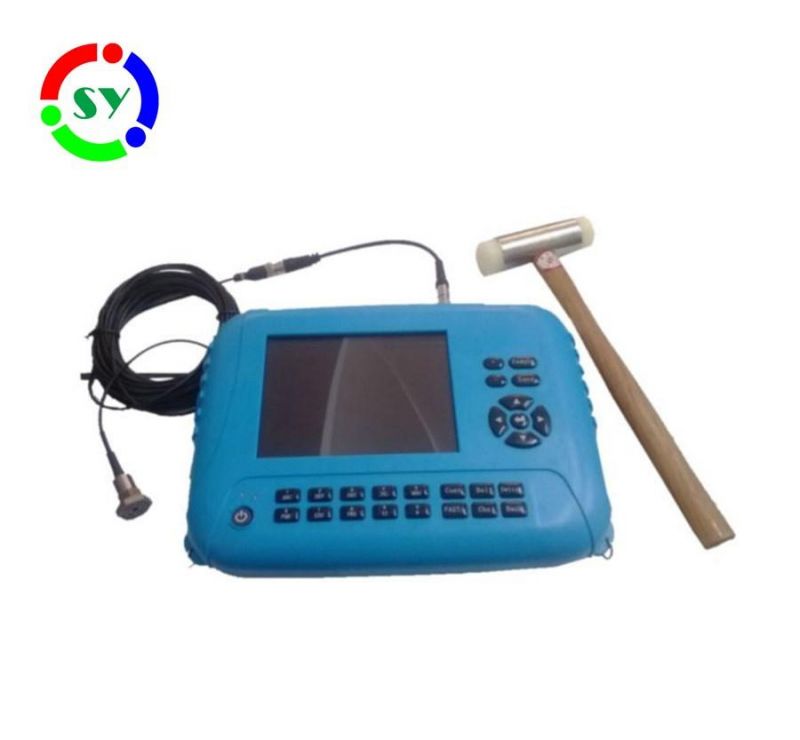

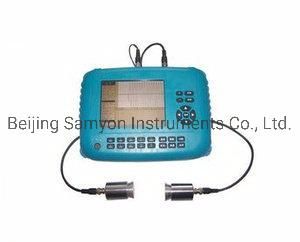

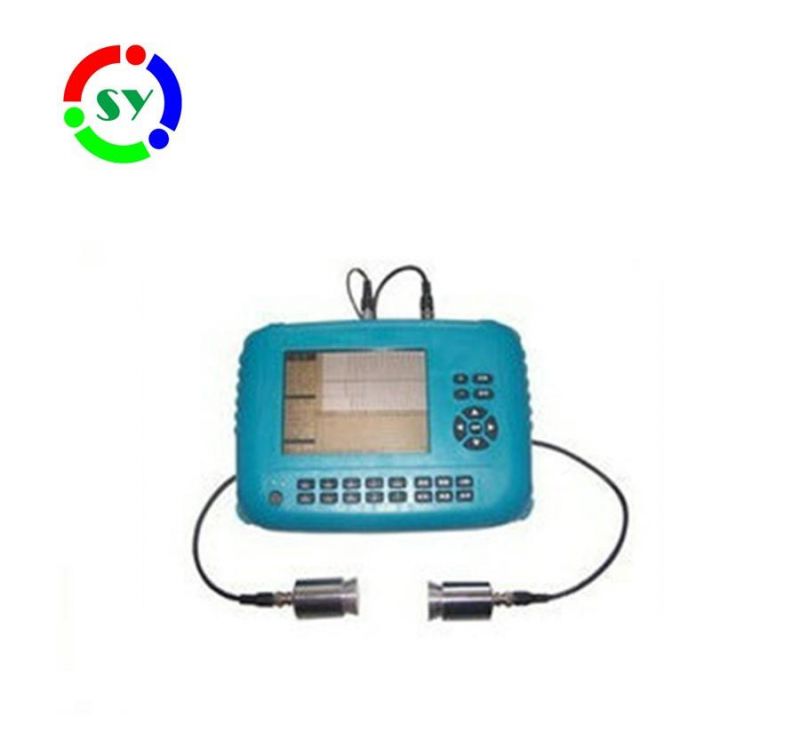

Concrete Strength Tester Ultrasonic Concrete Defect Tester

Beijing Samyon Instruments Co., Ltd.

Receive Channel：Two
Size：:260*185*60mm
Method：Ultrasonic Method
Transmission Mode：Continuous and External
Amplifier Bandwidth：10kHz to 300kHz
Sound Time Accuracy：0.05us

Base Info

Model NO.：SYC62
Transport Package：Carton Case
Specification：SGS
Trademark：SAMYON
Origin：Cn
HS Code：903180
Production Capacity：100sets Per Month

Description

ItemSpecificationMain control unitHigh-performance embedded computerInput methodkeyboardInterfaceUSBReceive channelTwoTransmission modeContinuous and externalReceive sensitivity≤30uvAmplifier bandwidth10kHz to 300kHzSound time accuracy0.05usDisplay640*480 high brightness TFT panelStorage1G(Interior)
2G(U-Disk)Max sample data length64kTrigger voltage65,125,250,500,1000(selectable)Amplifier gain82dBSample periods0.05us to 6.4us,8grade adjustableAmplifier resolution0.39%PowerInterior lithium battery works more than 6hoursExternal lithium battery works more than 6hours (Optional)DC 12V interfaceAC 100V-240V,50/60HZSize260*185*60mmWeight1.75kg(including the batteryTemperature-10ºC~ +40ºC Concrete Strength Tester Ultrasonic Concrete Defect Tester

Concrete Strength Tester Ultrasonic Concrete Defect Tester

Concrete Strength Tester Ultrasonic Concrete Defect Tester

Concrete Strength Tester Ultrasonic Concrete Defect Tester

Concrete Strength Tester Ultrasonic Concrete Defect Tester

Category

Chromatography Spectroscopy Instrument

Concentration Meter

Element Analyzer

Laser Particle Size Analyzer

Liquid Analyzer

Other Analysis Instruments

Sample Processor

Recommended

Sy-2801e1 Bituminous Equipments Instrument Penetrometer
1. Measuring range(0~600) penetration scale2. Resolution0.01mm3. Timing controller5s or 60s, can be setted at will,bias within ±0.1s4. Heating power200W5. Temperature control accuracy25ºC±0.1ºC (Note: The ambient temperature shall not exceed 20ºC)6. Temperature control m
Czf-6 Cement Composition Content Tester
Temperaturecontrolrange0-60ºC(adjustable)Temperaturecontrolaccuracy10-20±0.5ºCTimerequipmentlimits0-100minPowersupply220v50HZ300WTemperaturecontrolsystemelectroniccoolingAlarmpromptafterreachingthegiventemperatureAlarmpromptafterreachingthegiventimeTemperaturecontrolrange:0-60º
Cement Chloride Analyzer and Chloride Ion Analyzer
PowerAC220VHeatingpower1000W,Powerofairpump12WTemperaturecontrolaccuracy±0.2%Timingaccuracy±0.1%Distillingtime10-15minTemperaturesetting250-260ºCPower:AC220VHeatingpower:1000W,Powerofairpump:12WTemperaturecontrolaccuracy:±0.2%Timingaccuracy:±0.1%Distillingtime:10-15m
Sc80 Precise Color Difference Meter (colorimeter)
Basic Info. Model NO. SC80
Digital Color Difference Meter for Smooth Surface
Basic Info. Model NO. SC20
Cable Armoring Plastic Steel Belt
corrosionresistance,0.1mol/L,HCL,480hgrade8MoreinformationforCopolymercoatedsteeltape1.Propertities:EGEcopolymer coated steel tape consistsofasteeltapecoatedonbothsideswithanadherentethylenecopolymer.Thecopolymerexhibitsexcellentadhesiontothesteelsubstrateandhasthechemicalresistanceandgeneralcharact
Portable Vibration Meter EMT220 / Digital Vibrometer EMT220
Root Mean SquareVibration measurement scale:Displacement: 0.001~1.999 mm (peak to peak)Velocity: 0.01~19.99 cm/s (r. M. S. Value)Acceleration: 0.1~199.9 m/s2 (peak value)Vibration acceleration: ≤ 199.9 m/s2 (peak value)Temperature measurement scale:-20 ~ 400 centigrate (only for EMT220 with tempe

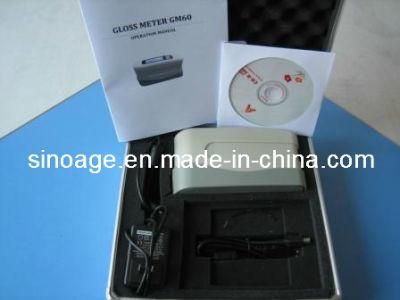

Digital Glossmeter Gm60 / Vancometer Gm60
