• Model NO.：SY-2801E1
• Trademark：SAMYON
• Origin：Cn
• HS Code：903180
• Production Capacity：100sets Per Month

1. Measuring range (0~600) penetration scale2. Resolution 0.01mm3. Timing controller5s or 60s, can be setted at will,bias within ±0.1s4. Heating power 200W5. Temperature control accuracy 25ºC±0.1ºC (Note: The ambient temperature shall not exceed 20ºC)6. Temperature control mode High accuracy digital temperature controller7. Constant temperature bath Hard glass bath8. Stirring Automatically stirred by magnetic stirrer9. Standard needle2.5g±0.05g10. Needle holderIt can be adjusted roughly and finely without measurable frication to make the tip aim the sample conveniently.11. Power supplyAC(220±10%)V, 50Hz12.Dimension280mm×350mm×700mm
1. Measuring range: (0~600) penetration scale
2. Resolution: 0.01mm
3. Timing controller: 5s or 60s, can be setted at will,bias within ±0.1s
4. Heating power: 200W
5. Temperature control accuracy: 25ºC±0.1ºC (Note: The ambient temperature shall not exceed 20ºC)
6. Temperature control mode: High accuracy digital temperature controller
7. Constant temperature bath: Hard glass bath
8. Stirring:  Automatically stirred by magnetic stirrer
9. Standard needle: 2.5g±0.05g
10. Needle holder: It can be adjusted roughly and finely without measurable frication to make the tip aim the sample conveniently.
11. Power supply:AC(220±10%)V, 50Hz
12. Dimension:280mm×350mm×700mm

III. Optional accessories

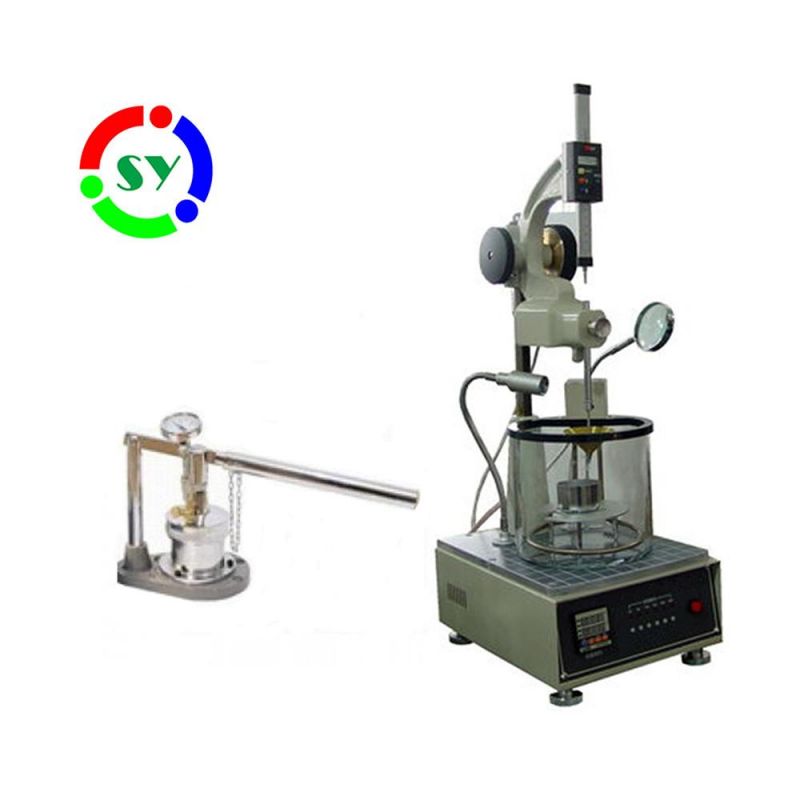

1. Grease worker: It is used in the tests which determine the cone penetration of lubricating grease (or petrolatum)
2. Standard cone: 102.5g±0.05g
3. Other cones:
1/2 scale cone,1/4 scale cone
