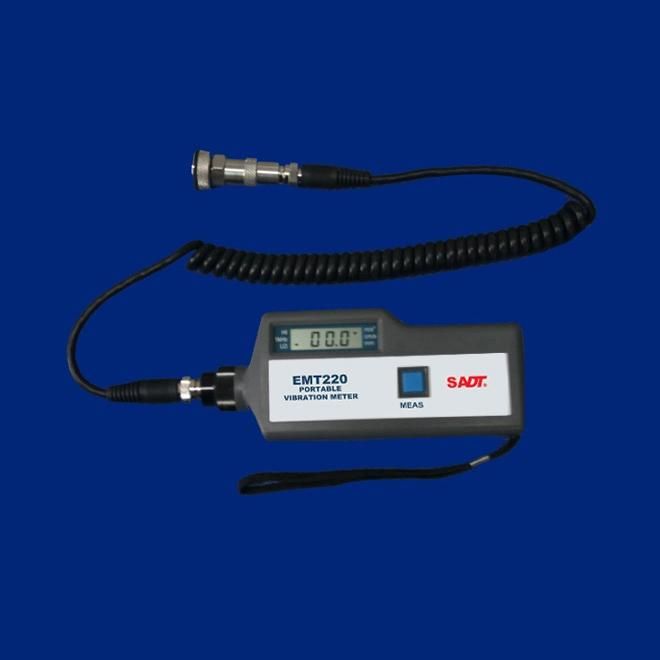

• Model NO.：EMT220
• HS Code：9031100090
• Production Capacity：50 Piece,Pieces , Week

Root Mean Square
Vibration measurement scale:
Displacement: 0.001~1.999 mm (peak to peak)
Velocity: 0.01~19.99 cm/s (r. M. S. Value)
Acceleration: 0.1~199.9 m/s2 (peak value)
Vibration acceleration: ≤ 199.9 m/s2 (peak value)
Temperature measurement scale:
-20 ~ 400 centigrate (only for EMT220 with temperature-measuring Function)
Accuracy:Vibration measurement: ± 5% Measurement value; ± 2 Digits
Temperature measurement: ± 1% Measurement value; ± 1 Digit
Vibration Frequency Range:
10 ~ 1 kHz (Normal type)
5 ~ 1 kHz (Low frequency type)
1 ~ 15 kHz (only at "HI" position for acceleration)
Display: Digits liquid crystal display
Sample period: 1 second
Vibration measurement value readout:
Displacement: Peak to peak value (r. M. S. × 2√ 2)
Velocity: Root mean square (r. M. S. )
Acceleration: Peak value (r. M. S. X√ 2)
Readout-keeping function:
Readout of vibration / temperature value can be remembered after
Releasing the Measure Key (Vibration / Temperature Switch)
Output Signal:
2V AC (peak value) (load resistance above 10 kΩ At full measuring scale)
Power supply:
6F22 9V laminated cell
Power on / off:
Battery life about 30 hours for continuous use
Power up when pressing Measure Key (Vibration / Temperature Switch)
Power automatically shut off after releasing the Measure Key for one minute
Operating condition:
Temperature: 0 ~ 50 centigrate
Humidity: ≤ 90% RH
Volume:
185 mm× 68 mm× 30 mm
Weight: 200g
