• Model NO.：T4220
• Output Signal Type：Digital Type
• Production Process：Integration
• Material：Stainless Steel
• IP Rating：IP68
• Customized：Customized
• Range：0~0.5m...5m...10m...200mH2o optional
• Signal Output：4-20mA;0-5V;0.5-4.5V;0-10V;
• Accuracy：0.5%F.S; 0.25%F.S
• Overload Pressure：2X F.S
• Voltage：12~36VDC; 5VDC;10VDC
• Transport Package：Carton Box
• Specification：Diameter 76mm x Height 129mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：3000pieces,Month

Basic Info.

Model NO. T4220 Output Signal Type Digital Type Production Process Integration Material Stainless Steel IP Rating IP68 Customized Customized Range 0~0.5m...5m...10m...200mH2o optional Signal Output 4-20mA;0-5V;0.5-4.5V;0-10V; Accuracy 0.5%F.S; 0.25%F.S Overload Pressure 2X F.S Voltage 12~36VDC; 5VDC;10VDC  Transport Package Carton Box Specification Diameter 76mm x Height 129mm Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 3000pieces/Month

Product Description

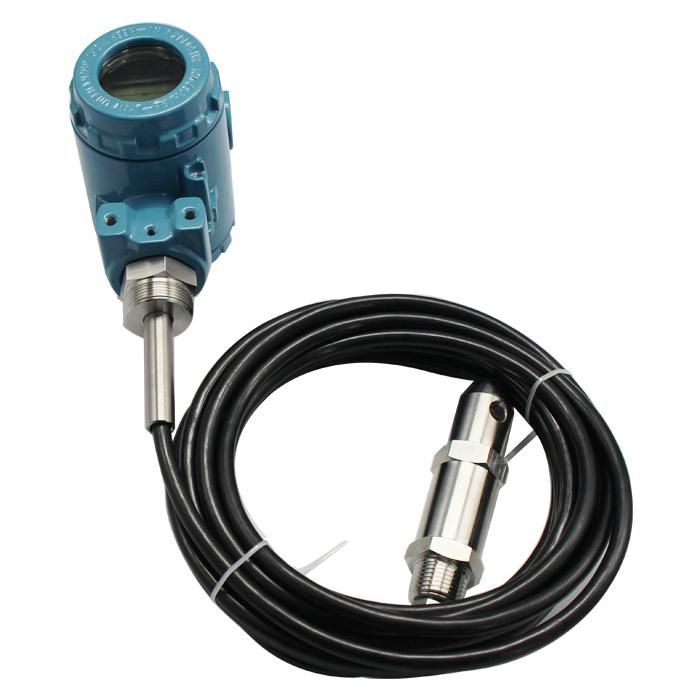

T4220-A  Input Type  Liquid Level Transmitter

Overview:
T4220-A Liquid level transmitter is a pressure transmitter produced by international advanced diffusion silicon sensing technology. Different sensing cores can be selected according to practical applications, and stainless steel sealing structure is adopted.It has a variety of signal output, widely measurement range, long-term stability, strong anticorrosion , It is suitable for precise measurement of fluid pressure in various places, such as petrochemical industry, environmental monitoring, water conservancy projects, oil tank and other places.

Product features and applications:
*Resistance to high temperature and condensation
*Good stability and reliability
* Can be put into liquid for a long time
*Anti - impact, long - term stability and reliability
*Widely used in environmental protection, water conservancy, water supply and other high temperature medium liquid level measurement



Specifications:

Range	0~0.5m...5m...10m...200mH2o
Output	4-20mA;0-5VDC, 0.5-4.5VDC
Accuracy	0.5%F.S
Overload pressure	1.5x F.S
Nonlinearity	0.2%F.S
Repeatability	0.2%F.S
Voltage	12~36VDC
Operating temperature	-20~100ºC
Temperature compensation	-10~75ºC
Product material	Stainless steel

FAQ:
1.Are you trading company or manufacturer ?
We are factory and we offer OEM services.


2.How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

3.Does your price is competitive?
We make sure to offer you the best quality with competitive price.

4.What is your terms of payment?
We accept 100% T/T in advance,balance before shipment.
 .
5.When I receive it after pay?
Normal models can be delivered with 3-7days,
please contact us to check transport time to your address.

6.How to deliver?
We can send by Express, by Sea and by Air.

7.Is will be broken during transport?
Please do not worry, we do standard export package.

8.What should I do if I do not know how to use?
User manual will be sent together, you can also contact us with more technological support.
