• Model NO.：CS4773D
• Certification：RoHS, CE, ISO9001
• Type：Concentration Meter, Do Electrode
• Function：Over Voltage Protection, Overheat Protection, Short Circuit Protection, Water quality testing and analysis
• Materials：Stainless Steel
• Power：12VDC
• Output：RS485 MODBUS RTU
• Measure methods：Polarography
• Housing material：POM+ Stainless steel
• Waterproof grade：IP68
• Measurement range：0-20mg,L
• Accuracy：+,-1%F.S
• Temperature compensation：NTC10K
• Installation thread：NPT3,4 inch
• Pressure range：0.3MPa
• Transport Package：1 PCS,Carton
• Specification：POM+ Stainless Steel
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：3000PCS,Month
• Package size per unit product：27.00cm * 19.00cm * 17.00cm
• Gross weight per unit product：2.000kg
• Lead Time：7 days (1 - 50 Pieces) 15 days (51 - 200 Pieces) 30 days (201 - 500 Pieces) To be negotiated ( > 500 Pieces)

Basic Info.

Model NO. CS4773D Certification RoHS, CE, ISO9001 Type Concentration Meter, Do Electrode Function Over Voltage Protection, Overheat Protection, Short Circuit Protection, Water quality testing and analysis Materials Stainless Steel Power 12VDC Output RS485 MODBUS RTU Measure methods Polarography Housing material POM+ Stainless steel Waterproof grade IP68 Measurement range 0-20mg/L Accuracy +/-1%F.S Temperature compensation NTC10K Installation thread NPT3/4 inch Pressure range 0.3MPa Transport Package 1 PCS/Carton Specification POM+ Stainless Steel Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 27.00cm * 19.00cm * 17.00cm Gross weight per unit product 2.000kg Lead Time 7 days (1 - 50 Pieces)
15 days (51 - 200 Pieces)
30 days (201 - 500 Pieces)
To be negotiated ( > 500 Pieces)

Product Description

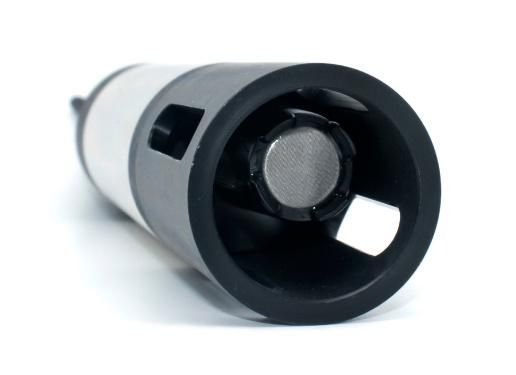

 CS4773D Digital Polargraphy Dissolved Oxygen Sensor



Dissolved oxygen sensor is a new generation of intelligent water quality detection digital sensor independently developed by twinno. Data viewing, debugging and maintenance can be carried out through mobile APP or computer. Dissolved oxygen on-line detector has the advantages of simple maintenance, high stability, superior repeatability and multi-function. It can accurately measure DO value and temperature value in solution. Dissolved oxygen sensor is widely used in wastewater treatment, purified water, circulating water, boiler water and other systems, as well as electronics, aquaculture, food, printing and dyeing, electroplating, pharmaceutical, fermentation, chemical aquaculture and tap water and other solutions of the continuous monitoring of dissolved oxygen value.

The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The sea water version can also be plated with titanium, which also performs well under strong corrosion.


Dissolved oxygen sensor based on the latest polarographic analysis technology, the steel gauze structure of integrated silicone rubber permeable film as a permeable film, which has the advantages of collision resistance, corrosion resistance, high temperature resistance, no deformation, small maintenance and so on.It is specially used for measuring PPB dissolved oxygen of boiler feed water and condensate water.

PPM level dissolved oxygen sensor based on the latest polarographic analysis technology, using breathable film, film head for integrated production, easy maintenance and replacement. It is suitable for wastewater, sewage treatment, aquaculture and other fields.





Model NO.	CS4773D
Power/Outlet	9~36VDC/RS485 MODBUS RTU
Measurement methods	Polarography
Housing material	POM+ Stainless Steel
Waterproof grade	IP68
Measurement range	0-20mg/L
Accuracy	±1%F.S
Pressure range	≤0.3Mpa
Temperature compensation	NTC10K
Temperature range	0-50ºC
Measuring/Storage Temperature	0-45ºC
Calibration	Anaerobic water calibration and air calibration
Connection methods	4 core cable
Cable length	Standard 10m cable, can be extended to 100m
Installation thread	Upper NPT3/4''+1 inch tail thread
Application	General application, river, lake, drink water, environmental protection, etc.

After Sales Service

* The warranty period is 12 months from commissioning acceptance date on. In addition, we supply 1 year warranty and lifelong free technical guiding and training.
* We guarantee the maintenance time no more than 7 working days and response time within 3 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
